Part Number
Manufacturer
Description
Unit Price
In Stock

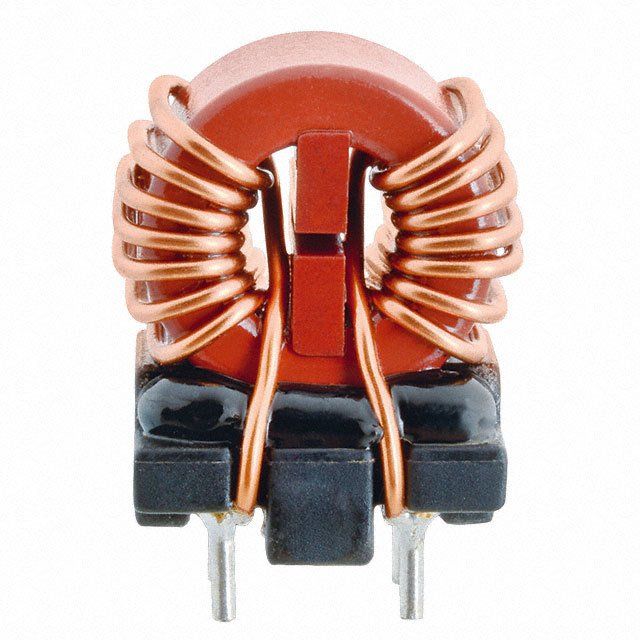

7448262510
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 4.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.732" L x 0.925" W (44.00mm x 23.50mm)
Height (Max) : 1.693" (43.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 4.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.732" L x 0.925" W (44.00mm x 23.50mm)
Height (Max) : 1.693" (43.00mm)
Package / Case : Vertical, 4 PC Pin
0
36 in stock

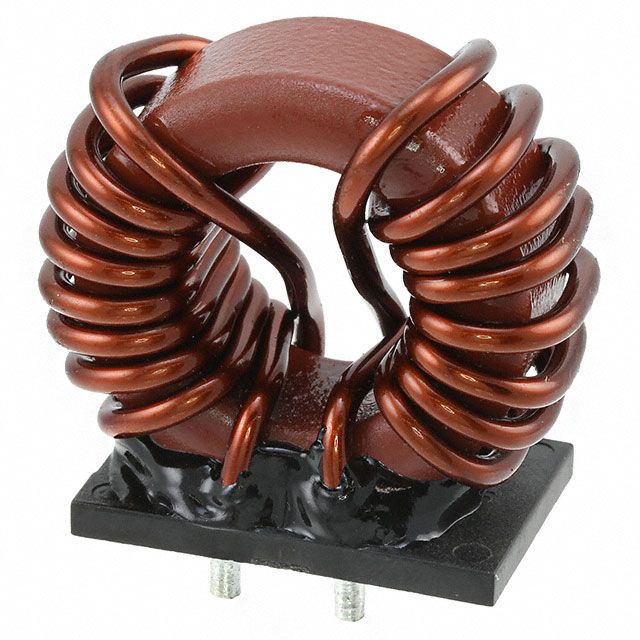

7448263505
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 500µH @ 100kHz
Current Rating (Max) : 35A
DC Resistance (DCR) (Max) : 2.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.850" L x 0.925" W (47.00mm x 23.50mm)
Height (Max) : 1.693" (43.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 500µH @ 100kHz
Current Rating (Max) : 35A
DC Resistance (DCR) (Max) : 2.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.850" L x 0.925" W (47.00mm x 23.50mm)
Height (Max) : 1.693" (43.00mm)
Package / Case : Vertical, 4 PC Pin
0
20 in stock
744830007215
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 700µH @ 10kHz
Current Rating (Max) : 21.5A
DC Resistance (DCR) (Max) : 3.8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.673" Dia x 0.906" W (42.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 700µH @ 10kHz
Current Rating (Max) : 21.5A
DC Resistance (DCR) (Max) : 3.8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.673" Dia x 0.906" W (42.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
0
26 in stock
744830010185
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 18.5A
DC Resistance (DCR) (Max) : 5.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.634" Dia x 0.906" W (41.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 18.5A
DC Resistance (DCR) (Max) : 5.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.634" Dia x 0.906" W (41.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
0
7 in stock
744830017132
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.7mH @ 10kHz
Current Rating (Max) : 13.2A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.575" Dia x 0.906" W (40.00mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.7mH @ 10kHz
Current Rating (Max) : 13.2A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.575" Dia x 0.906" W (40.00mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
0
9 in stock
744830025103
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 10kHz
Current Rating (Max) : 10.3A
DC Resistance (DCR) (Max) : 18 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.555" Dia x 0.906" W (39.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 10kHz
Current Rating (Max) : 10.3A
DC Resistance (DCR) (Max) : 18 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.555" Dia x 0.906" W (39.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
0
7 in stock
744830039080
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.9mH @ 10kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 31 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.555" Dia x 0.906" W (39.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.9mH @ 10kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 31 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.555" Dia x 0.906" W (39.50mm x 23.00mm)
Height (Max) : 1.555" (39.50mm)
Package / Case : Vertical, 4 PC Pin
0
205 in stock
744831010205
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 20.5A
DC Resistance (DCR) (Max) : 5.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.831" Dia x 1.102" W (46.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 20.5A
DC Resistance (DCR) (Max) : 5.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.831" Dia x 1.102" W (46.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
0
15 in stock

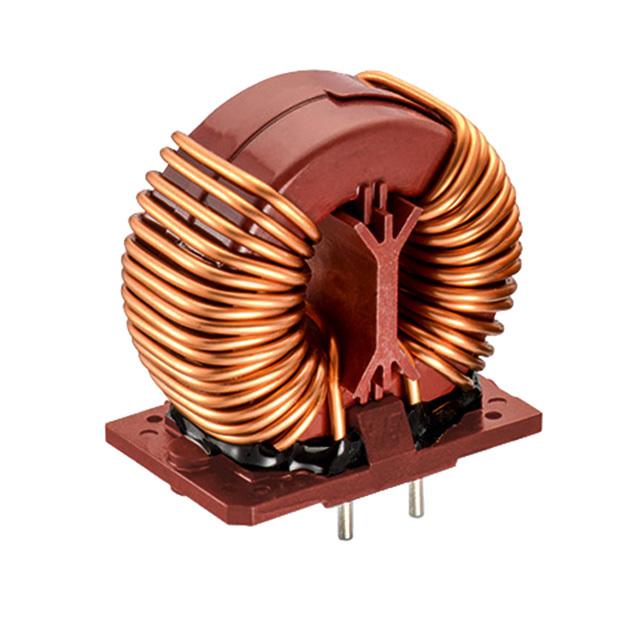

744831016164
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 10kHz
Current Rating (Max) : 16.4A
DC Resistance (DCR) (Max) : 8.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.831" Dia x 1.102" W (46.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 10kHz
Current Rating (Max) : 16.4A
DC Resistance (DCR) (Max) : 8.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.831" Dia x 1.102" W (46.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
744831020133
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 10kHz
Current Rating (Max) : 13.3A
DC Resistance (DCR) (Max) : 13 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.791" Dia x 1.102" W (45.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 10kHz
Current Rating (Max) : 13.3A
DC Resistance (DCR) (Max) : 13 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.791" Dia x 1.102" W (45.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
0
7 in stock
744831034090
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.4mH @ 10kHz
Current Rating (Max) : 9A
DC Resistance (DCR) (Max) : 27 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.752" Dia x 1.102" W (44.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pad
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.4mH @ 10kHz
Current Rating (Max) : 9A
DC Resistance (DCR) (Max) : 27 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.752" Dia x 1.102" W (44.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pad
0
40 in stock
744831047068
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 10kHz
Current Rating (Max) : 6.8A
DC Resistance (DCR) (Max) : 44 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.752" Dia x 1.102" W (44.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : WE-CMB HV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 10kHz
Current Rating (Max) : 6.8A
DC Resistance (DCR) (Max) : 44 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.752" Dia x 1.102" W (44.50mm x 28.00mm)
Height (Max) : 1.752" (44.50mm)
Package / Case : Vertical, 4 PC Pin
0
50 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
