- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
744834101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 12.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 12.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
0
100 in stock
744834405
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
0
527 in stock
744834407
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 7mH @ 10kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 7mH @ 10kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
0
35 in stock

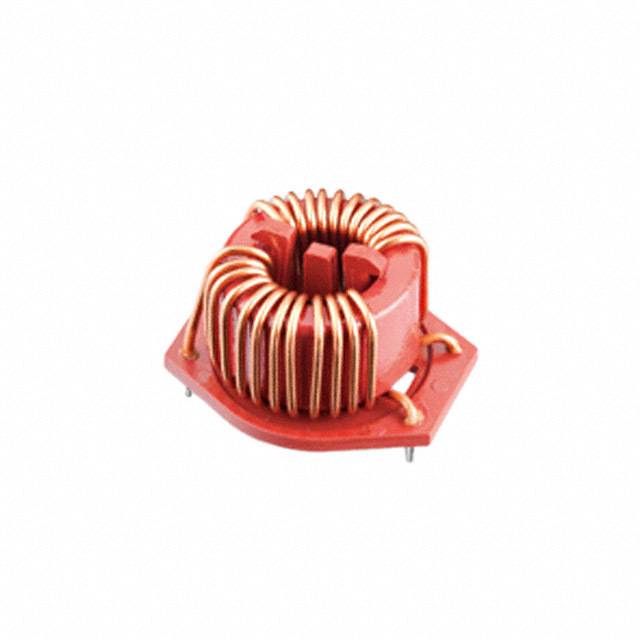

744834433
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 37 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 37 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
0
40 in stock
744834622
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 22 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : WE-CMBH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 22 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) : 0.866" (22.00mm)
Package / Case : Horizontal, 4 PC Pin
0
402 in stock
744835034160
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.4mH @ 10kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.4mH @ 10kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
5 in stock

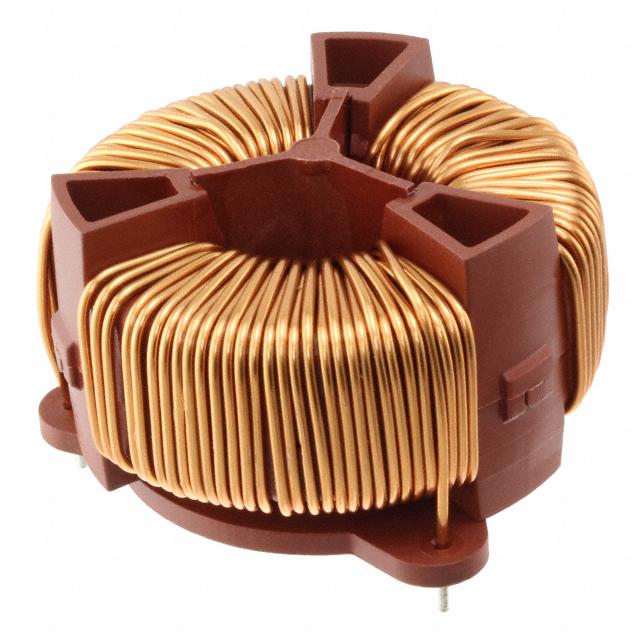

744835050135
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 13.5A
DC Resistance (DCR) (Max) : 23 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 13.5A
DC Resistance (DCR) (Max) : 23 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
12 in stock

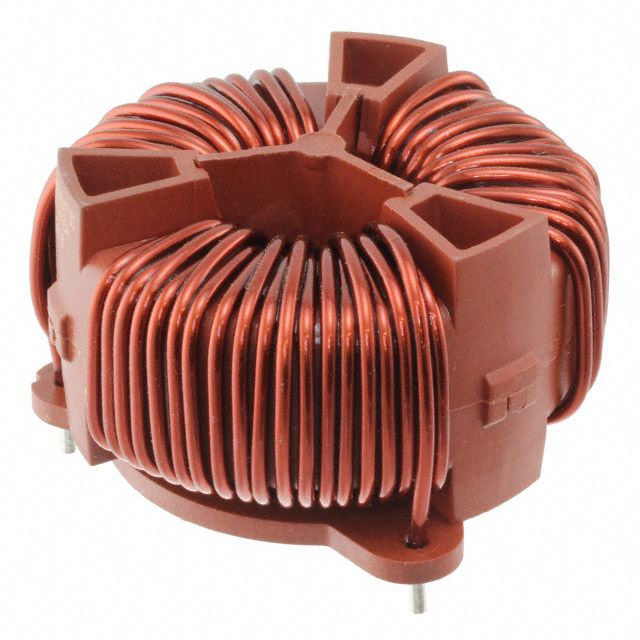

744835090095
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 9mH @ 10kHz
Current Rating (Max) : 9.5A
DC Resistance (DCR) (Max) : 47 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 9mH @ 10kHz
Current Rating (Max) : 9.5A
DC Resistance (DCR) (Max) : 47 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
9 in stock
744835150072
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 7.2A
DC Resistance (DCR) (Max) : 85 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 7.2A
DC Resistance (DCR) (Max) : 85 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
8 in stock
744837002460
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 10kHz
Current Rating (Max) : 46A
DC Resistance (DCR) (Max) : 1.6 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 10kHz
Current Rating (Max) : 46A
DC Resistance (DCR) (Max) : 1.6 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
2 in stock
744837006400
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 600µH @ 10kHz
Current Rating (Max) : 40A
DC Resistance (DCR) (Max) : 3.2 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 600µH @ 10kHz
Current Rating (Max) : 40A
DC Resistance (DCR) (Max) : 3.2 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
11 in stock
744837010290
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 29A
DC Resistance (DCR) (Max) : 5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : Tray
Series : WE-TPBHV
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 29A
DC Resistance (DCR) (Max) : 5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 760V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" Dia (70.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin
0
4 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
