Part Number

Manufacturer

Description

Unit Price

In Stock

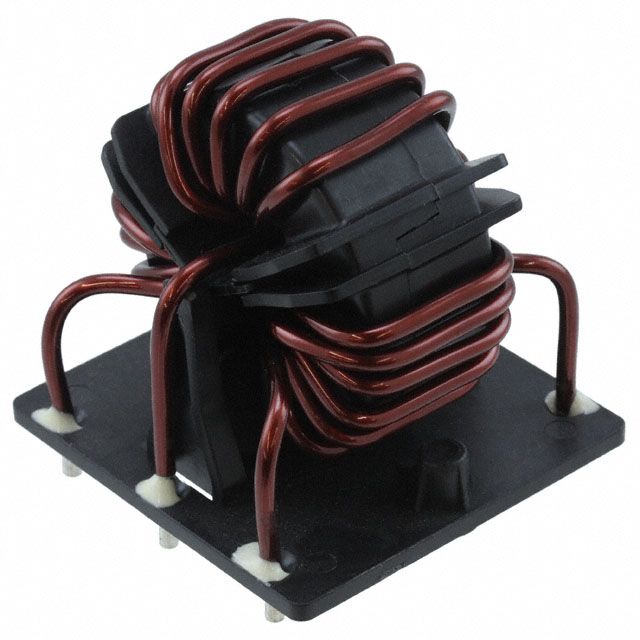

RB6532-25-0M5

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 470µH @ 400Hz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 2.4 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.283" L x 2.165" W (58.00mm x 55.00mm)
Height (Max) : 2.283" (58.00mm)
Package / Case : Vertical, 6 PC Pin

14 in stock

RB6532-36-0M4

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 420µH @ 400Hz
Current Rating (Max) : 36A
DC Resistance (DCR) (Max) : 4.2 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.441" L x 2.283" W (62.00mm x 58.00mm)
Height (Max) : 2.756" (70.00mm)
Package / Case : Vertical, 6 PC Pin

429 in stock

RB6532-50-0M2

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 180µH @ 400Hz
Current Rating (Max) : 50A
DC Resistance (DCR) (Max) : 0.8 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.441" L x 2.283" W (62.00mm x 58.00mm)
Height (Max) : 2.756" (70.00mm)
Package / Case : Vertical, 6 PC Pin

19 in stock

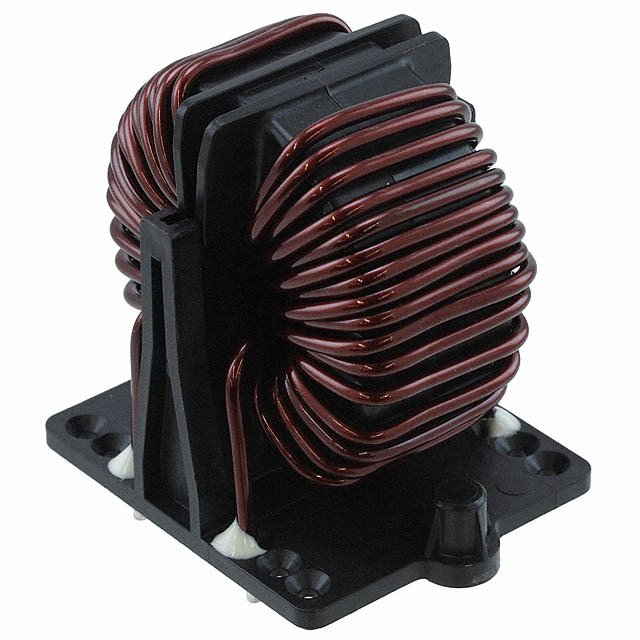

RB8522-16-3M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 400Hz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 8.4 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.709" W (50.00mm x 43.40mm)
Height (Max) : 2.283" (58.00mm)
Package / Case : Vertical, 8 PC Pin

210 in stock

RB8522-25-2M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 1kHz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 4.2 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.165" L x 1.807" W (55.00mm x 45.90mm)
Height (Max) : 2.677" (68.00mm)
Package / Case : Vertical, 8 PC Pin

64 in stock

RB8522-36-1M5

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 400Hz
Current Rating (Max) : 36A
DC Resistance (DCR) (Max) : 3 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 1.988" W (60.00mm x 50.50mm)
Height (Max) : 3.150" (80.00mm)
Package / Case : Vertical, 8 PC Pin

158 in stock

RB8522-50-0M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 750µH @ 400Hz
Current Rating (Max) : 50A
DC Resistance (DCR) (Max) : 1.7 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 1.988" W (60.00mm x 50.50mm)
Height (Max) : 3.150" (80.00mm)
Package / Case : Vertical, 8 PC Pin

21 in stock

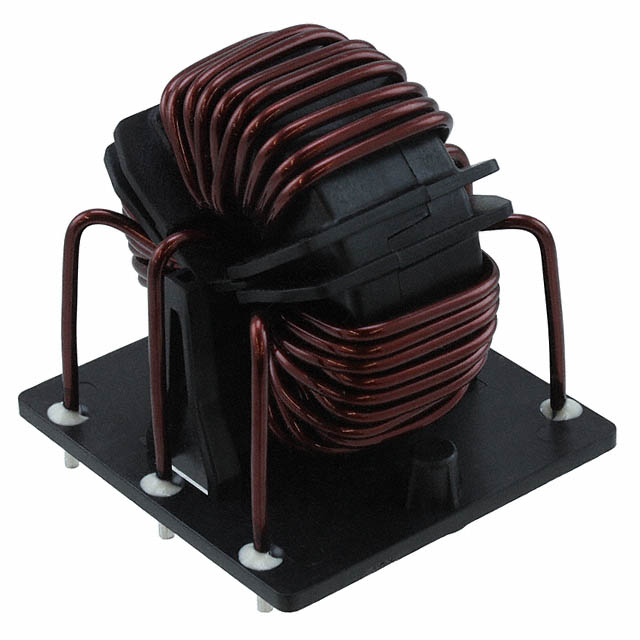

RB8532-16-1M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1.3mH @ 1kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 5.7 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.283" L x 2.165" W (58.00mm x 55.00mm)
Height (Max) : 2.283" (58.00mm)
Package / Case : Vertical, 6 PC Pin

68 in stock

RB8532-25-0M9

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 940µH @ 400Hz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 3 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.441" L x 2.283" W (62.00mm x 58.00mm)
Height (Max) : 2.756" (70.00mm)
Package / Case : Vertical, 6 PC Pin

100 in stock

RB8532-36-0M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 830µH @ 400Hz
Current Rating (Max) : 36A
DC Resistance (DCR) (Max) : 2.3 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.992" L x 2.480" W (76.00mm x 63.00mm)
Height (Max) : 3.228" (82.00mm)
Package / Case : Vertical, 6 PC Pin

485 in stock

RB8532-50-0M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 330µH @ 1kHz
Current Rating (Max) : 50A
DC Resistance (DCR) (Max) : 1.2 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.992" L x 2.480" W (76.00mm x 63.00mm)
Height (Max) : 3.228" (82.00mm)
Package / Case : Vertical, 6 PC Pin

39 in stock

RD5122-10-6M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 24.25 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin

33 in stock
