- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
RD5122-16-2M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 400Hz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 9.5 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 400Hz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 9.5 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
0
218 in stock
RD5122-6-9M6
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 9.6mH @ 1kHz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 52.55 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 9.6mH @ 1kHz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 52.55 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
0
35 in stock
RD5132-10-3M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 17.6 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 17.6 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
0
385 in stock
RD5132-16-1M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 400Hz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 6.9 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 400Hz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 6.9 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
0
29 in stock
RD5132-6-5M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 400Hz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 38 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 400Hz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 38 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
0
14 in stock
RD6127-10-9M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 9mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 25.9 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 9mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 25.9 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
0
29 in stock

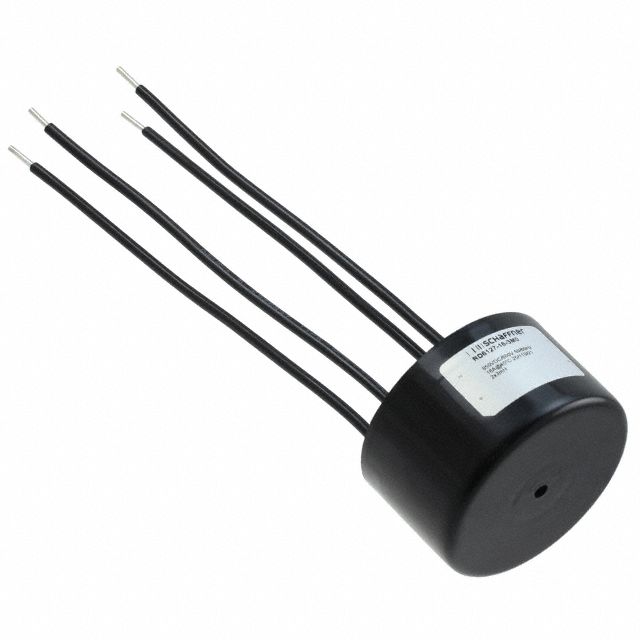

RD6127-16-3M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 1kHz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 10.9 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 1kHz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 10.9 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
0
1411 in stock
RD6127-6-15M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 400Hz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 66.65 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 400Hz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 66.65 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : Horizontal, 4 PC Pin
0
12 in stock
RD6137-10-4M5
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 18.35 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 400Hz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 18.35 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
0
14 in stock
RD6137-16-1M5
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 400Hz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 8.3 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 400Hz
Current Rating (Max) : 16A (Typ)
DC Resistance (DCR) (Max) : 8.3 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
0
14 in stock
RD6137-6-7M5
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 7.5mH @ 400Hz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 49 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 7.5mH @ 400Hz
Current Rating (Max) : 6A (Typ)
DC Resistance (DCR) (Max) : 49 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.362" L x 2.362" W (60.00mm x 60.00mm)
Height (Max) : 1.398" (35.50mm)
Package / Case : -
0
30 in stock

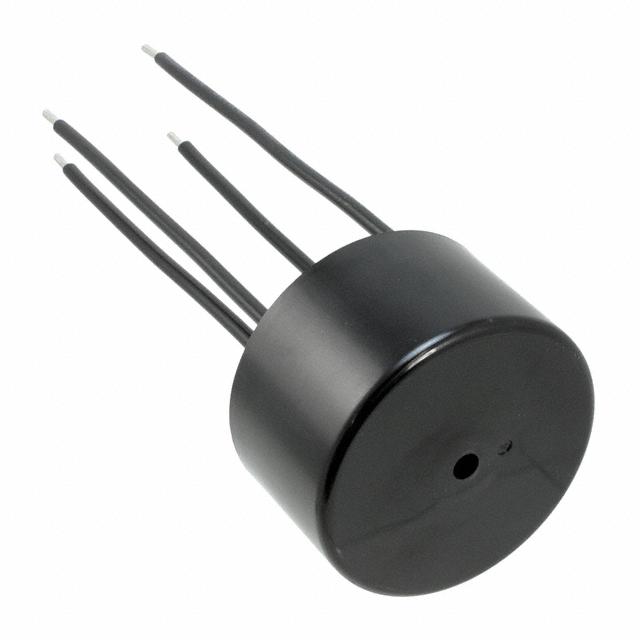

RD7127-10-14M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 14mH @ 1kHz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 33.5 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" L x 2.756" W (70.00mm x 70.00mm)
Height (Max) : 1.594" (40.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : RD
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 14mH @ 1kHz
Current Rating (Max) : 10A (Typ)
DC Resistance (DCR) (Max) : 33.5 mOhm (Typ)
Voltage Rating - DC : 850V
Voltage Rating - AC : 600V
Operating Temperature : -25°C ~ 110°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.756" L x 2.756" W (70.00mm x 70.00mm)
Height (Max) : 1.594" (40.50mm)
Package / Case : Horizontal, 4 PC Pin
0
10 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
