Part Number

Manufacturer

Description

Unit Price

In Stock

RN102-0.3-02-12M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.1 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

2541 in stock

RN102-0.3-02-22M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 22mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.3 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

1739 in stock

RN102-0.6-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.4mH @ 1kHz
Current Rating (Max) : 600mA (Typ)
DC Resistance (DCR) (Max) : 385 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

2800 in stock

RN102-0.6-02-4M4

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.4mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 380 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

3033 in stock

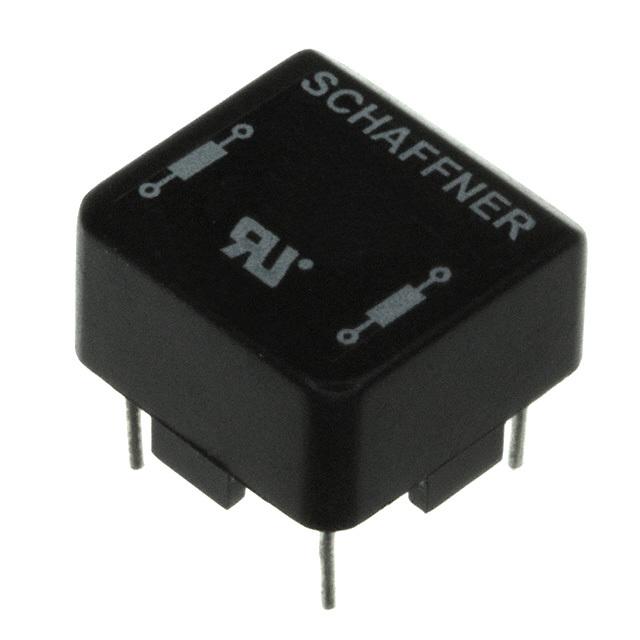

RN102-1.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 10kHz
Current Rating (Max) : 1.5A (Typ)
DC Resistance (DCR) (Max) : 100 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN102-1.5-02-1M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 94 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

1228 in stock

RN102-1-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 205 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN102-1-02-3M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 210 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

3921 in stock

RN102-2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.1mH @ 10kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN102-2-02-1M1

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.1mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) : 0.366" (9.30mm)
Package / Case : Horizontal, 4 PC Pin

3654 in stock

RN112-0.4-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 1kHz
Current Rating (Max) : 400mA (Typ)
DC Resistance (DCR) (Max) : 1.67 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

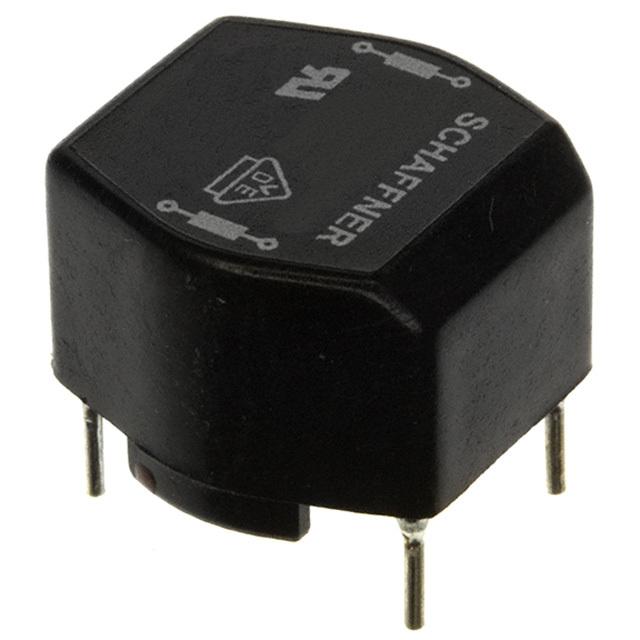

RN112-0.4-02-27M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.4 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

309 in stock
