Part Number

Manufacturer

Description

Unit Price

In Stock

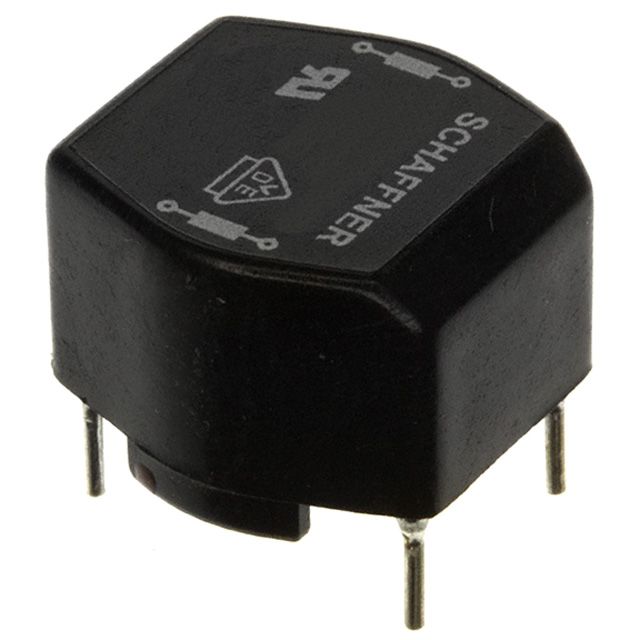

RN112-0.4-02-39M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.5 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

12209 in stock

RN112-0.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 500mA (Typ)
DC Resistance (DCR) (Max) : 1.25 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

118 in stock

RN112-0.5-02-15M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 700 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

474 in stock

RN112-0.5-02-18M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.1 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

498 in stock

RN112-0.5-02-27M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.2 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

6097 in stock

RN112-0.6-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 1kHz
Current Rating (Max) : 600mA (Typ)
DC Resistance (DCR) (Max) : 465 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN112-0.6-02-15M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 490 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

1182 in stock

RN112-0.8-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 800mA (Typ)
DC Resistance (DCR) (Max) : 370 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN112-0.8-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 380 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

5997 in stock

RN112-1.2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 1kHz
Current Rating (Max) : 1.2A (Typ)
DC Resistance (DCR) (Max) : 245 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN112-1.2-02-6M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 250 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

1776 in stock

RN112-1.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 1kHz
Current Rating (Max) : 1.5A (Typ)
DC Resistance (DCR) (Max) : 135 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock
