Part Number

Manufacturer

Description

Unit Price

In Stock

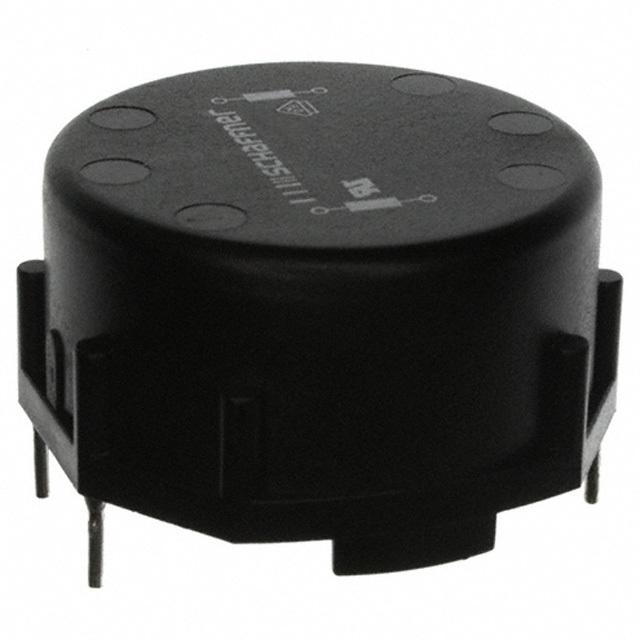

RN152-8-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.7mH @ 1kHz
Current Rating (Max) : 8A (Typ)
DC Resistance (DCR) (Max) : 22 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.646" W (43.00mm x 41.80mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN152-8-02-2M7

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.7mH @ 10kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 22 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.646" W (43.00mm x 41.80mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Horizontal, 4 PC Pin

73 in stock

RN202-0.3-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12mH @ 1kHz
Current Rating (Max) : 300mA (Typ)
DC Resistance (DCR) (Max) : 1.275 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN202-0.3-02-12M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.1 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

21000 in stock

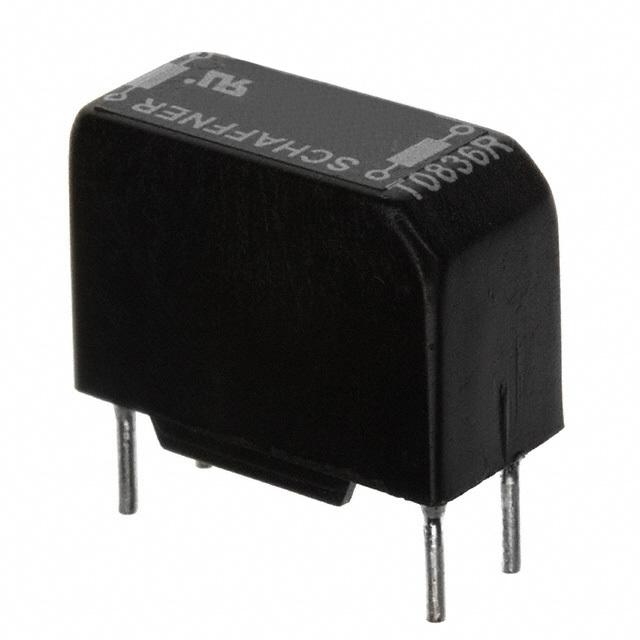

RN202-0.3-02-22M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 22mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.3 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

760 in stock

RN202-0.6-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.4mH @ 10kHz
Current Rating (Max) : 600mA (Typ)
DC Resistance (DCR) (Max) : 385 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN202-0.6-02-4M4

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.4mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 380 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

1396 in stock

RN202-1.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 1kHz
Current Rating (Max) : 1.5A (Typ)
DC Resistance (DCR) (Max) : 100 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN202-1.5-02-1M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 94 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

4125 in stock

RN202-1-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 10kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 205 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN202-1-02-3M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 210 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

4302 in stock

RN202-2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.1mH @ 1kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

100 in stock
