RN202-2-02-1M1

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.1mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) : 0.543" (13.80mm)
Package / Case : Vertical, 4 PC Pin

1934 in stock

RN204-0.3-02-12M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 960 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max) : 0.575" (14.61mm)
Package / Case : Vertical, 4 PC Pin

1000 in stock

RN204-0.3-02-22M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 22mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.3 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max) : 0.575" (14.61mm)
Package / Case : Vertical, 4 PC Pin

695 in stock

RN204-0.6-02-4M4

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.4mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 350 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max) : 0.575" (14.61mm)
Package / Case : Vertical, 4 PC Pin

493 in stock

RN204-1.5-02-1M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.6mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 96 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max) : 0.575" (14.61mm)
Package / Case : Vertical, 4 PC Pin

375 in stock

RN204-1-02-3M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 192 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max) : 0.575" (14.61mm)
Package / Case : Vertical, 4 PC Pin

338 in stock

RN204-2-02-1M1

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.1mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 57 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max) : 0.575" (14.61mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

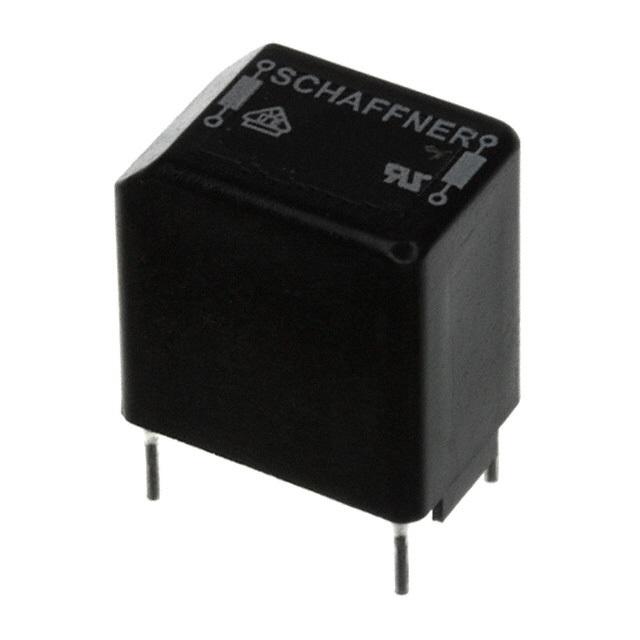

RN212-0.4-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 1kHz
Current Rating (Max) : 400mA (Typ)
DC Resistance (DCR) (Max) : 1.67 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN212-0.4-02-27M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.4 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

490 in stock

RN212-0.4-02-39M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.5 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

832 in stock

RN212-0.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 1kHz
Current Rating (Max) : 500mA (Typ)
DC Resistance (DCR) (Max) : 1.25 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN212-0.5-02-15M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 700 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

221 in stock
