- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
TCM0605S-120-2P-T201
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TCM-S
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 12 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max) : 0.014" (0.35mm)
Package / Case : 0202 (0505 Metric), 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TCM-S
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 12 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max) : 0.014" (0.35mm)
Package / Case : 0202 (0505 Metric), 4 PC Pad
0
7683 in stock

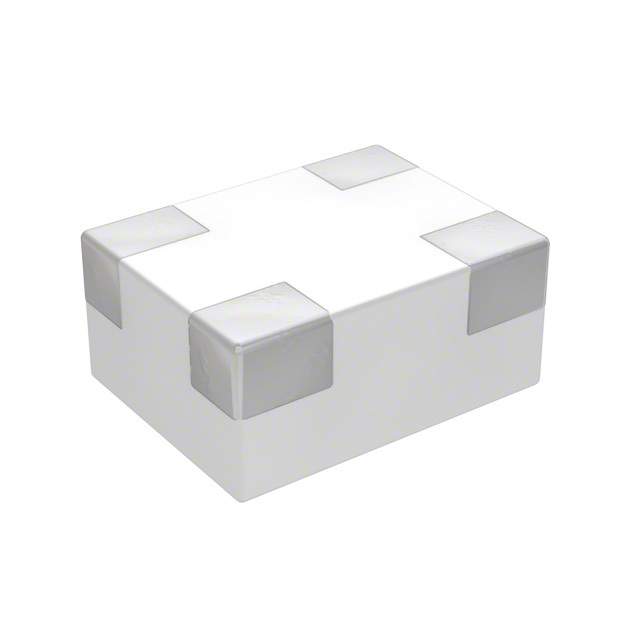

TCM0605S-350-2P-T201
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TCM-S
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.7 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max) : 0.014" (0.35mm)
Package / Case : 0202 (0505 Metric), 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TCM-S
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.7 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max) : 0.014" (0.35mm)
Package / Case : 0202 (0505 Metric), 4 PC Pad
0
8548 in stock

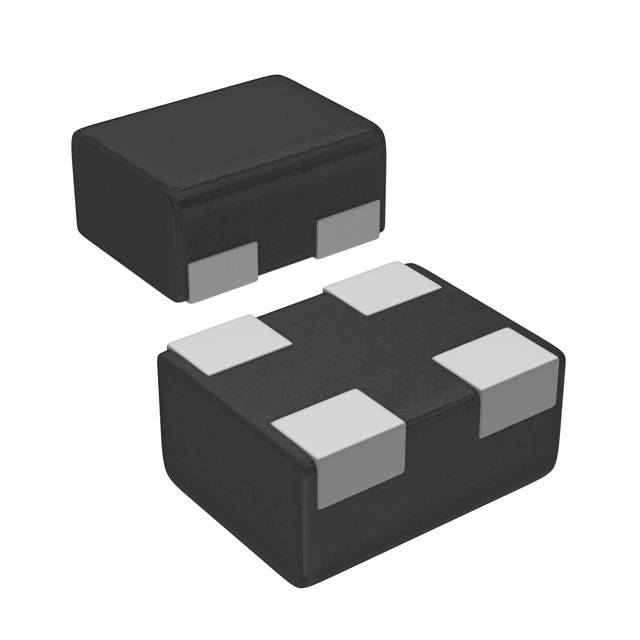

TCM0806G-151-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 150 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 150 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
100 in stock
TCM0806G-350-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.15 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.15 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
100 in stock
TCM0806G-650-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
100 in stock
TCM0806G-900-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.7 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.7 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
100 in stock
TCM0806S-120-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-S
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 12 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-S
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 12 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
100 in stock
TCM0806S-350-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-S
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCM-S
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
10000 in stock
TCM0806T-060-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-T
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 6 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.4 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-T
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 6 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.4 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 4 Lead
0
100 in stock
TCM0906C-400-3P-T200
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TCM-C
Part Status : Active
Filter Type : Signal Line
Number of Lines : 3
Impedance @ Frequency : 40 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 3 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.034" L x 0.026" W (0.86mm x 0.66mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 6 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TCM-C
Part Status : Active
Filter Type : Signal Line
Number of Lines : 3
Impedance @ Frequency : 40 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 3 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.034" L x 0.026" W (0.86mm x 0.66mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0302 (0806 Metric), 6 Lead
0
19000 in stock
TCM1005-350-2P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.15 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0402 (1005 Metric), 4 PC Pad
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.15 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0402 (1005 Metric), 4 PC Pad
0
100 in stock
TCM1005-650-2P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0402 (1005 Metric), 4 PC Pad
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0402 (1005 Metric), 4 PC Pad
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
