TCM1005-900-2P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0402 (1005 Metric), 4 PC Pad
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) : 0.018" (0.45mm)
Package / Case : 0402 (1005 Metric), 4 PC Pad
0
100 in stock
TCM1210-201-2P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.7 Ohm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.7 Ohm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210-301-2P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.5 Ohm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 2.5 Ohm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210-650-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210-900-2P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.2 Ohm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.2 Ohm (Typ)
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210G-201-2P-T200
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock

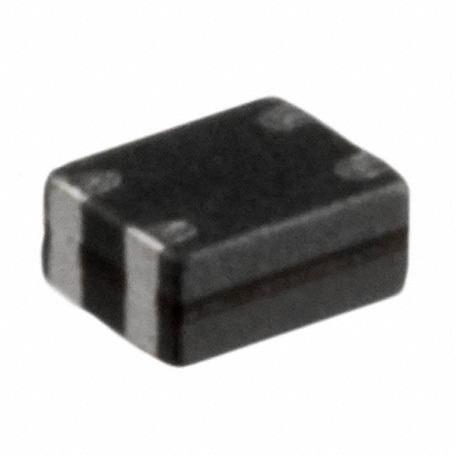

TCM1210G-301-2P-T200
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3.5 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock

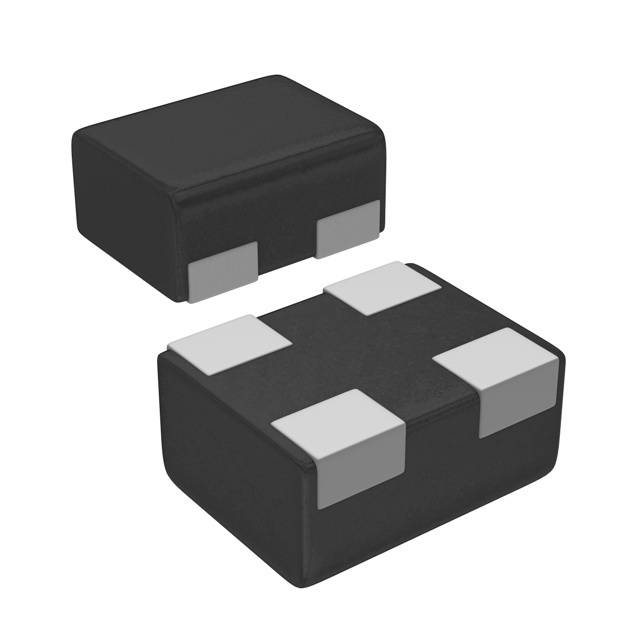

TCM1210G-650-2P-T200
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.028" (0.70mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 65 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.028" (0.70mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210G-900-2P-T200
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.2 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-G
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 1.2 Ohm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210H-900-2P
TDK Corporation
Manufacturer : TDK Corporation
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1210H-900-2P-T000
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : TCM-H
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
Packaging : Tape & Reel (TR)
Series : TCM-H
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : 10V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.026" (0.67mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
100 in stock
TCM1608-201-4P-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 4
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) : 0.020" (0.50mm)
Package / Case : 0603 (1608 Metric), 8 Lead
Packaging : -
Series : TCM
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 4
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 50mA
DC Resistance (DCR) (Max) : 3 Ohm
Voltage Rating - DC : 5V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) : 0.020" (0.50mm)
Package / Case : 0603 (1608 Metric), 8 Lead
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
