Welcome to Weijie Semiconductor
- Filters
- EMI/RFI Filters (LC, RC Networks)
Part Number
Manufacturer
Description
Unit Price
In Stock
CM1408-04DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -35dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-WFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.031" (0.79mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -35dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-WFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.031" (0.79mm)
0
100 in stock
CM1408-08DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -35dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-WFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.031" (0.79mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -35dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-WFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.031" (0.79mm)
0
100 in stock

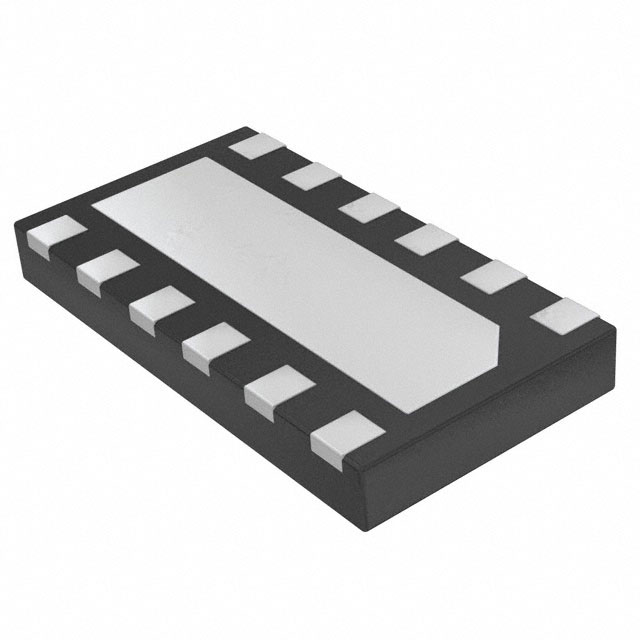

CM1409-06DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-WFDFN Exposed Pad
Size / Dimension : 0.118" L x 0.053" W (3.00mm x 1.35mm)
Height : 0.031" (0.79mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-WFDFN Exposed Pad
Size / Dimension : 0.118" L x 0.053" W (3.00mm x 1.35mm)
Height : 0.031" (0.79mm)
0
100 in stock

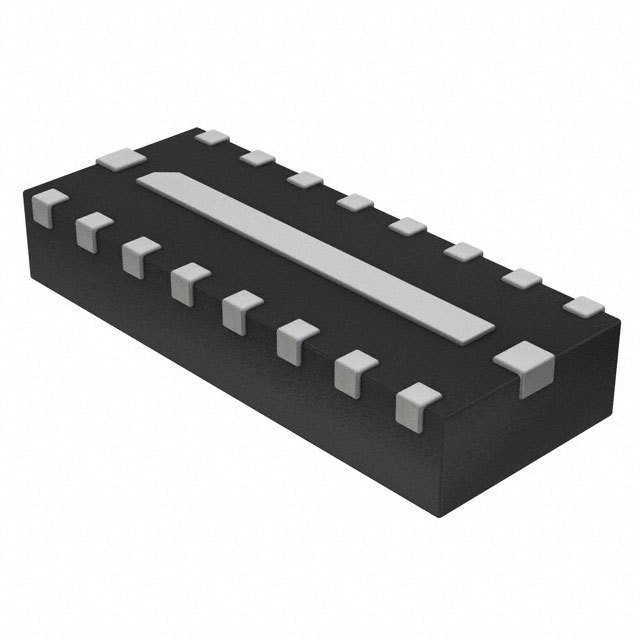

CM1409-08DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-WFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.031" (0.79mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-WFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.031" (0.79mm)
0
100 in stock
CM1411-03CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 31MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 10
Current : -
Values : R = 10 Ohms, C = 100pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.95mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 31MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 10
Current : -
Values : R = 10 Ohms, C = 100pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.95mm)
Height : 0.028" (0.70mm)
0
100 in stock

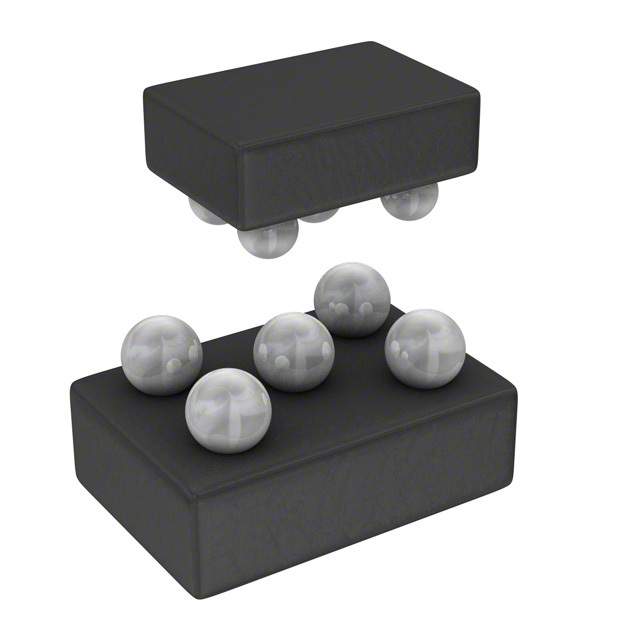

CM1412-03CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 60MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 68
Current : -
Values : R = 68 Ohms, C = 47pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.95mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 60MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 68
Current : -
Values : R = 68 Ohms, C = 47pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.95mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1416-03CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 21MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : 2
Current : -
Values : R = 2 Ohms, C = 117pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.054" L x 0.039" W (1.37mm x 1.00mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 21MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : 2
Current : -
Values : R = 2 Ohms, C = 117pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.054" L x 0.039" W (1.37mm x 1.00mm)
Height : 0.028" (0.70mm)
0
100 in stock

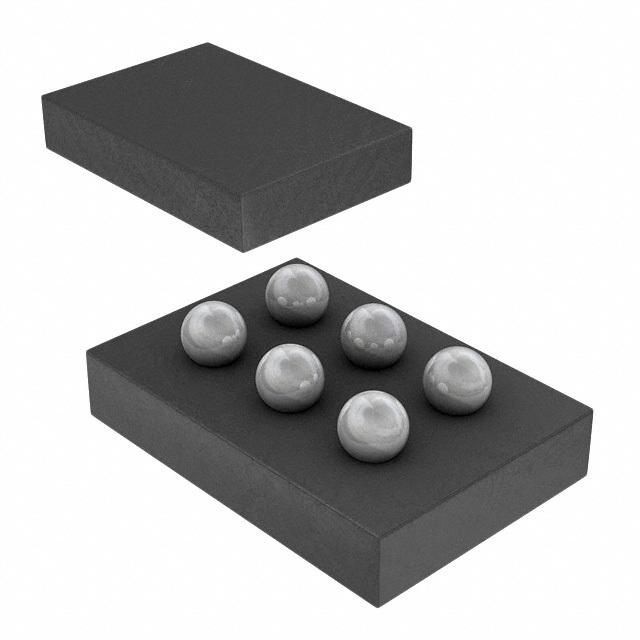

CM1418-02CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian™
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 22MHz (Cutoff)
Attenuation Value : 35dB @ 1GHz
Resistance - Channel (Ohms) : 0.28
Current : 500mA
Values : L = 3nH, C = 117pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-WFBGA, WLCSP
Size / Dimension : 0.067" L x 0.048" W (1.72mm x 1.22mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : Praetorian™
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 22MHz (Cutoff)
Attenuation Value : 35dB @ 1GHz
Resistance - Channel (Ohms) : 0.28
Current : 500mA
Values : L = 3nH, C = 117pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-WFBGA, WLCSP
Size / Dimension : 0.067" L x 0.048" W (1.72mm x 1.22mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1419-02CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian™
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 22MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : 0.28
Current : 500mA
Values : L = 3nH, C = 117pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : Praetorian™
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 22MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : 0.28
Current : 500mA
Values : L = 3nH, C = 117pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1420-03CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 120MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 120MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1422-03CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 120MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.157" L x 0.057" W (4.00mm x 1.46mm)
Height : 0.026" (0.65mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 120MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.157" L x 0.057" W (4.00mm x 1.46mm)
Height : 0.026" (0.65mm)
0
3616 in stock
CM1423-03CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 145MHz (Cutoff)
Attenuation Value : 25dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.157" L x 0.057" W (4.00mm x 1.46mm)
Height : 0.020" (0.51mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 145MHz (Cutoff)
Attenuation Value : 25dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.157" L x 0.057" W (4.00mm x 1.46mm)
Height : 0.020" (0.51mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
