- Filters
- EMI/RFI Filters (LC, RC Networks)
Part Number
Manufacturer
Description
Unit Price
In Stock

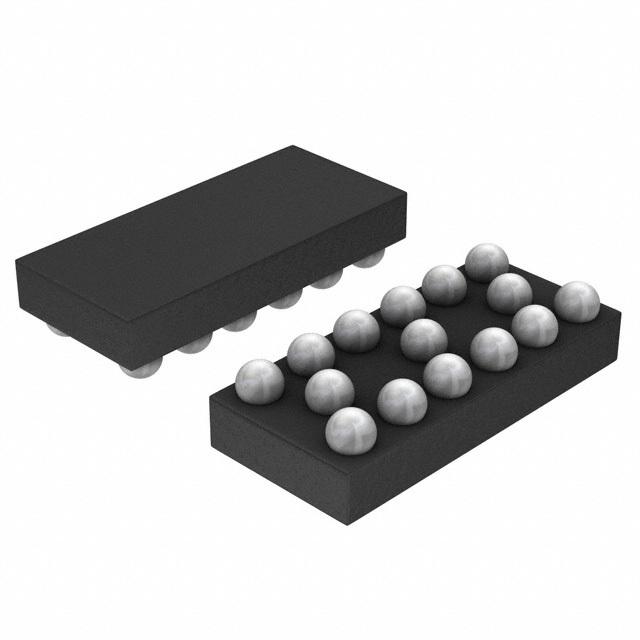

CM1440-06CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 60MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.093" L x 0.041" W (2.36mm x 1.05mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 60MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.093" L x 0.041" W (2.36mm x 1.05mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1442-06LP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 115MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-XFBGA, WLCSP
Size / Dimension : 0.093" L x 0.041" W (2.36mm x 1.05mm)
Height : 0.012" (0.30mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 115MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-XFBGA, WLCSP
Size / Dimension : 0.093" L x 0.041" W (2.36mm x 1.05mm)
Height : 0.012" (0.30mm)
0
100 in stock
CM1443-04CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 220MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-WFBGA, WLCSP
Size / Dimension : 0.061" L x 0.041" W (1.56mm x 1.05mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 220MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-WFBGA, WLCSP
Size / Dimension : 0.061" L x 0.041" W (1.56mm x 1.05mm)
Height : 0.027" (0.69mm)
0
100 in stock
CM1443-08CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 220MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.124" L x 0.041" W (3.16mm x 1.05mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 220MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.124" L x 0.041" W (3.16mm x 1.05mm)
Height : 0.027" (0.69mm)
0
100 in stock
CM1450-06CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 137MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 17nH, C = 14pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.119" L x 0.054" W (3.01mm x 1.38mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 137MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 17nH, C = 14pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.119" L x 0.054" W (3.01mm x 1.38mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1450-08CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 137MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 17nH, C = 14pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.158" L x 0.054" W (4.01mm x 1.38mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 137MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 17nH, C = 14pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.158" L x 0.054" W (4.01mm x 1.38mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1451-06CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 260MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 34nH (Total), C = 28.5pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.119" L x 0.054" W (3.01mm x 1.38mm)
Height : 0.028" (0.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 260MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 34nH (Total), C = 28.5pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.119" L x 0.054" W (3.01mm x 1.38mm)
Height : 0.028" (0.70mm)
0
3215 in stock
CM1451-08CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 260MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 34nH (Total), C = 28.5pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.158" L x 0.054" W (4.01mm x 1.38mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 5th
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 260MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 18
Current : 30mA
Values : L = 34nH (Total), C = 28.5pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.158" L x 0.054" W (4.01mm x 1.38mm)
Height : 0.028" (0.70mm)
0
100 in stock
CM1452-04CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 148MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 17nH, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-WFBGA, WLCSP
Size / Dimension : 0.066" L x 0.044" W (1.67mm x 1.11mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 148MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 17nH, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-WFBGA, WLCSP
Size / Dimension : 0.066" L x 0.044" W (1.67mm x 1.11mm)
Height : 0.027" (0.69mm)
0
100 in stock
CM1453-04CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 20nH, C = 9.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-WFBGA, WLCSP
Size / Dimension : 0.066" L x 0.045" W (1.67mm x 1.14mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 20nH, C = 9.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-WFBGA, WLCSP
Size / Dimension : 0.066" L x 0.045" W (1.67mm x 1.14mm)
Height : 0.027" (0.69mm)
0
100 in stock
CM1453-06CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 20nH, C = 9.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.097" L x 0.045" W (2.47mm x 1.14mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 20nH, C = 9.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-WFBGA, WLCSP
Size / Dimension : 0.097" L x 0.045" W (2.47mm x 1.14mm)
Height : 0.027" (0.69mm)
0
100 in stock
CM1453-08CP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 20nH, C = 9.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.129" L x 0.045" W (3.27mm x 1.14mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 20nH, C = 9.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 20-WFBGA, WLCSP
Size / Dimension : 0.129" L x 0.045" W (3.27mm x 1.14mm)
Height : 0.027" (0.69mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
