Welcome to Weijie Semiconductor
- Filters
- EMI/RFI Filters (LC, RC Networks)
Part Number
Manufacturer
Description
Unit Price
In Stock
CM1485-02SE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 1GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
0
100 in stock

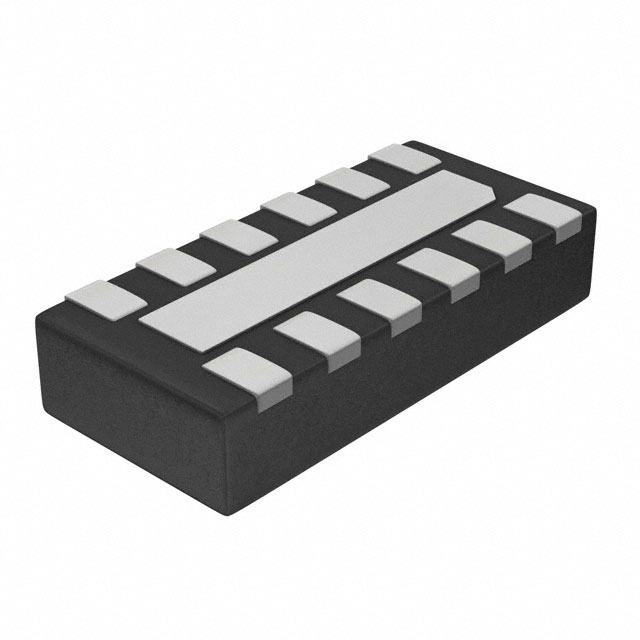

CM1492-06DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : -
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 17nH, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-TDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.031" (0.79mm)
Packaging : Tape & Reel (TR)
Series : Praetorian®
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : -
Attenuation Value : 30dB @ 1GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 17nH, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-TDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.031" (0.79mm)
0
100 in stock
CM1499-E6DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-VFDFN Exposed Pad
Size / Dimension : 0.118" L x 0.053" W (3.00mm x 1.35mm)
Height : 0.039" (1.00mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-VFDFN Exposed Pad
Size / Dimension : 0.118" L x 0.053" W (3.00mm x 1.35mm)
Height : 0.039" (1.00mm)
0
100 in stock

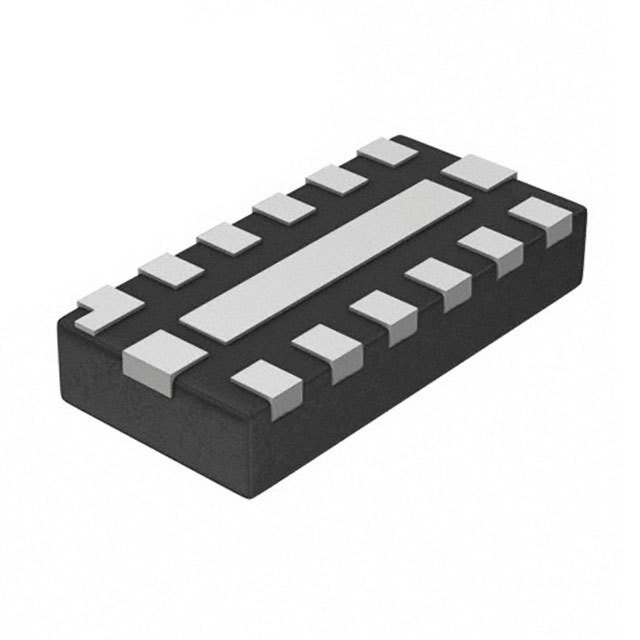

CM1620-06DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.047" W (2.50mm x 1.20mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.047" W (2.50mm x 1.20mm)
Height : 0.022" (0.55mm)
0
100 in stock

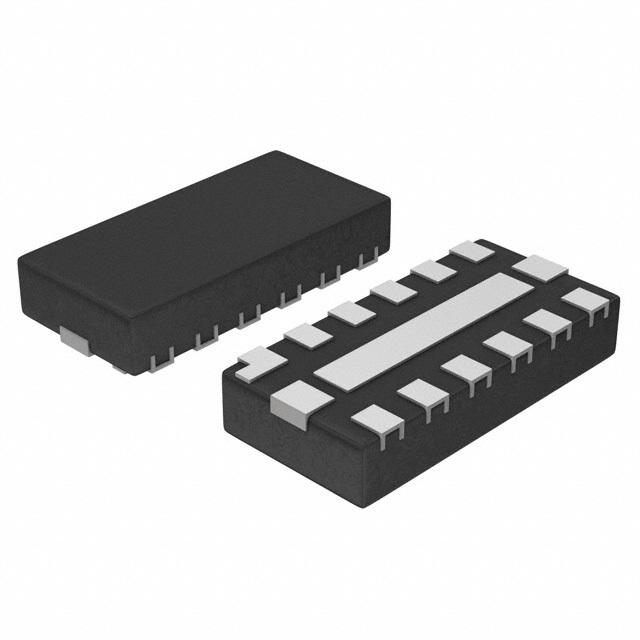

CM1621-06DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 90MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 17pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.047" W (2.50mm x 1.20mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 90MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 17pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.047" W (2.50mm x 1.20mm)
Height : 0.022" (0.55mm)
0
100 in stock
CM1622-08DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 115MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 115MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height : 0.022" (0.55mm)
0
100 in stock
CM1623-04DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 20pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 20pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock

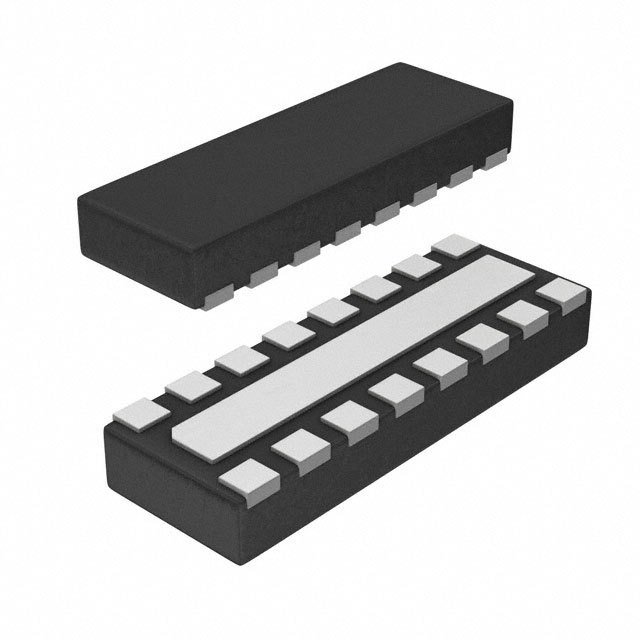

CM1624-08DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : RLC
Number of Channels : 6
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 40
Current : -
Values : R = 40 Ohms, C = 12pF, L = 20nH
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : RLC
Number of Channels : 6
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 40
Current : -
Values : R = 40 Ohms, C = 12pF, L = 20nH
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)
0
4876 in stock

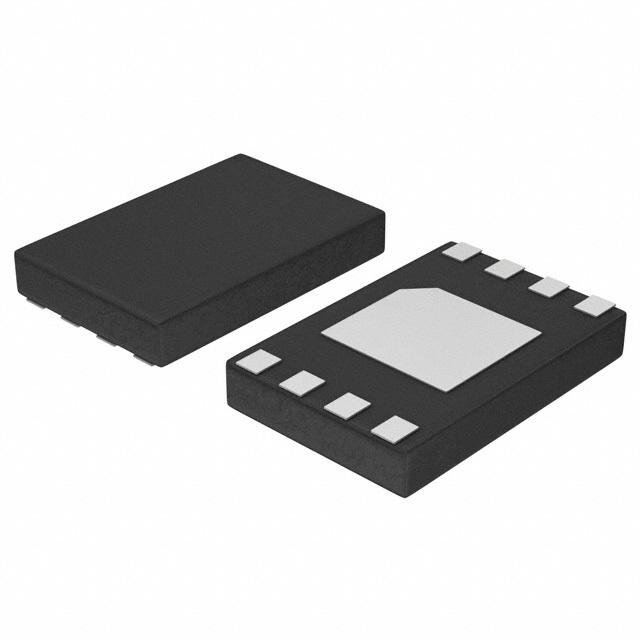

CM1630-04DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock

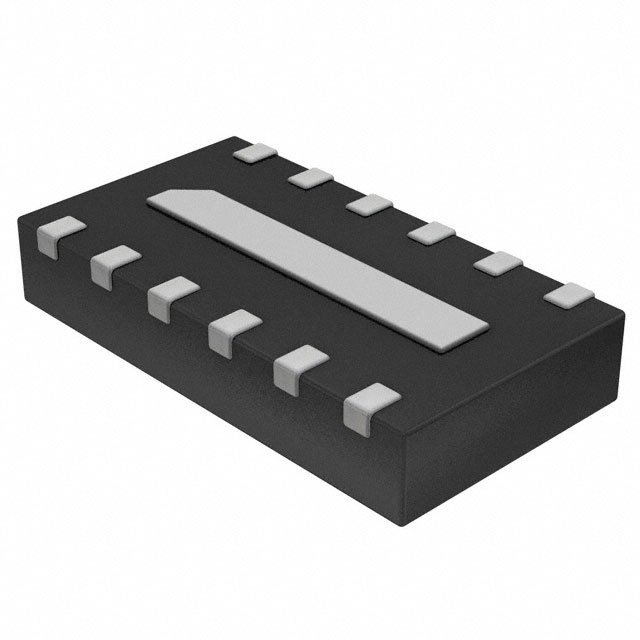

CM1630-06DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock
CM1630-08DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock
CM1631-04DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
