Part Number
Manufacturer
Description
Unit Price
In Stock

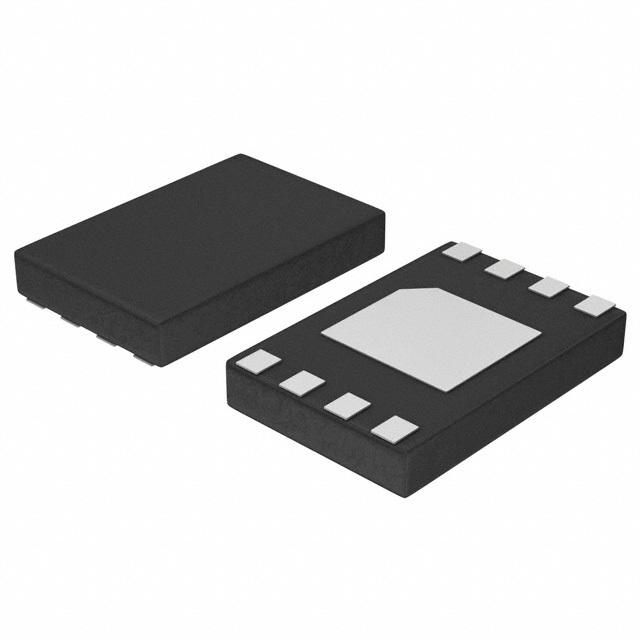

CM1693-04DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 26nH, C = 22pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 26nH, C = 22pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)
0
4579 in stock

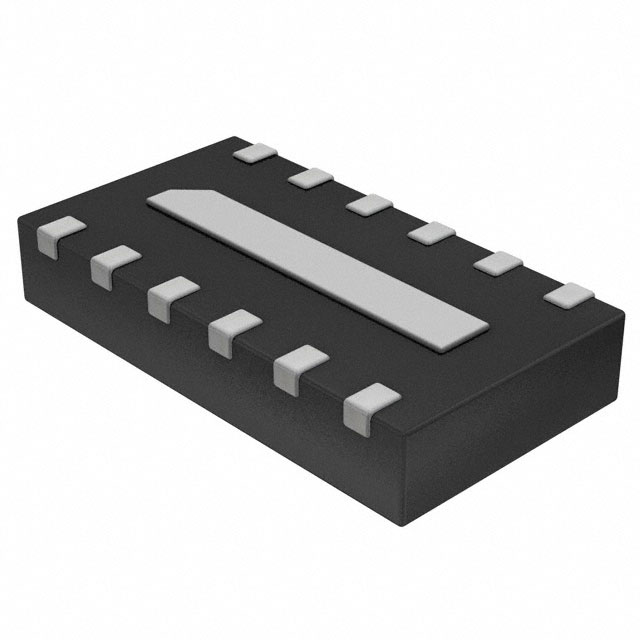

CM1693-06DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 26nH (Total), C = 22pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 26nH (Total), C = 22pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock

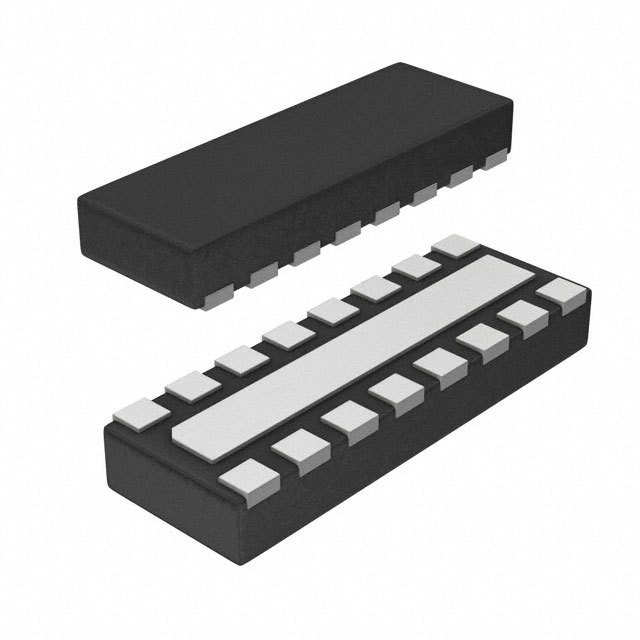

CM1693-08DE
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 26nH, C = 22pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : -
Current : 30mA
Values : L = 26nH, C = 22pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)
0
100 in stock
CM6200
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 25, 2.2k
Current : -
Values : R = 25 Ohms, 2.2 kOhms, C = 830pF, 1250pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, CSPBGA
Size / Dimension : 0.047" L x 0.047" W (1.20mm x 1.20mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 25, 2.2k
Current : -
Values : R = 25 Ohms, 2.2 kOhms, C = 830pF, 1250pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, CSPBGA
Size / Dimension : 0.047" L x 0.047" W (1.20mm x 1.20mm)
Height : 0.025" (0.64mm)
0
100 in stock

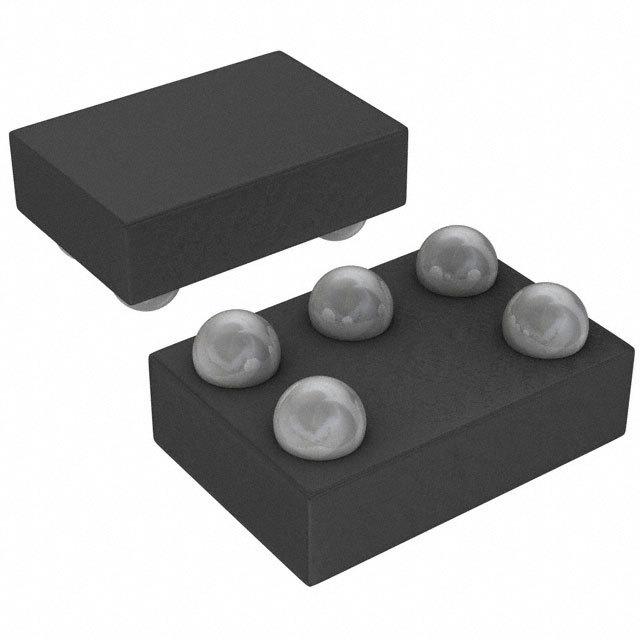

CM6205
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 15
Current : -
Values : R = 15 Ohms, C = 5000pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-UFBGA, WLCSP
Size / Dimension : 0.047" L x 0.031" W (1.20mm x 0.80mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 15
Current : -
Values : R = 15 Ohms, C = 5000pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-UFBGA, WLCSP
Size / Dimension : 0.047" L x 0.031" W (1.20mm x 0.80mm)
Height : 0.025" (0.64mm)
0
100 in stock

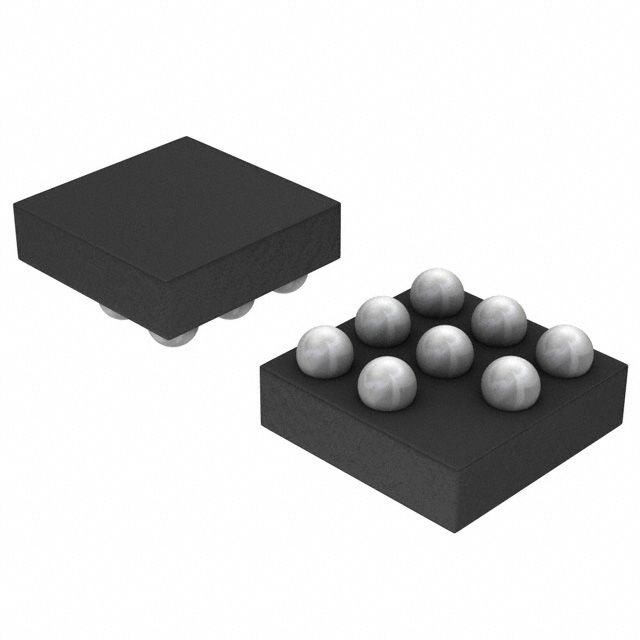

CM6300
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 16.7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-WFBGA, WLCSP
Size / Dimension : 0.063" L x 0.063" W (1.60mm x 1.60mm)
Height : 0.027" (0.69mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 16.7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-WFBGA, WLCSP
Size / Dimension : 0.063" L x 0.063" W (1.60mm x 1.60mm)
Height : 0.027" (0.69mm)
0
100 in stock
CM6304
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 16.7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, CSPBGA
Size / Dimension : 0.047" L x 0.047" W (1.20mm x 1.20mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 16.7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, CSPBGA
Size / Dimension : 0.047" L x 0.047" W (1.20mm x 1.20mm)
Height : 0.025" (0.64mm)
0
100 in stock

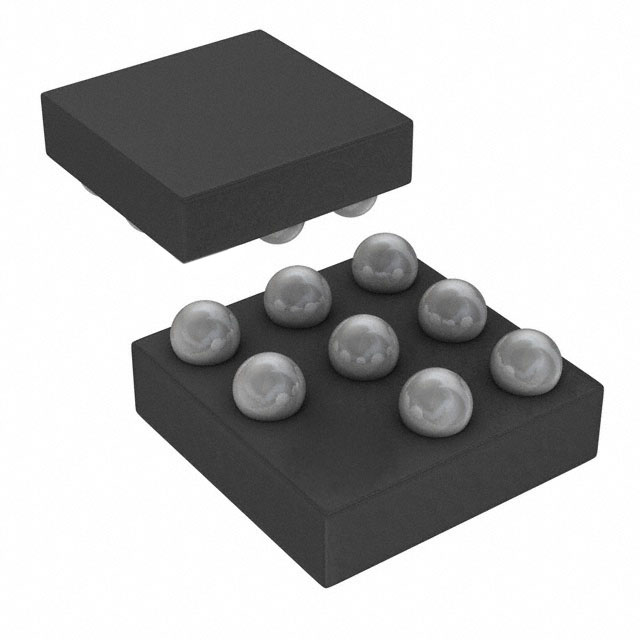

CM6305
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 10pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, WLCSP
Size / Dimension : 0.046" L x 0.046" W (1.16mm x 1.16mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 10pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, WLCSP
Size / Dimension : 0.046" L x 0.046" W (1.16mm x 1.16mm)
Height : 0.025" (0.64mm)
0
100 in stock

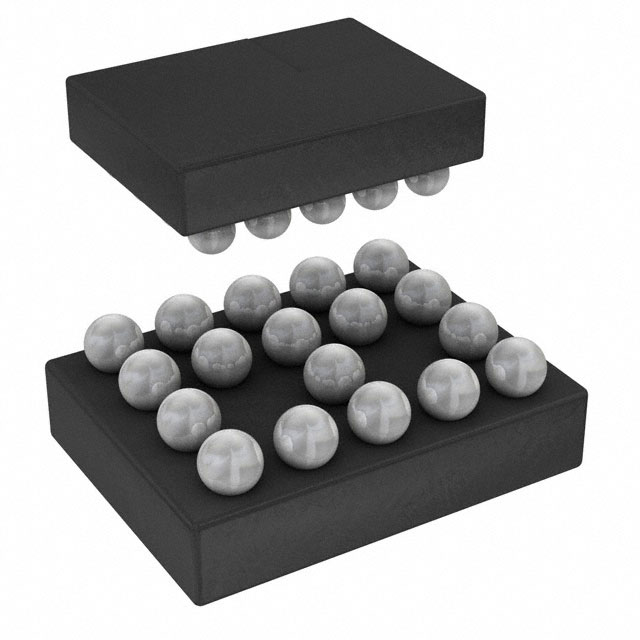

CM6317
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 7
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 70
Current : -
Values : R = 70 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 18-UFBGA, WLCSP
Size / Dimension : 0.077" L x 0.061" W (1.96mm x 1.56mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 7
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 70
Current : -
Values : R = 70 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 18-UFBGA, WLCSP
Size / Dimension : 0.077" L x 0.061" W (1.96mm x 1.56mm)
Height : 0.025" (0.64mm)
0
100 in stock
CM6320
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 70
Current : -
Values : R = 70 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 24-UFBGA, WLCSP
Size / Dimension : 0.077" L x 0.077" W (1.96mm x 1.96mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 70
Current : -
Values : R = 70 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 24-UFBGA, WLCSP
Size / Dimension : 0.077" L x 0.077" W (1.96mm x 1.96mm)
Height : 0.025" (0.64mm)
0
100 in stock
CM6400A
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 250MHz (Cutoff)
Attenuation Value : -7dB @ 5MHz
Resistance - Channel (Ohms) : 125
Current : -
Values : L = 35nH, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 24-WFBGA, WLCSP
Size / Dimension : 0.077" L x 0.077" W (1.96mm x 1.96mm)
Height : 0.025" (0.64mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 250MHz (Cutoff)
Attenuation Value : -7dB @ 5MHz
Resistance - Channel (Ohms) : 125
Current : -
Values : L = 35nH, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 24-WFBGA, WLCSP
Size / Dimension : 0.077" L x 0.077" W (1.96mm x 1.96mm)
Height : 0.025" (0.64mm)
0
100 in stock
CSPEMI201AG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 31MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 10
Current : -
Values : R = 10 Ohms, C = 100pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-UFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.93mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 31MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 10
Current : -
Values : R = 10 Ohms, C = 100pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-UFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.93mm)
Height : 0.026" (0.65mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
