- Filters
- EMI/RFI Filters (LC, RC Networks)
Part Number
Manufacturer
Description
Unit Price
In Stock

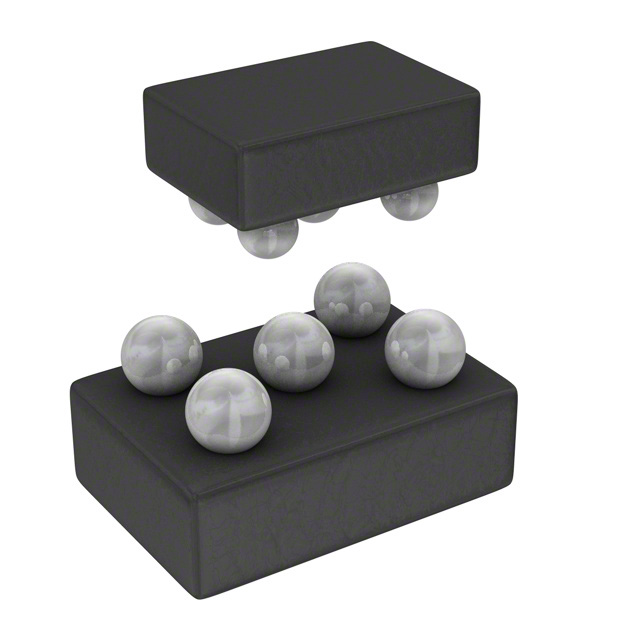

CSPEMI202AG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 60MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 68
Current : -
Values : R = 68 Ohms, C = 47pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.93mm)
Height : 0.026" (0.65mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 60MHz (Cutoff)
Attenuation Value : 35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 68
Current : -
Values : R = 68 Ohms, C = 47pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-WFBGA, WLCSP
Size / Dimension : 0.056" L x 0.037" W (1.41mm x 0.93mm)
Height : 0.026" (0.65mm)
0
4330 in stock
CSPEMI205G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : 34MHz, 63MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 10, 68
Current : -
Values : R = 10 Ohms, 68 Ohms, C = 47pF, 100pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, CSPBGA
Size / Dimension : 0.056" L x 0.056" W (1.43mm x 1.41mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : 34MHz, 63MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 10, 68
Current : -
Values : R = 10 Ohms, 68 Ohms, C = 47pF, 100pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFBGA, CSPBGA
Size / Dimension : 0.056" L x 0.056" W (1.43mm x 1.41mm)
Height : 0.026" (0.65mm)
0
100 in stock
CSPEMI306AG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 58MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-UFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 58MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-UFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.026" (0.65mm)
0
100 in stock
CSPEMI307AG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 64MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-UFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : 64MHz (Cutoff)
Attenuation Value : 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-UFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.026" (0.65mm)
0
100 in stock

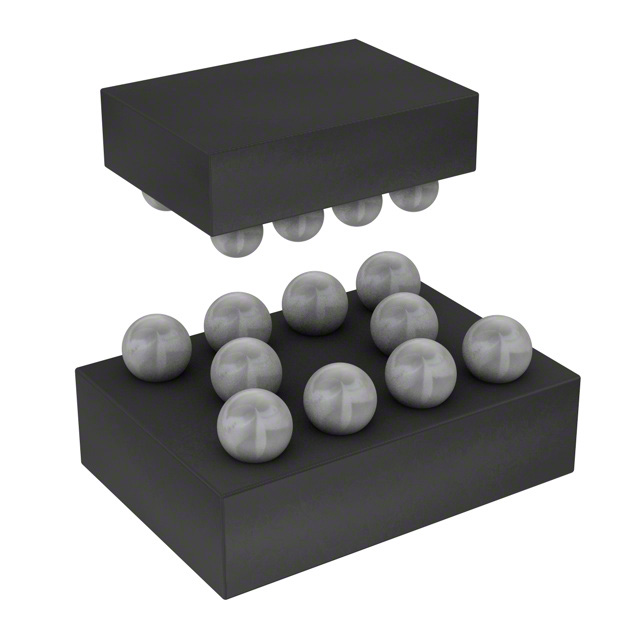

CSPEMI400G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : 77MHz, 85MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 20pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-UFBGA, WLCSP
Size / Dimension : 0.077" L x 0.052" W (1.96mm x 1.33mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : 77MHz, 85MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 20pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 10-UFBGA, WLCSP
Size / Dimension : 0.077" L x 0.052" W (1.96mm x 1.33mm)
Height : 0.026" (0.65mm)
0
100 in stock

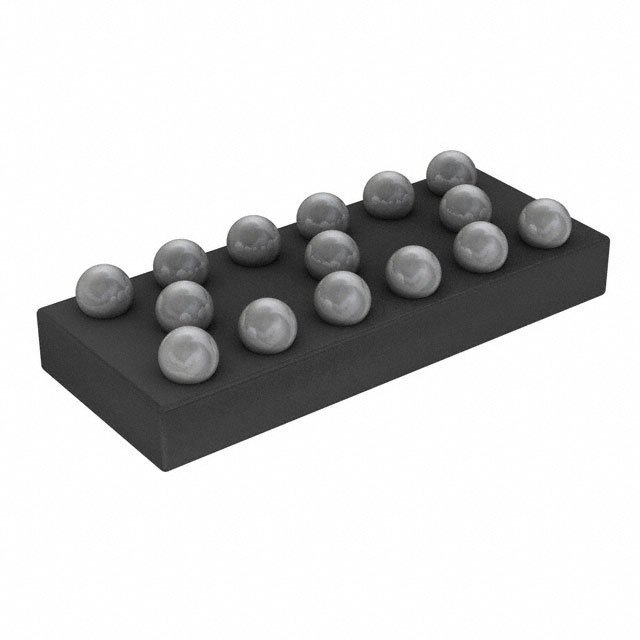

CSPEMI606G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 120MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-UFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : 120MHz (Cutoff)
Attenuation Value : 30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 15pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 15-UFBGA, WLCSP
Size / Dimension : 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height : 0.026" (0.65mm)
0
100 in stock
DSS1NB31H104Q91A
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 0.1µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 0.1µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
0
2499 in stock
DSS1NB31H333Q91A
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 0.033µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 0.033µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
0
3941 in stock

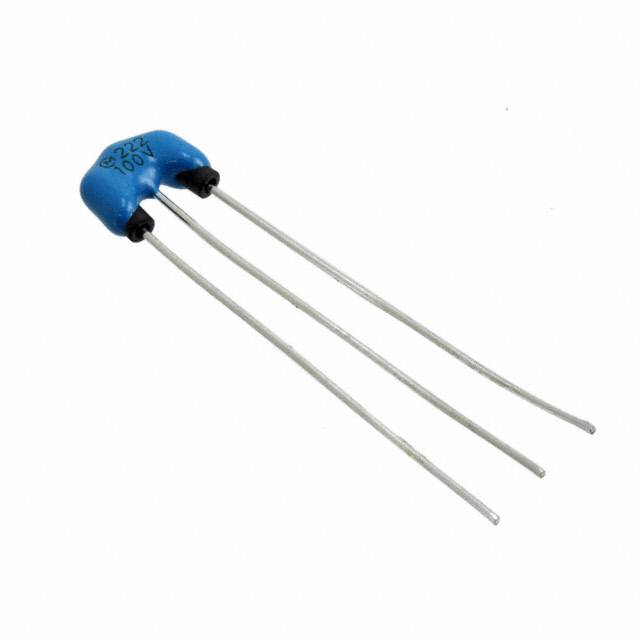

DSS1NB31H473Q91A
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 0.047µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 0.047µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
0
2784 in stock
DSS1NB32A101Q91A
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 100pF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 100pF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
0
842 in stock
DSS1NB32A102Q91A
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 1000pF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : C = 1000pF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
0
923 in stock
DSS1NB32A102Q93A
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : -
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
Packaging : -
Series : EMIFIL®, DSS1
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 6A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Through Hole
Package / Case : Radial - 3 Leads
Size / Dimension : 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height : 0.295" (7.50mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
