- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock

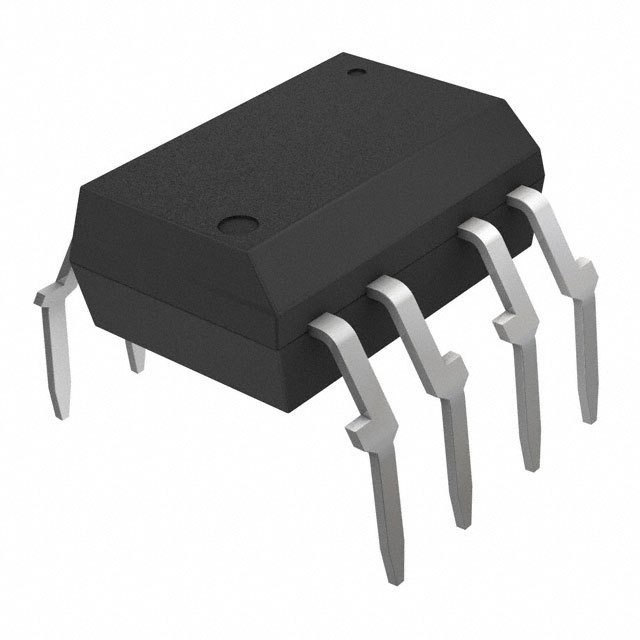

.jpg "Show details for TLP559(IGM,F)")
TLP559(IGM,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 25% @ 10mA
Current Transfer Ratio (Max) : 75% @ 10mA
Turn On / Turn Off Time (Typ) : 450ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 25% @ 10mA
Current Transfer Ratio (Max) : 75% @ 10mA
Turn On / Turn Off Time (Typ) : 450ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
120 in stock

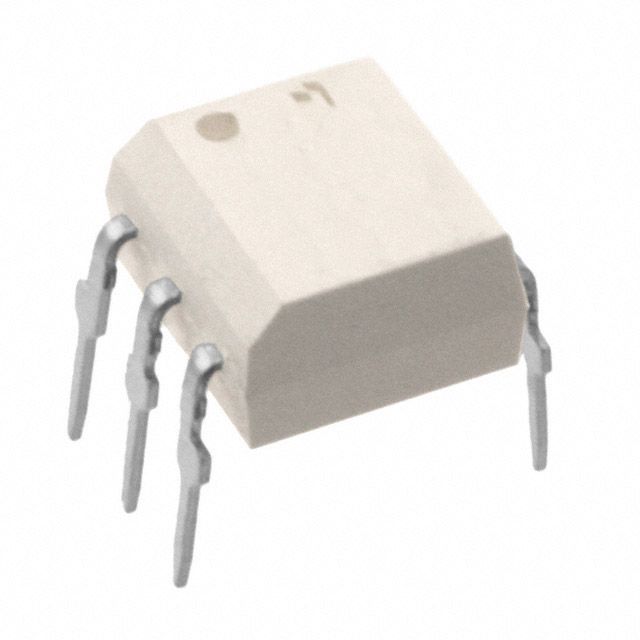

.jpg "Show details for TLP591B(C,F)")
TLP591B(C,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 200µs, 3ms
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 24µA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package : 6-DIP, 5 Lead
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 200µs, 3ms
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 24µA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package : 6-DIP, 5 Lead
0
2607 in stock
TLP620-2X
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2528 in stock
.jpg "Show details for TLP620-4(F)")
TLP620-4(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
189 in stock
TLP620-4X
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
308 in stock
TLP620X
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
7377 in stock
TLP621-2X
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
46 in stock
TLP621-2XGB
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : -
0
3114 in stock
TLP621-4X
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
5342 in stock
TLP621X
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
6750 in stock
TLP621XGB
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
0
3529 in stock
TLP621XSM
Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
0
6416 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
