- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
.jpg "Show details for TLP785(GR-TP6,F)")

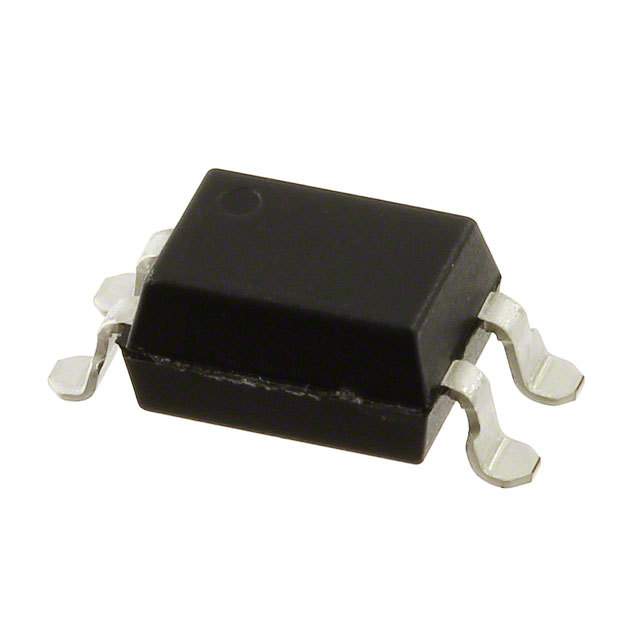

TLP785(GR-TP6,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
24495 in stock
.jpg "Show details for TLP785(TP6,F)")
TLP785(TP6,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
5578 in stock
.jpg "Show details for TLP785(Y,F)")
TLP785(Y,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
1050 in stock
TPC816A C9G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
2459 in stock
TPC816B C9G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
2399 in stock

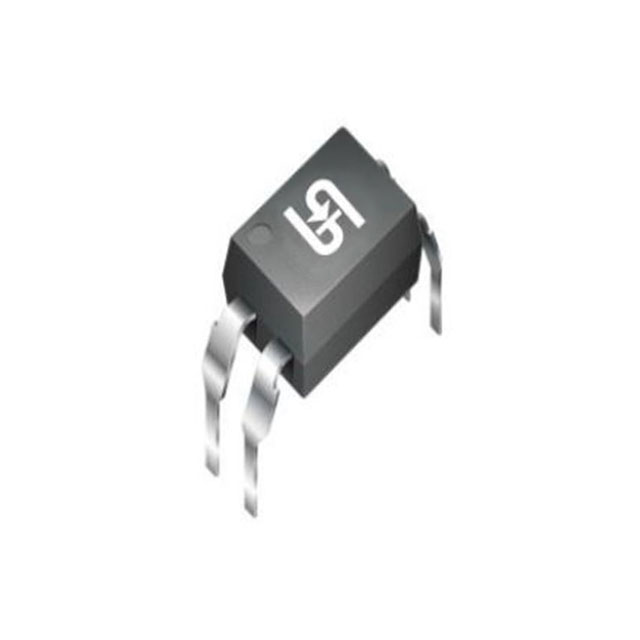

TPC816D C9G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 300% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 300% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
2436 in stock
TPC816S1A RAG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
0
2195 in stock

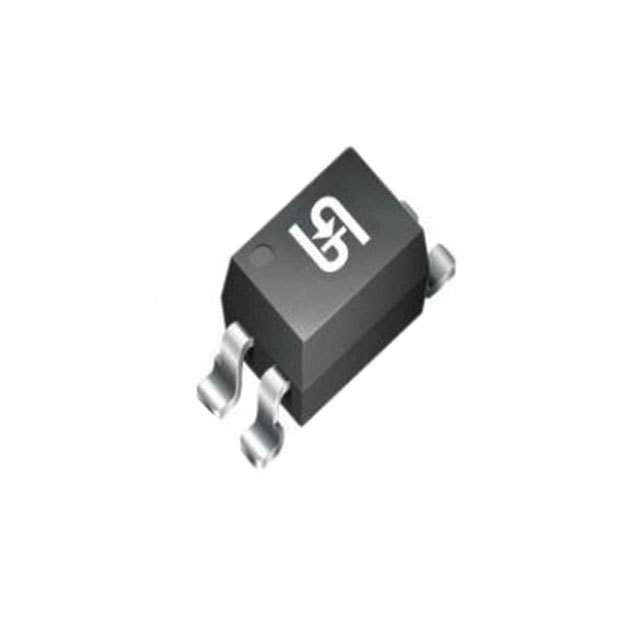

TPC816S1B RAG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
0
3111 in stock
TPC816S1C RAG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
0
3979 in stock
TPC816S1D RAG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 300% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TPC816
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 300% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SOP
0
127 in stock
TPC817A C9G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : TPC817
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : TPC817
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
21082 in stock
TPC817B C9G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : TPC817
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : TPC817
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
24960 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
