Ferrite Cores Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

TX36/23/10-3E12

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 10
Height : 10.92mm
Length : -
Width : -
Diameter : 37.15mm

100 in stock

TX36/23/10-3E27

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 10
Height : 10.92mm
Length : -
Width : -
Diameter : 37.15mm

378 in stock

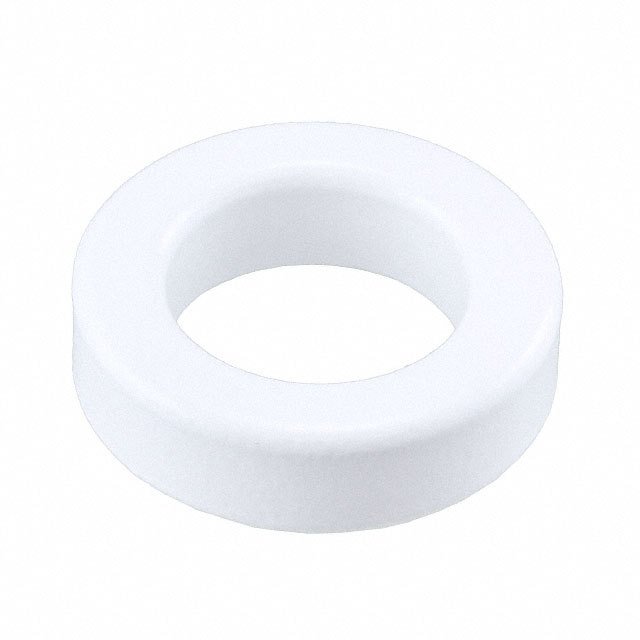

TX36/23/10-3E6

FERROXCUBE

245 in stock

TX36/23/10-3E65

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 5200
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 1.38
Effective Length (le) mm : 89.7
Effective Area (Ae) mm² : 64.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5820
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 10
Height : 10.92mm
Length : -
Width : -
Diameter : 37.15mm

100 in stock

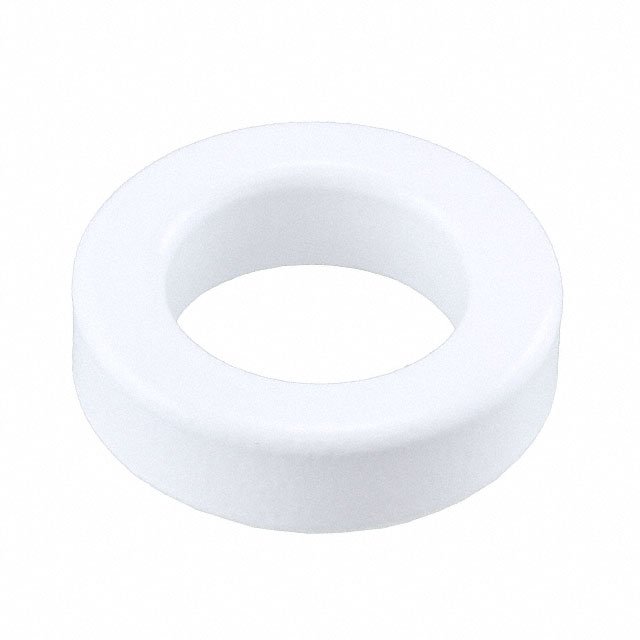

TX36/23/10-4C65

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 4C65
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 10
Height : 10.92mm
Length : -
Width : -
Diameter : 37.15mm

721 in stock

TX36/23/15-3C90

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3C90
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

370 in stock

TX36/23/15-3C94

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 2300
Initial Permeability (µi) : -
Material : 3C94
Core Factor (危I/A) mm1 : 0.919
Effective Length (le) mm : 89.7
Effective Area (Ae) mm² : 97.5
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 8740
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

100 in stock

TX36/23/15-3E10-M

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 10000
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.919
Effective Length (le) mm : 89.7
Effective Area (Ae) mm² : 97.5
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 8740
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

100 in stock

TX36/23/15-3E12

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

44 in stock

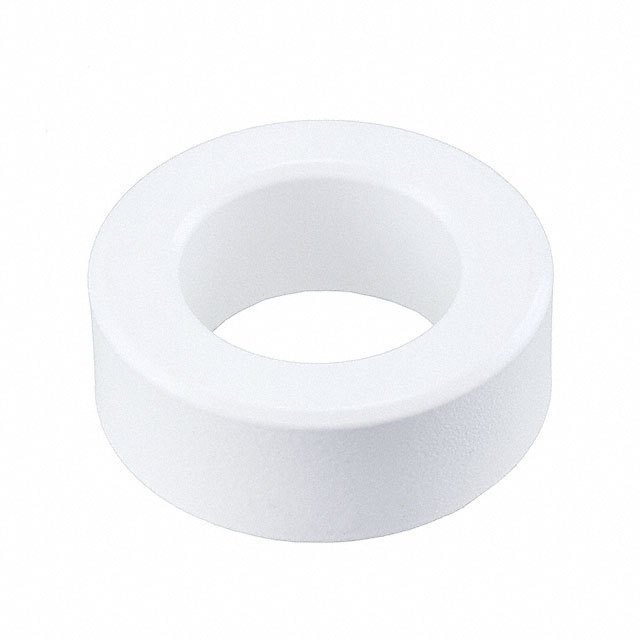

TX36/23/15-3E27

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

630 in stock

TX36/23/15-3E27-M7

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 7000
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : 0.919
Effective Length (le) mm : 89.7
Effective Area (Ae) mm² : 97.5
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 8740
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

194 in stock

TX36/23/15-3E6

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 36 x 23 x 15
Height : 16.00mm
Length : -
Width : -
Diameter : 37.15mm

100 in stock
