TX26/15/20-3E6

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 5500
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.538
Effective Length (le) mm : 60.1
Effective Area (Ae) mm² : 112
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6720
Finish : Epoxy
Supplier Device Package : TX 26 x 15 x 20
Height : 21.00mm
Length : -
Width : -
Diameter : 26.95mm

100 in stock

TX26/15/20-3E65

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 5200
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.538
Effective Length (le) mm : 60.1
Effective Area (Ae) mm² : 112
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6720
Finish : Epoxy
Supplier Device Package : TX 26 x 15 x 20
Height : 21.00mm
Length : -
Width : -
Diameter : 26.95mm

100 in stock

TX29/19/15-3C94

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 2300
Initial Permeability (µi) : -
Material : 3C94
Core Factor (危I/A) mm1 : 0.98
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 73.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5410
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 15
Height : 16.05mm
Length : -
Width : -
Diameter : 29.95mm

100 in stock

TX29/19/15-3E10-M

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 10000
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.98
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 73.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5410
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 15
Height : 16.05mm
Length : -
Width : -
Diameter : 29.95mm

100 in stock

TX29/19/15-3E12

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 15
Height : 16.05mm
Length : -
Width : -
Diameter : 29.95mm

100 in stock

TX29/19/15-3E27

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 5500
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : 0.98
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 73.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5410
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 15
Height : 16.05mm
Length : -
Width : -
Diameter : 29.95mm

100 in stock

TX29/19/15-3E27-M7

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 7000
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : 0.98
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 73.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5410
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 15
Height : 16.05mm
Length : -
Width : -
Diameter : 29.95mm

100 in stock

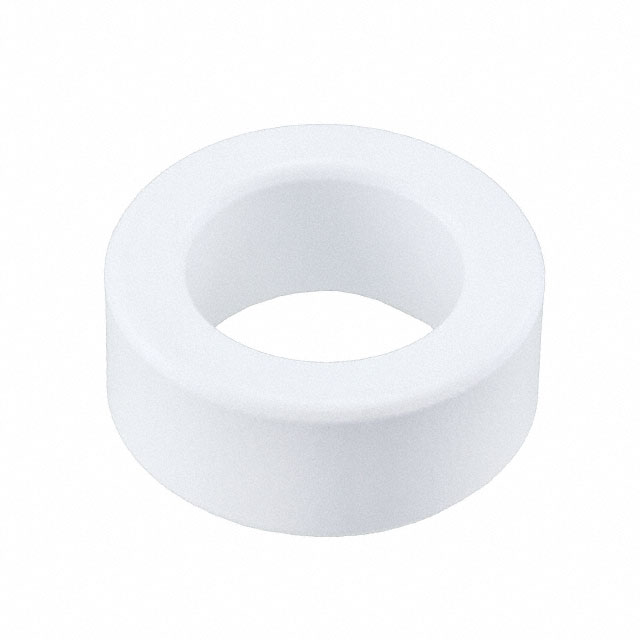

TX29/19/15-3E6

FERROXCUBE

120 in stock

TX29/19/15-3E65

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 5200
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.98
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 73.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5410
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 15
Height : 16.05mm
Length : -
Width : -
Diameter : 29.95mm

100 in stock

TX29/19/7.6-3C94

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 2300
Initial Permeability (µi) : -
Material : 3C94
Core Factor (危I/A) mm1 : 2.06
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 35.5
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2600
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 7.6
Height : 6.55mm
Length : -
Width : -
Diameter : 16.25mm

100 in stock

TX29/19/7.6-3E10-M

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 10000
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 2.06
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 35.5
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2600
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 7.6
Height : 6.55mm
Length : -
Width : -
Diameter : 16.25mm

100 in stock

TX29/19/7.6-3E12

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 12000
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 2.06
Effective Length (le) mm : 73.2
Effective Area (Ae) mm² : 35.5
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2600
Finish : Epoxy
Supplier Device Package : TX 29 x 19 x 7.6
Height : 6.55mm
Length : -
Width : -
Diameter : 16.25mm

100 in stock
