Part Number
Manufacturer
Description
Unit Price
In Stock

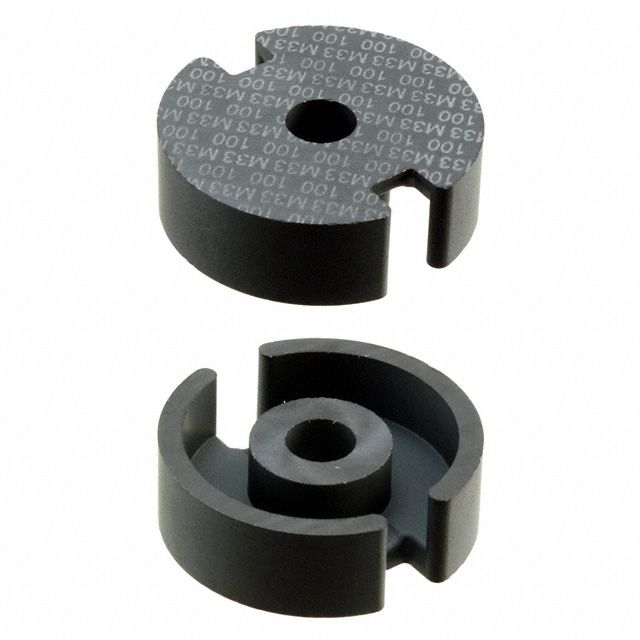

B65671T0100A033
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 100nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 32
Initial Permeability (µi) : 750
Material : M33
Core Factor (危I/A) mm1 : 0.4
Effective Length (le) mm : 37.2
Effective Area (Ae) mm² : 93
Minimum Core Cross Section (Amin) mm² : 76.5
Effective Magnetic Volume (Ve) mm鲁 : 3460
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 100nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 32
Initial Permeability (µi) : 750
Material : M33
Core Factor (危I/A) mm1 : 0.4
Effective Length (le) mm : 37.2
Effective Area (Ae) mm² : 93
Minimum Core Cross Section (Amin) mm² : 76.5
Effective Magnetic Volume (Ve) mm鲁 : 3460
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
0
100 in stock

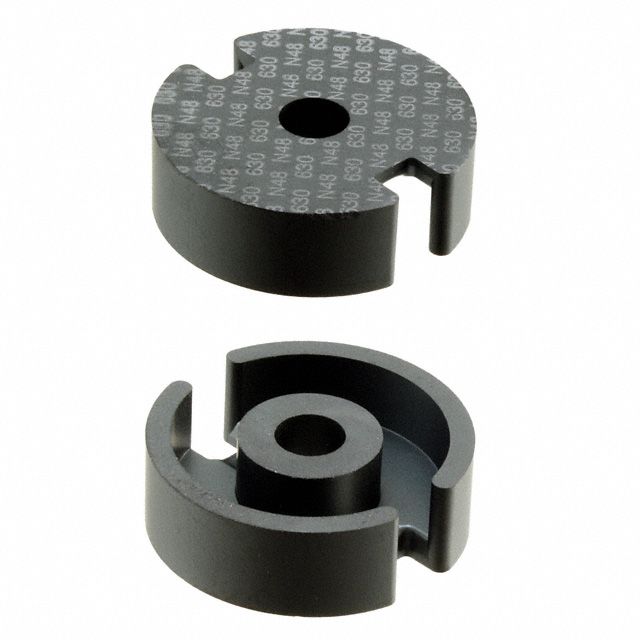

B65671T0630A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 630nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 201
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.4
Effective Length (le) mm : 37.2
Effective Area (Ae) mm² : 93
Minimum Core Cross Section (Amin) mm² : 76.5
Effective Magnetic Volume (Ve) mm鲁 : 3460
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 630nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 201
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.4
Effective Length (le) mm : 37.2
Effective Area (Ae) mm² : 93
Minimum Core Cross Section (Amin) mm² : 76.5
Effective Magnetic Volume (Ve) mm鲁 : 3460
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
0
100 in stock

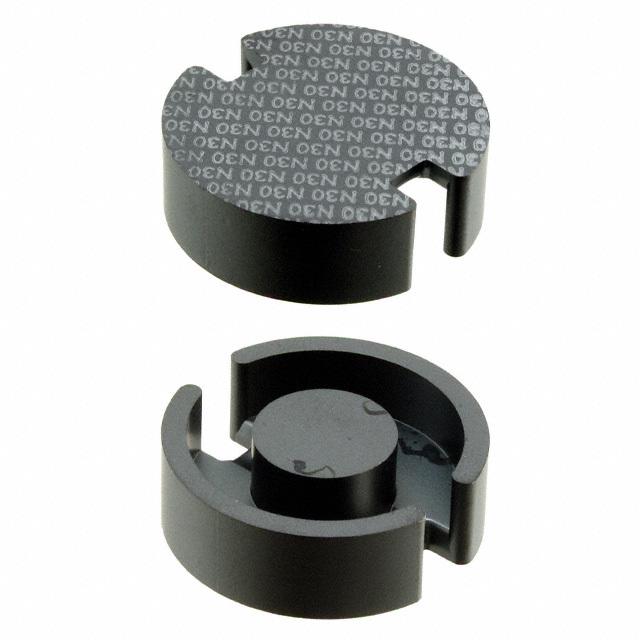

B65671W0000R030
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 9.7µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2860
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.37
Effective Length (le) mm : 40
Effective Area (Ae) mm² : 108
Minimum Core Cross Section (Amin) mm² : 87
Effective Magnetic Volume (Ve) mm鲁 : 4320
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 9.7µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2860
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.37
Effective Length (le) mm : 40
Effective Area (Ae) mm² : 108
Minimum Core Cross Section (Amin) mm² : 87
Effective Magnetic Volume (Ve) mm鲁 : 4320
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
0
303 in stock
B65671W0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 5.5µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1620
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.37
Effective Length (le) mm : 40
Effective Area (Ae) mm² : 108
Minimum Core Cross Section (Amin) mm² : 87
Effective Magnetic Volume (Ve) mm鲁 : 4320
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 5.5µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1620
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.37
Effective Length (le) mm : 40
Effective Area (Ae) mm² : 108
Minimum Core Cross Section (Amin) mm² : 87
Effective Magnetic Volume (Ve) mm鲁 : 4320
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
0
100 in stock
B65671W0000Y038
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 22µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 6480
Initial Permeability (µi) : 10000
Material : T38
Core Factor (危I/A) mm1 : 0.37
Effective Length (le) mm : 40
Effective Area (Ae) mm² : 108
Minimum Core Cross Section (Amin) mm² : 87
Effective Magnetic Volume (Ve) mm鲁 : 4320
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
Series : B65671
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 22µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 6480
Initial Permeability (µi) : 10000
Material : T38
Core Factor (危I/A) mm1 : 0.37
Effective Length (le) mm : 40
Effective Area (Ae) mm² : 108
Minimum Core Cross Section (Amin) mm² : 87
Effective Magnetic Volume (Ve) mm鲁 : 4320
Finish : Uncoated
Supplier Device Package : P 26 x 16
Height : 8.15mm
Length : -
Width : -
Diameter : 26.00mm
0
200 in stock

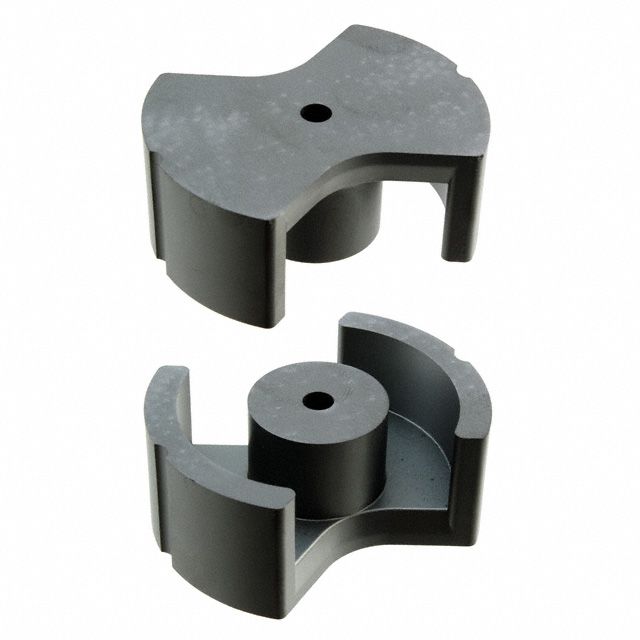

B65684A0000R027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 9.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1400
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 9.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1400
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
0
100 in stock

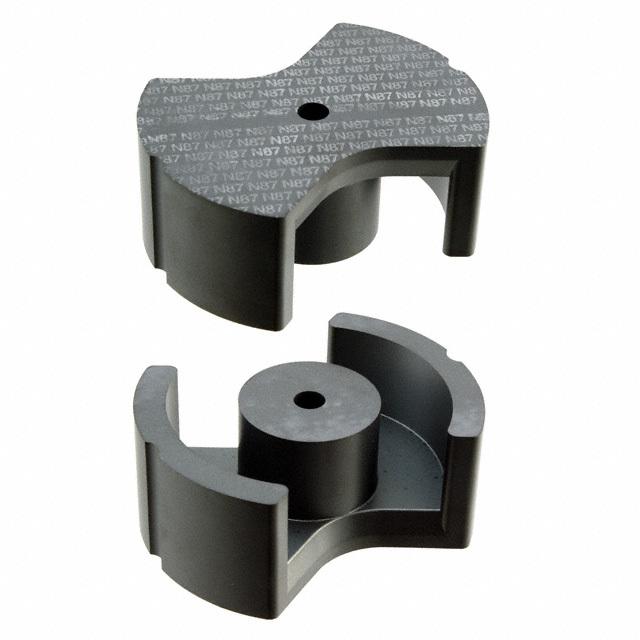

B65684A0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 9.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1400
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 9.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1400
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
0
7 in stock

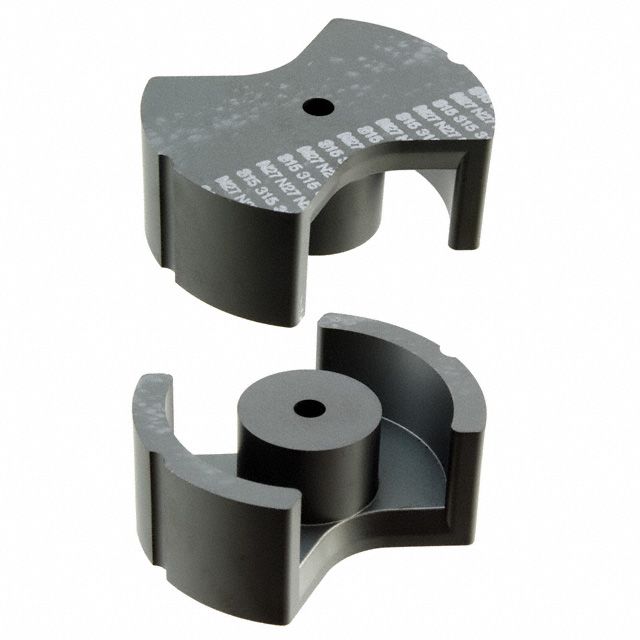

B65684A0315A027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 315nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 48
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 315nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 48
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
0
54 in stock
B65684A0630A027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 630nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 95
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
Series : B65684
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 630nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 95
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.191
Effective Length (le) mm : 109
Effective Area (Ae) mm² : 570
Minimum Core Cross Section (Amin) mm² : 470
Effective Magnetic Volume (Ve) mm鲁 : 62000
Finish : Uncoated
Supplier Device Package : PM 62 x 49
Height : 24.50mm
Length : -
Width : -
Diameter : 62.00mm
0
17 in stock

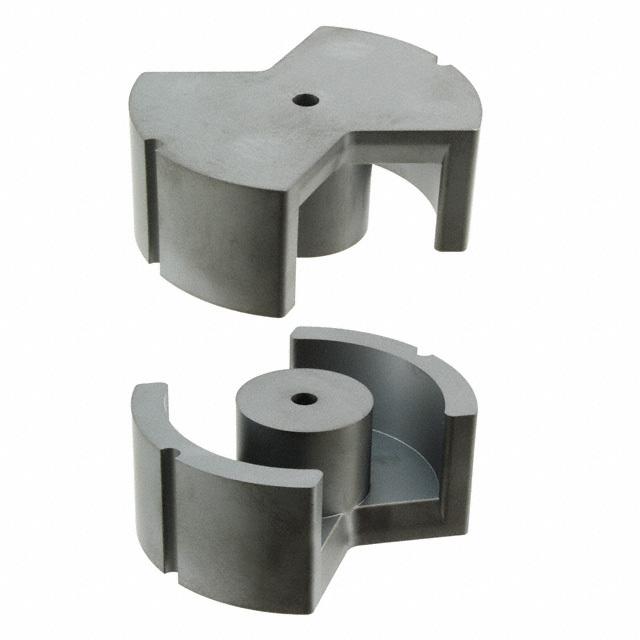

B65686A0000R027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65686
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 10µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1290
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.162
Effective Length (le) mm : 128
Effective Area (Ae) mm² : 790
Minimum Core Cross Section (Amin) mm² : 630
Effective Magnetic Volume (Ve) mm鲁 : 101000
Finish : Uncoated
Supplier Device Package : PM 74 x 59
Height : 29.50mm
Length : -
Width : -
Diameter : 74.00mm
Series : B65686
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 10µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1290
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.162
Effective Length (le) mm : 128
Effective Area (Ae) mm² : 790
Minimum Core Cross Section (Amin) mm² : 630
Effective Magnetic Volume (Ve) mm鲁 : 101000
Finish : Uncoated
Supplier Device Package : PM 74 x 59
Height : 29.50mm
Length : -
Width : -
Diameter : 74.00mm
0
100 in stock
B65686A0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65686
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 10µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1290
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.162
Effective Length (le) mm : 128
Effective Area (Ae) mm² : 790
Minimum Core Cross Section (Amin) mm² : 630
Effective Magnetic Volume (Ve) mm鲁 : 101000
Finish : Uncoated
Supplier Device Package : PM 74 x 59
Height : 29.50mm
Length : -
Width : -
Diameter : 74.00mm
Series : B65686
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 10µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1290
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.162
Effective Length (le) mm : 128
Effective Area (Ae) mm² : 790
Minimum Core Cross Section (Amin) mm² : 630
Effective Magnetic Volume (Ve) mm鲁 : 101000
Finish : Uncoated
Supplier Device Package : PM 74 x 59
Height : 29.50mm
Length : -
Width : -
Diameter : 74.00mm
0
54 in stock
B65686A0315A027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65686
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 315nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 41
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.162
Effective Length (le) mm : 128
Effective Area (Ae) mm² : 790
Minimum Core Cross Section (Amin) mm² : 630
Effective Magnetic Volume (Ve) mm鲁 : 101000
Finish : Uncoated
Supplier Device Package : PM 74 x 59
Height : 29.50mm
Length : -
Width : -
Diameter : 74.00mm
Series : B65686
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 315nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 41
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.162
Effective Length (le) mm : 128
Effective Area (Ae) mm² : 790
Minimum Core Cross Section (Amin) mm² : 630
Effective Magnetic Volume (Ve) mm鲁 : 101000
Finish : Uncoated
Supplier Device Package : PM 74 x 59
Height : 29.50mm
Length : -
Width : -
Diameter : 74.00mm
0
5 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
