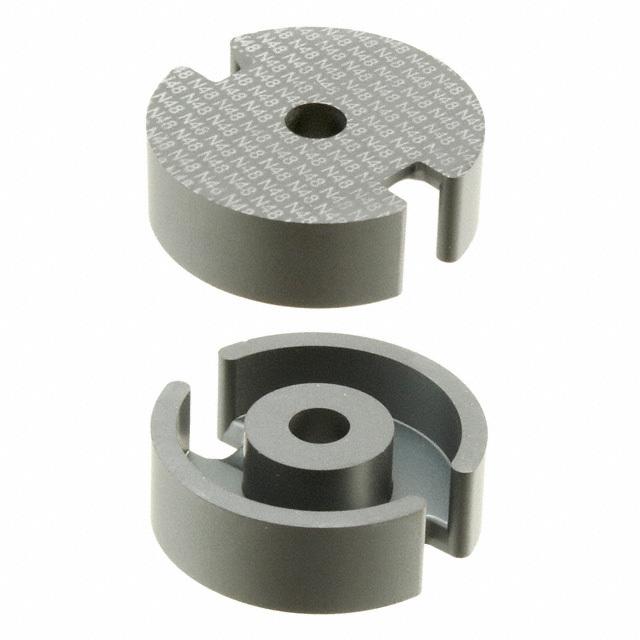

B65701D0000R048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 6.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1630
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 45
Effective Area (Ae) mm² : 136
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6120
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 6.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1630
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 45
Effective Area (Ae) mm² : 136
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6120
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
0
1198 in stock

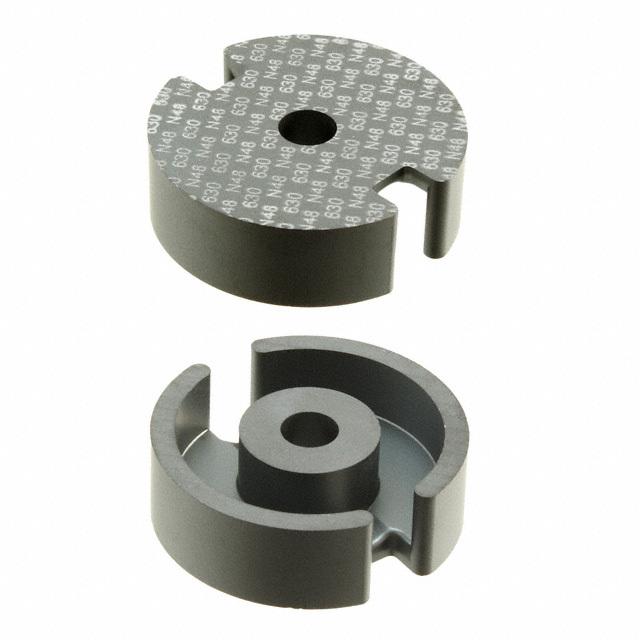

B65701T0630A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 630nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 166
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 45
Effective Area (Ae) mm² : 136
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6120
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 630nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 166
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 45
Effective Area (Ae) mm² : 136
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6120
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
0
100 in stock

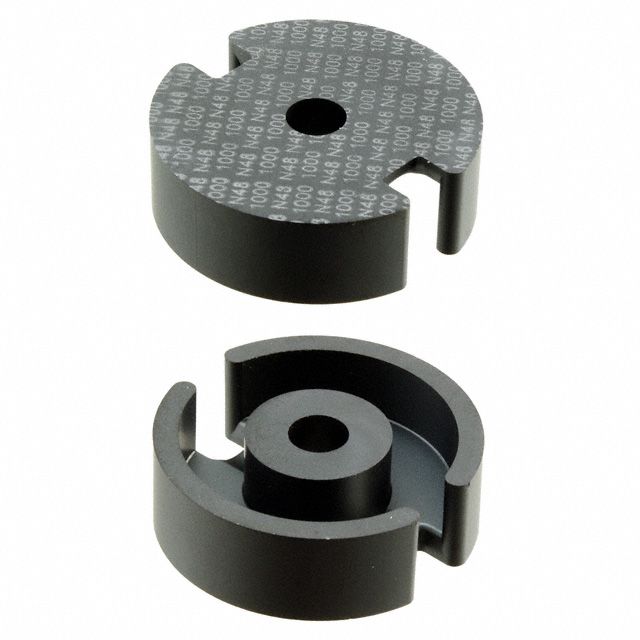

B65701T1000A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 1µH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 263
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 45
Effective Area (Ae) mm² : 136
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6120
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 1µH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 263
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 45
Effective Area (Ae) mm² : 136
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6120
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
0
254 in stock
B65701W0000R030
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 11.5µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2900
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.32
Effective Length (le) mm : 46
Effective Area (Ae) mm² : 145
Minimum Core Cross Section (Amin) mm² : 117
Effective Magnetic Volume (Ve) mm鲁 : 6670
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 11.5µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2900
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.32
Effective Length (le) mm : 46
Effective Area (Ae) mm² : 145
Minimum Core Cross Section (Amin) mm² : 117
Effective Magnetic Volume (Ve) mm鲁 : 6670
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
0
46 in stock
B65701W0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 6.4µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1620
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.32
Effective Length (le) mm : 46
Effective Area (Ae) mm² : 145
Minimum Core Cross Section (Amin) mm² : 117
Effective Magnetic Volume (Ve) mm鲁 : 6670
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 6.4µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1620
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.32
Effective Length (le) mm : 46
Effective Area (Ae) mm² : 145
Minimum Core Cross Section (Amin) mm² : 117
Effective Magnetic Volume (Ve) mm鲁 : 6670
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
0
143 in stock

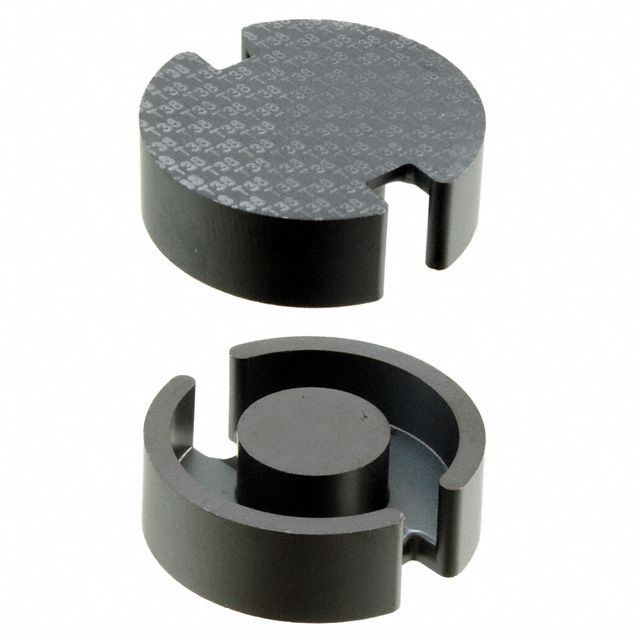

B65701W0000Y038
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 28µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 7070
Initial Permeability (µi) : 10000
Material : T38
Core Factor (危I/A) mm1 : 0.32
Effective Length (le) mm : 46
Effective Area (Ae) mm² : 145
Minimum Core Cross Section (Amin) mm² : 117
Effective Magnetic Volume (Ve) mm鲁 : 6670
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
Series : B65701
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 28µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 7070
Initial Permeability (µi) : 10000
Material : T38
Core Factor (危I/A) mm1 : 0.32
Effective Length (le) mm : 46
Effective Area (Ae) mm² : 145
Minimum Core Cross Section (Amin) mm² : 117
Effective Magnetic Volume (Ve) mm鲁 : 6670
Finish : Uncoated
Supplier Device Package : P 30 x 19
Height : 9.50mm
Length : -
Width : -
Diameter : 30.50mm
0
100 in stock
B65713A0000R027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65713
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 12µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1530
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.16
Effective Length (le) mm : 146
Effective Area (Ae) mm² : 910
Minimum Core Cross Section (Amin) mm² : 700
Effective Magnetic Volume (Ve) mm鲁 : 133000
Finish : Uncoated
Supplier Device Package : PM 87 x 70
Height : 35.00mm
Length : -
Width : -
Diameter : 87.00mm
Series : B65713
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 12µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1530
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.16
Effective Length (le) mm : 146
Effective Area (Ae) mm² : 910
Minimum Core Cross Section (Amin) mm² : 700
Effective Magnetic Volume (Ve) mm鲁 : 133000
Finish : Uncoated
Supplier Device Package : PM 87 x 70
Height : 35.00mm
Length : -
Width : -
Diameter : 87.00mm
0
100 in stock

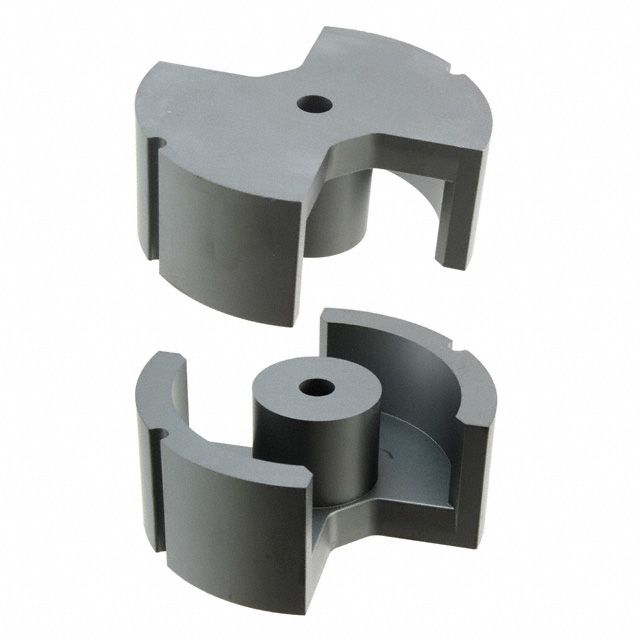

B65713A0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65713
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 12µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1530
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.16
Effective Length (le) mm : 146
Effective Area (Ae) mm² : 910
Minimum Core Cross Section (Amin) mm² : 700
Effective Magnetic Volume (Ve) mm鲁 : 133000
Finish : Uncoated
Supplier Device Package : PM 87 x 70
Height : 35.00mm
Length : -
Width : -
Diameter : 87.00mm
Series : B65713
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 12µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1530
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.16
Effective Length (le) mm : 146
Effective Area (Ae) mm² : 910
Minimum Core Cross Section (Amin) mm² : 700
Effective Magnetic Volume (Ve) mm鲁 : 133000
Finish : Uncoated
Supplier Device Package : PM 87 x 70
Height : 35.00mm
Length : -
Width : -
Diameter : 87.00mm
0
6 in stock

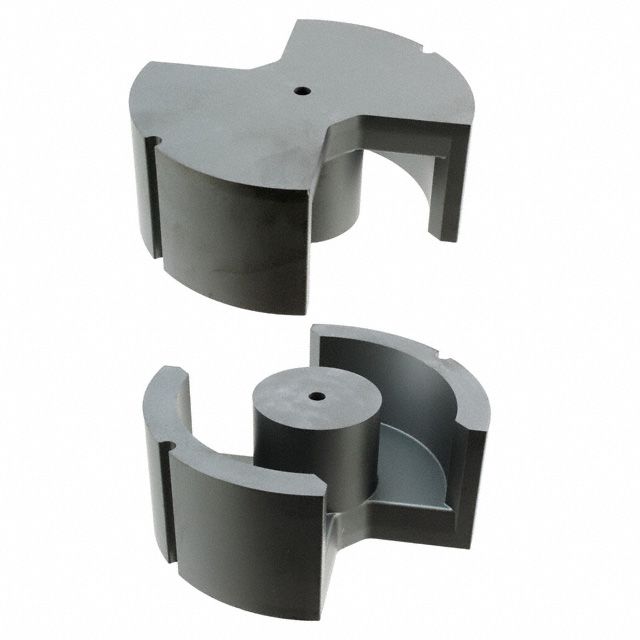

B65733A0000R027
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65733
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 16µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1480
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.116
Effective Length (le) mm : 200
Effective Area (Ae) mm² : 1720
Minimum Core Cross Section (Amin) mm² : 1380
Effective Magnetic Volume (Ve) mm鲁 : 344000
Finish : Uncoated
Supplier Device Package : PM 114 x 93
Height : 46.50mm
Length : -
Width : -
Diameter : 114.00mm
Series : B65733
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 16µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1480
Initial Permeability (µi) : 2000
Material : N27
Core Factor (危I/A) mm1 : 0.116
Effective Length (le) mm : 200
Effective Area (Ae) mm² : 1720
Minimum Core Cross Section (Amin) mm² : 1380
Effective Magnetic Volume (Ve) mm鲁 : 344000
Finish : Uncoated
Supplier Device Package : PM 114 x 93
Height : 46.50mm
Length : -
Width : -
Diameter : 114.00mm
0
2 in stock

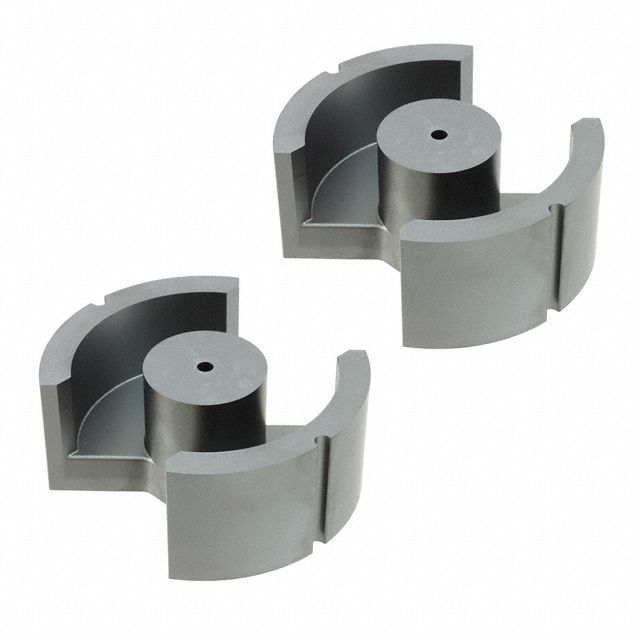

B65733A0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65733
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 16µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1480
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.116
Effective Length (le) mm : 200
Effective Area (Ae) mm² : 1720
Minimum Core Cross Section (Amin) mm² : 1380
Effective Magnetic Volume (Ve) mm鲁 : 344000
Finish : Uncoated
Supplier Device Package : PM 114 x 93
Height : 46.50mm
Length : -
Width : -
Diameter : 114.00mm
Series : B65733
Part Status : Active
Core Type : PM
Inductance Factor (Al) : 16µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1480
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.116
Effective Length (le) mm : 200
Effective Area (Ae) mm² : 1720
Minimum Core Cross Section (Amin) mm² : 1380
Effective Magnetic Volume (Ve) mm鲁 : 344000
Finish : Uncoated
Supplier Device Package : PM 114 x 93
Height : 46.50mm
Length : -
Width : -
Diameter : 114.00mm
0
6 in stock
B65803A0160A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
0
100 in stock

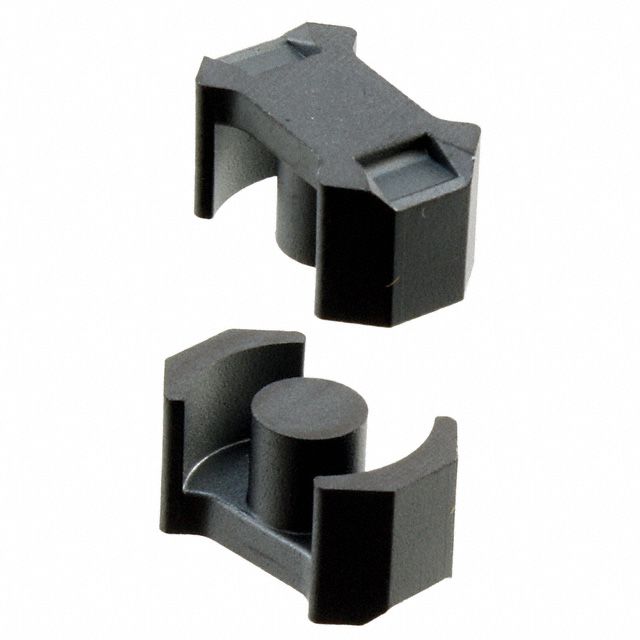

B65803J0000R030
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65803
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 1.9µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2560
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 1.7
Effective Length (le) mm : 22
Effective Area (Ae) mm² : 13
Minimum Core Cross Section (Amin) mm² : 11.3
Effective Magnetic Volume (Ve) mm鲁 : 286
Finish : Uncoated
Supplier Device Package : RM 4
Height : 5.25mm
Length : 11.00mm
Width : 4.60mm
Diameter : -
Series : B65803
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 1.9µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2560
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 1.7
Effective Length (le) mm : 22
Effective Area (Ae) mm² : 13
Minimum Core Cross Section (Amin) mm² : 11.3
Effective Magnetic Volume (Ve) mm鲁 : 286
Finish : Uncoated
Supplier Device Package : RM 4
Height : 5.25mm
Length : 11.00mm
Width : 4.60mm
Diameter : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
