Part Number
Manufacturer
Description
Unit Price
In Stock

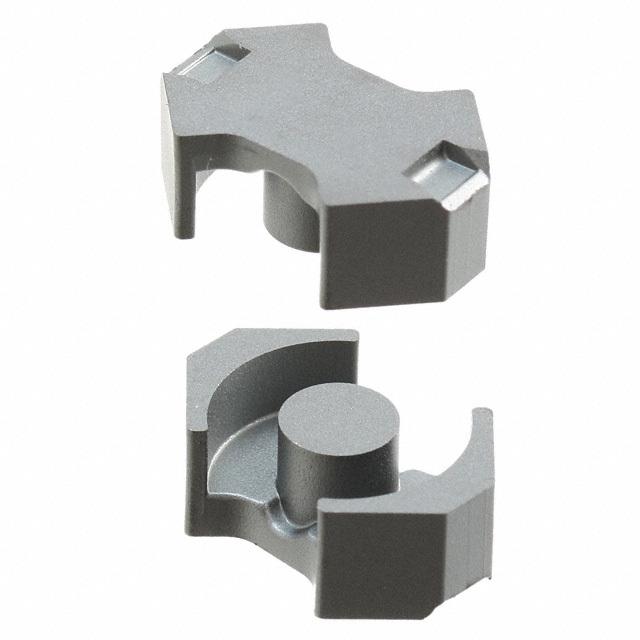

B65805J0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1480
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1480
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
100 in stock
B65805J0000R097
EPCOS
Manufacturer : EPCOS (TDK)
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
0
500 in stock
B65805J0000R608
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : -
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 590
Initial Permeability (µi) : 800
Material : PC200
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 10.50mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : -
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 590
Initial Permeability (µi) : 800
Material : PC200
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 10.50mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
100 in stock
B65805J0000Y038
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 6.7µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 4950
Initial Permeability (µi) : 10000
Material : T38
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 6.7µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 4950
Initial Permeability (µi) : 10000
Material : T38
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
100 in stock
B65805J0000Y066
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 9.6µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 7090
Initial Permeability (µi) : 13000
Material : T66
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 9.6µH
Tolerance : -30%, +40%
Gap : Ungapped
Effective Permeability (µe) : 7090
Initial Permeability (µi) : 13000
Material : T66
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
496 in stock

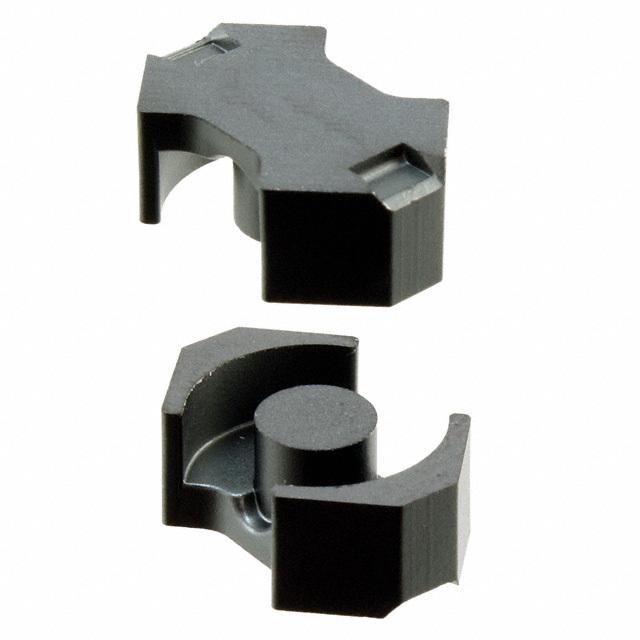

B65805J0160A087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 118
Initial Permeability (µi) : -
Material : N87
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 118
Initial Permeability (µi) : -
Material : N87
Core Factor (危I/A) mm1 : 0.93
Effective Length (le) mm : 22.1
Effective Area (Ae) mm² : 23.8
Minimum Core Cross Section (Amin) mm² : 18
Effective Magnetic Volume (Ve) mm鲁 : 526
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
100 in stock
B65805J0250A087
EPCOS
Manufacturer : EPCOS (TDK)
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
0
100 in stock
B65805N0040A001
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 40nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 31.8
Initial Permeability (µi) : 80
Material : K1
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 40nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 31.8
Initial Permeability (µi) : 80
Material : K1
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
673 in stock

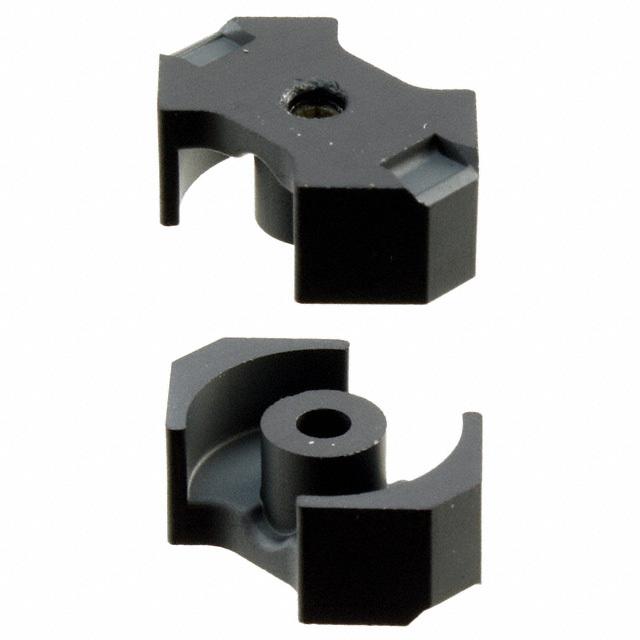

B65805N0100A033
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 100nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 79.6
Initial Permeability (µi) : -
Material : M33
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 100nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 79.6
Initial Permeability (µi) : -
Material : M33
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
100 in stock

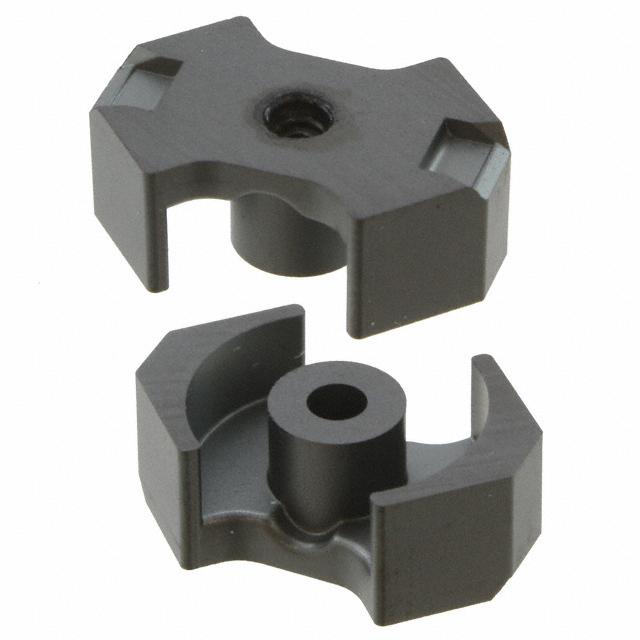

B65805N0250A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 250nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 199
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 250nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 199
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
530 in stock

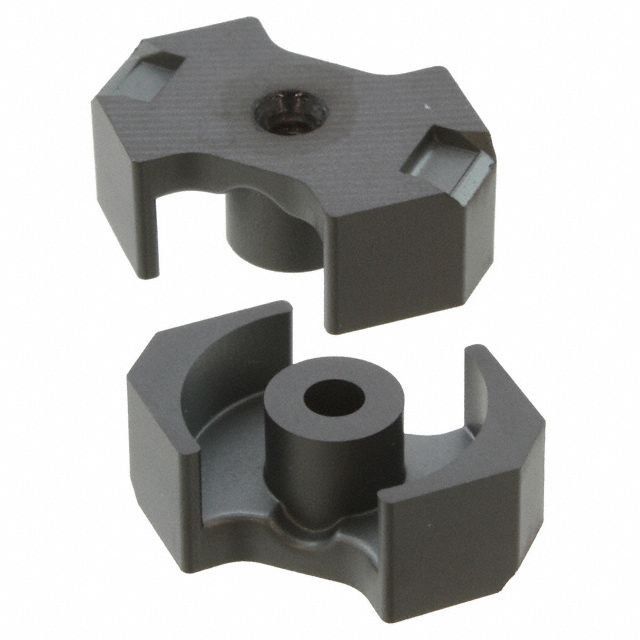

B65805N0315A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 315nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 251
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
Series : B65805
Part Status : Active
Core Type : RM
Inductance Factor (Al) : 315nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 251
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 20.8
Effective Area (Ae) mm² : 20.8
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 433
Finish : Uncoated
Supplier Device Package : RM 5
Height : 5.25mm
Length : 14.60mm
Width : 6.80mm
Diameter : -
0
6244 in stock
B65805P0000R087
EPCOS
Manufacturer : EPCOS (TDK)
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
Series : *
Part Status : Active
Core Type : -
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : -
Supplier Device Package : -
Height : -
Length : -
Width : -
Diameter : -
0
490 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
