Part Number

Manufacturer

Description

Unit Price

In Stock

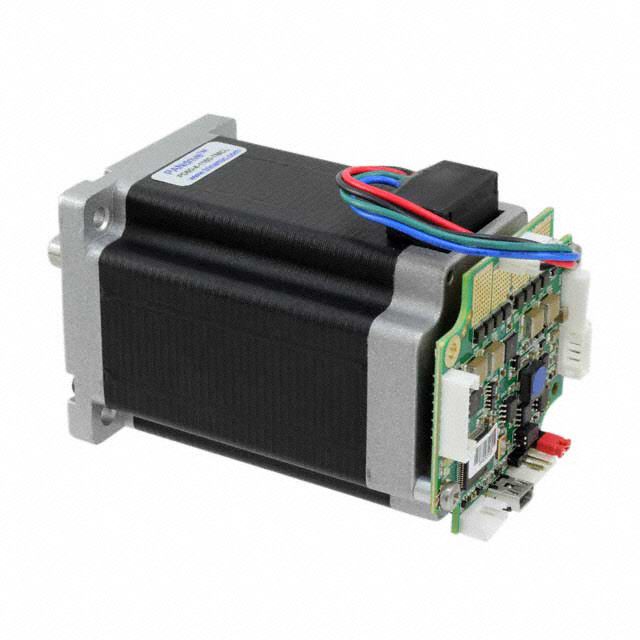

PD60-4-1160-TMCL

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft

0

28 in stock

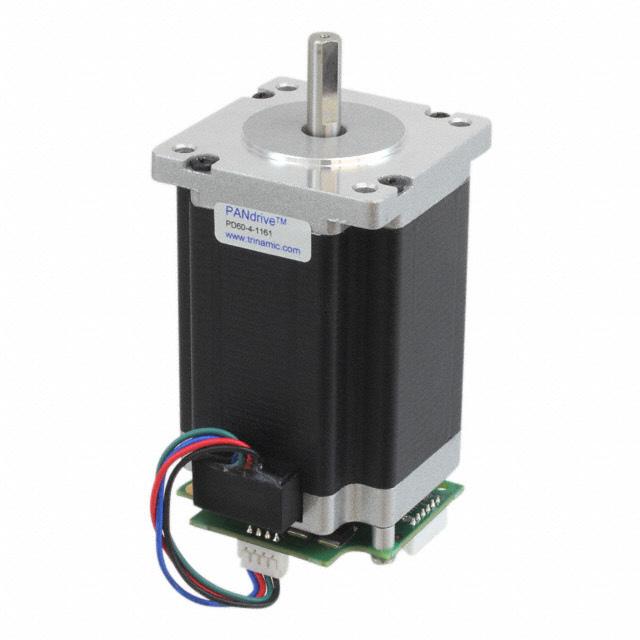

PD60-4-1161

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft

0

48 in stock

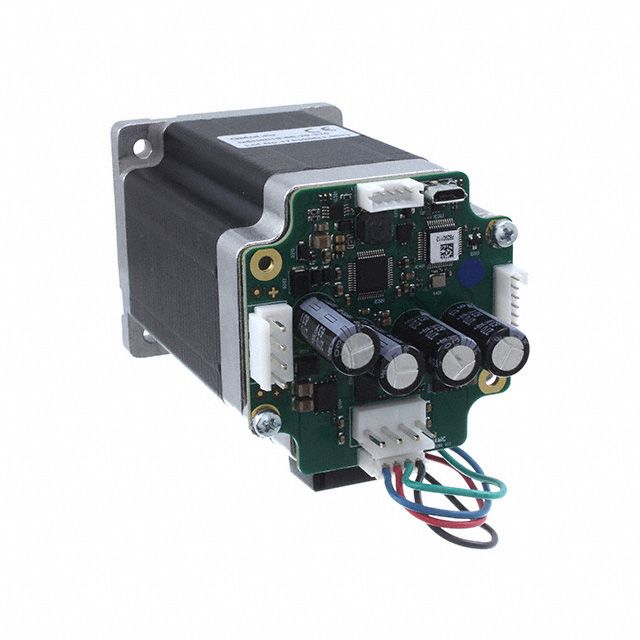

PD-60-4-1260-CANOPEN

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.8VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft

0

4 in stock

PD-60-4-1260-TMCL

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.8VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft

0

5 in stock

PD60-4-1276-CANOPEN

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Integrated Controller, Flatted Shaft

0

5 in stock

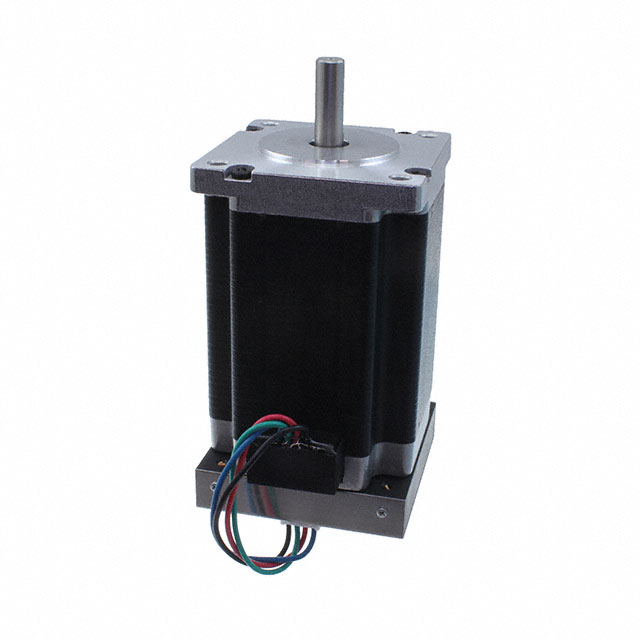

PD60-4-1276-TMCL

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Integrated Controller, Flatted Shaft

0

5 in stock

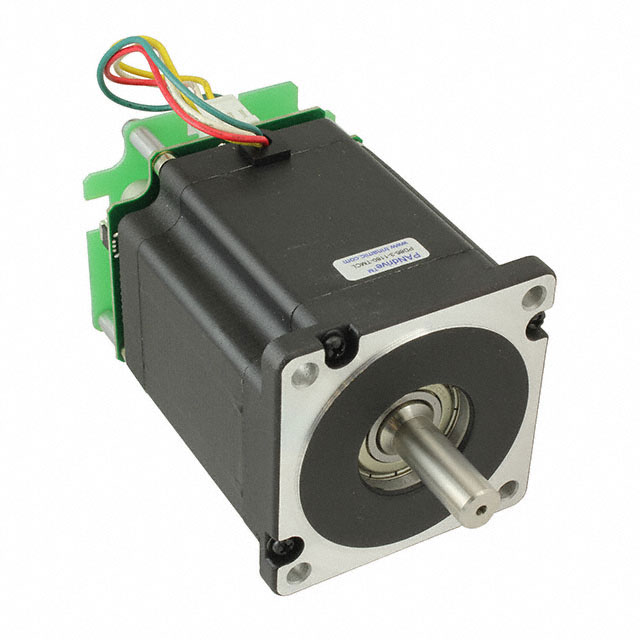

PD86-3-1180-CANOPEN

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.382" x 3.382" (85.90mm x 85.90mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft

0

5 in stock

PD86-3-1180-TMCL

TRINAMIC Motion Control GmbH

Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.382" x 3.382" (85.90mm x 85.90mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft

0

46 in stock

PG0024-08M000

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : *
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -

0

100 in stock

PG10-K20-HHE4

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : *
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -

0

100 in stock

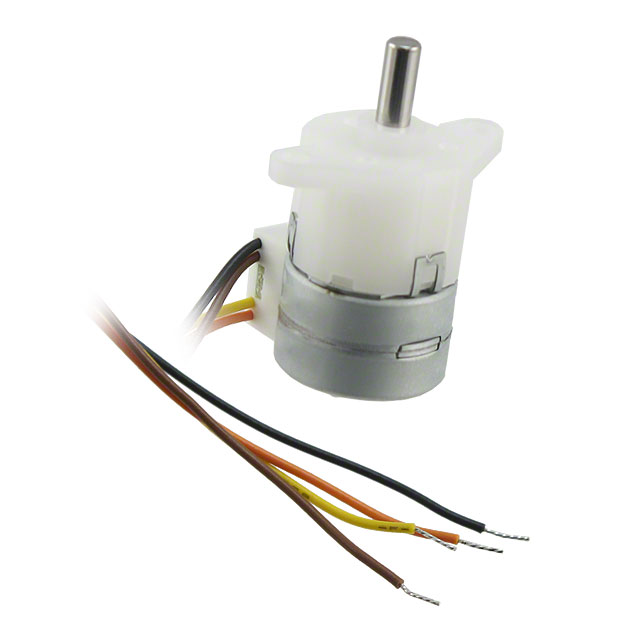

PG15S-D20-HHB9

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : PG
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 15VDC
Current Rating : 100mA
Steps per Revolution : 2048
Step Angle : 0.176°
Accuracy : -
Torque - Holding (oz-in / mNm) : 21.2 / 150
Size / Dimension : Round - 0.591" Dia (15.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.354" (9.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 10 Ohms
Features : Round Shaft

0

417 in stock

PG15S-J20-HHF3

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : PG
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 1000
Step Angle : 0.36°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.591" Dia (15.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.354" (9.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Wire Leads
Operating Temperature : 0°C ~ 50°C
Coil Resistance : 10 Ohms
Features : Round Shaft

0

100 in stock
