Part Number
Manufacturer
Description
Unit Price
In Stock

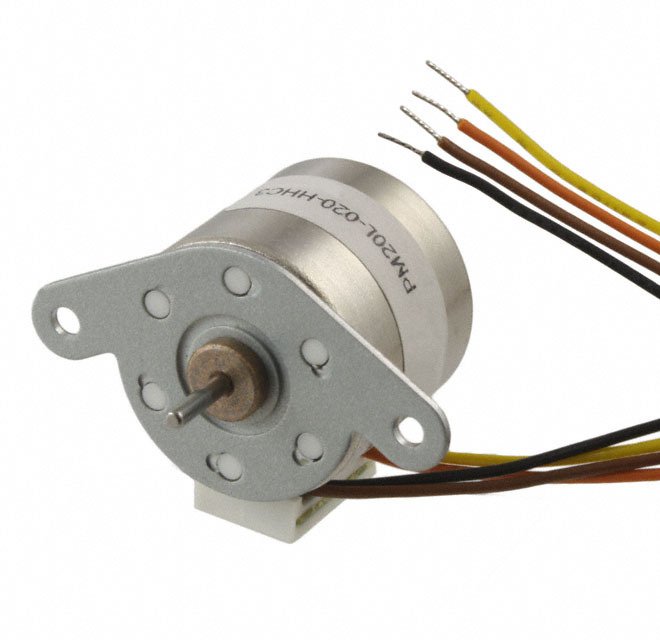

PM20L-020-HHC3
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 20
Step Angle : 18°
Accuracy : -
Torque - Holding (oz-in / mNm) : 2.1 / 15
Size / Dimension : Round - 0.787" Dia (20.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.315" (8.00mm)
Mounting Hole Spacing : 1.100" (28.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 13 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 20
Step Angle : 18°
Accuracy : -
Torque - Holding (oz-in / mNm) : 2.1 / 15
Size / Dimension : Round - 0.787" Dia (20.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.315" (8.00mm)
Mounting Hole Spacing : 1.100" (28.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 13 Ohms
Features : Round Shaft
0
130 in stock

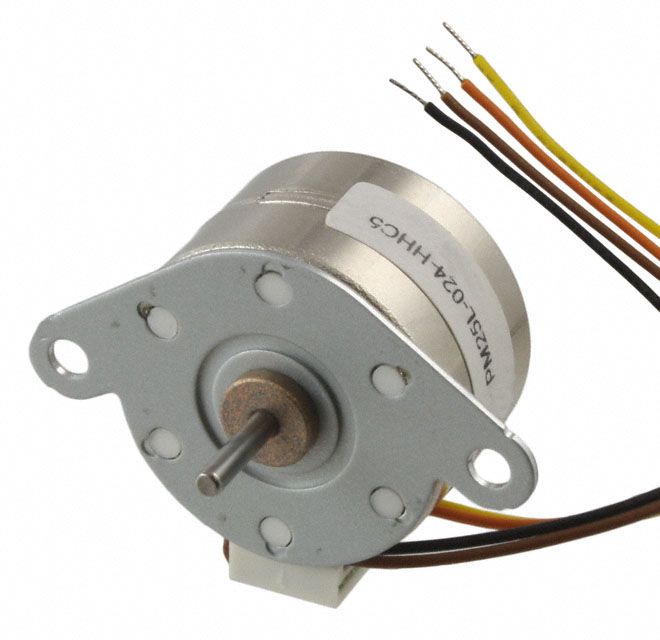

PM25L-024-HHC5
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.7 / 26
Size / Dimension : Round - 0.984" Dia (25.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.260" (32.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.7 / 26
Size / Dimension : Round - 0.984" Dia (25.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.260" (32.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
0
45 in stock
PM25S-024-M2.6
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
0
100 in stock

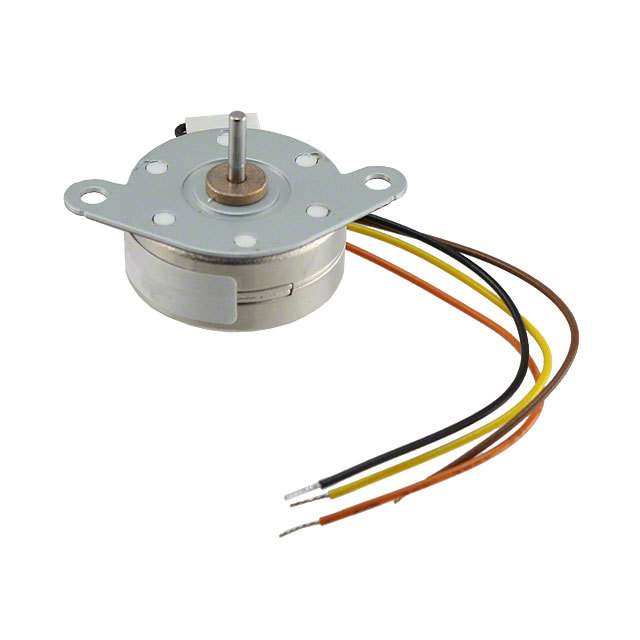

PM25S-048-HHC4
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 0.984" Dia (25.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.260" (32.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 16 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 0.984" Dia (25.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.260" (32.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 16 Ohms
Features : Round Shaft
0
157 in stock

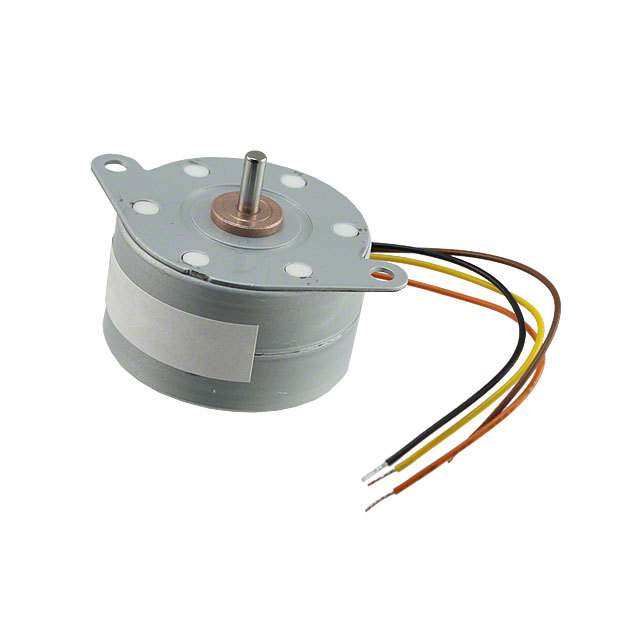

PM35L-048-HHC7
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.9 / 49
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.9 / 49
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
0
22 in stock

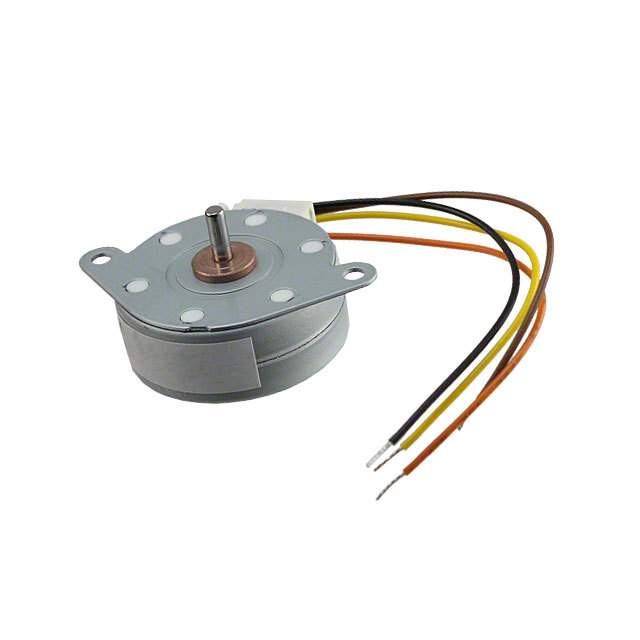

PM35S-048-HHC6
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.9 / 49
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.9 / 49
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
0
83 in stock

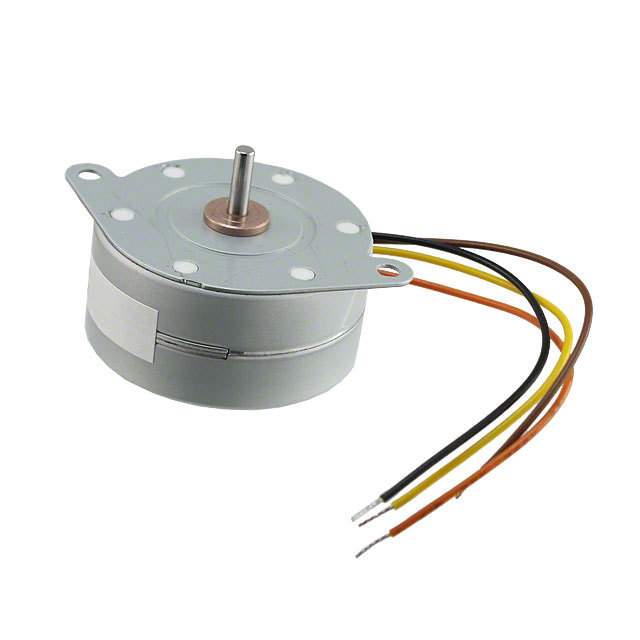

PM42L-048-HHC9
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17.6 / 124
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 7 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17.6 / 124
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 7 Ohms
Features : Round Shaft
0
32 in stock

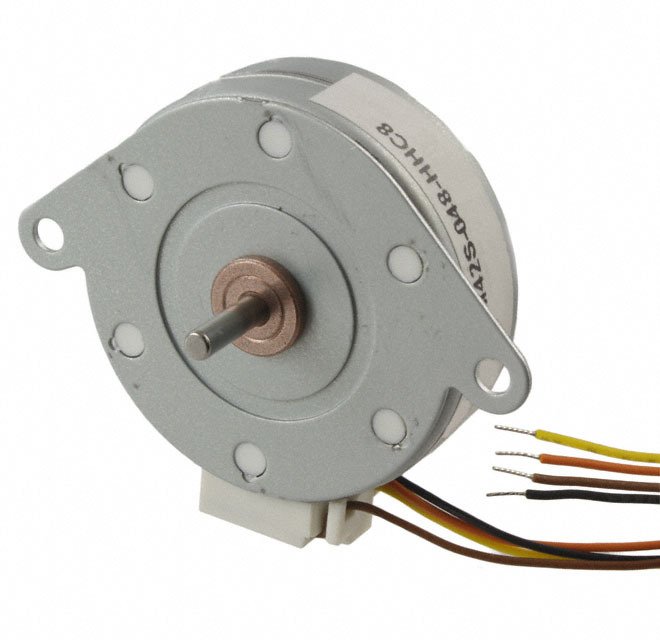

PM42S-048-HHC8
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 9.3 / 66
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 9.3 / 66
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
0
53 in stock

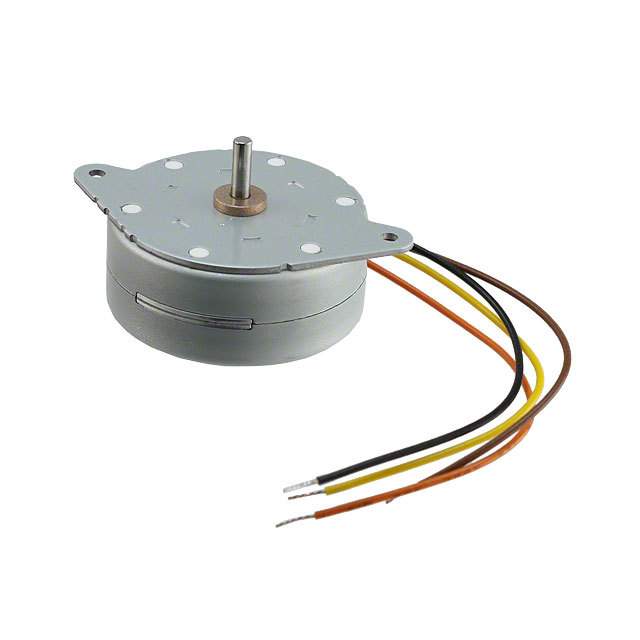

PM55L-048-HHD0
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 23.4 / 167
Size / Dimension : Round - 2.160" Dia (55.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.591" (15.00mm)
Mounting Hole Spacing : 2.560" (65.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 23.4 / 167
Size / Dimension : Round - 2.160" Dia (55.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.591" (15.00mm)
Mounting Hole Spacing : 2.560" (65.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
0
4 in stock

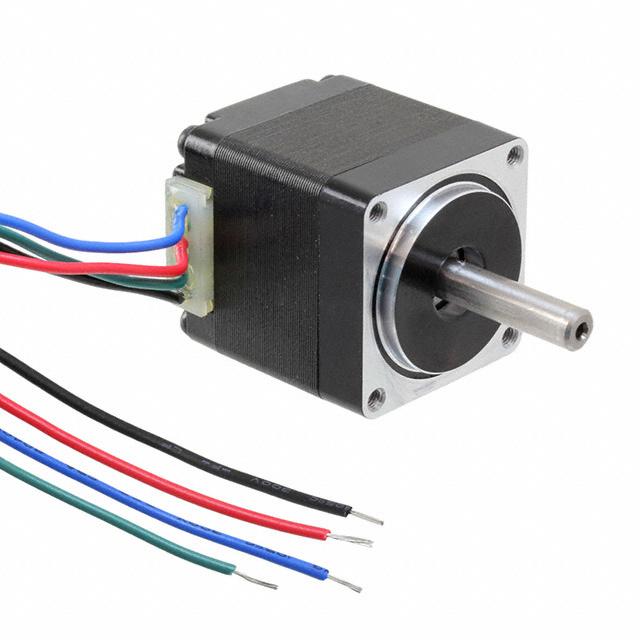

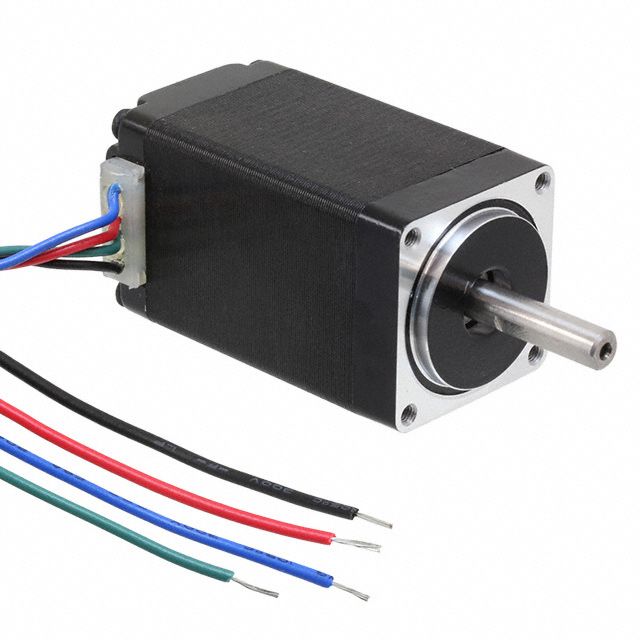

QSH2818-32-07-006
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.8VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 8.49 / 60
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.6 Ohms
Features : Flatted Shaft
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.8VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 8.49 / 60
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.6 Ohms
Features : Flatted Shaft
0
147 in stock
QSH2818-51-07-012
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.2VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 16.99 / 120
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 9.2 Ohms
Features : Flatted Shaft
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.2VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 16.99 / 120
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 9.2 Ohms
Features : Flatted Shaft
0
73 in stock
QSH4218-35-10-027
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5.3VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 38.2 / 270
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.3 Ohms
Features : Flatted Shaft
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5.3VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 38.2 / 270
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.3 Ohms
Features : Flatted Shaft
0
515 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
