Part Number
Manufacturer
Description
Unit Price
In Stock

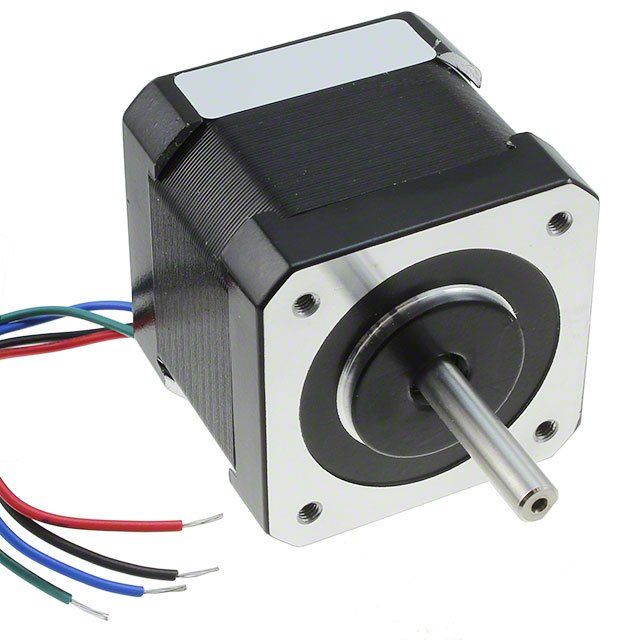

QSH4218-41-10-035
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 49.56 / 350
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 4.5 Ohms
Features : Flatted Shaft
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 49.56 / 350
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 4.5 Ohms
Features : Flatted Shaft
0
78 in stock

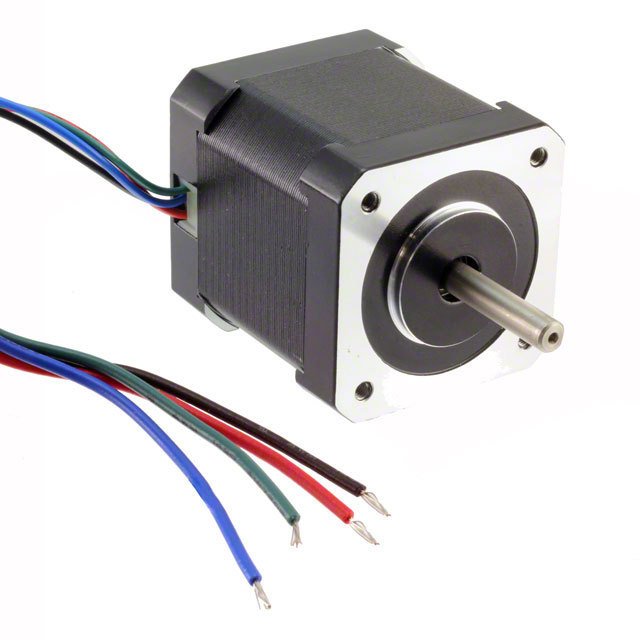

QSH4218-47-28-040
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 1.4VDC
Current Rating : 2.81A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 56.3 / 400
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 1.4VDC
Current Rating : 2.81A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 56.3 / 400
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
100 in stock

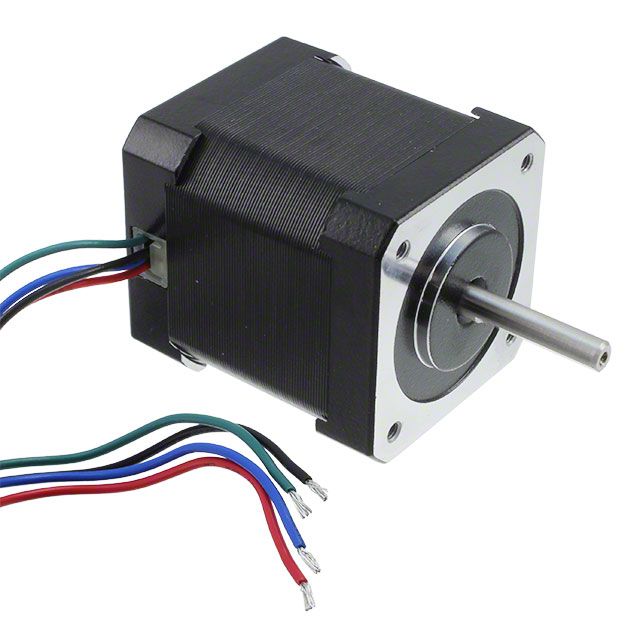

QSH4218-51-10-049
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 69.39 / 490
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5 Ohms
Features : Flatted Shaft
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 69.39 / 490
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5 Ohms
Features : Flatted Shaft
0
203 in stock

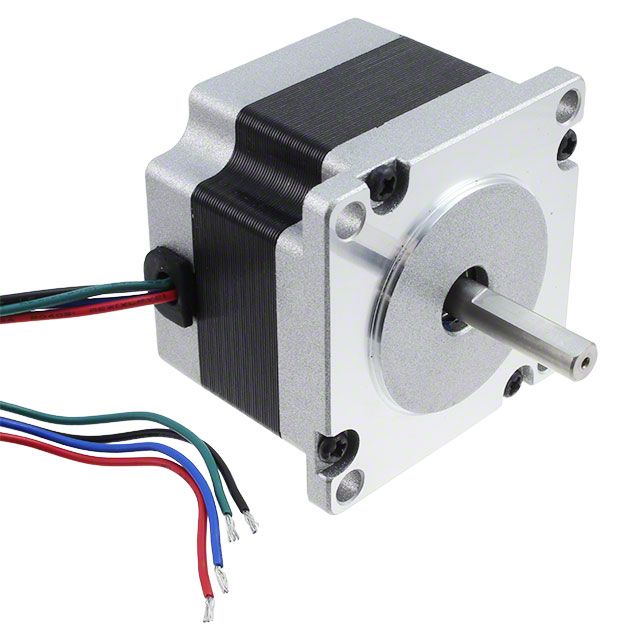

QSH5718-41-28-055
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 77.89 / 550
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 77.89 / 550
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
0
57 in stock

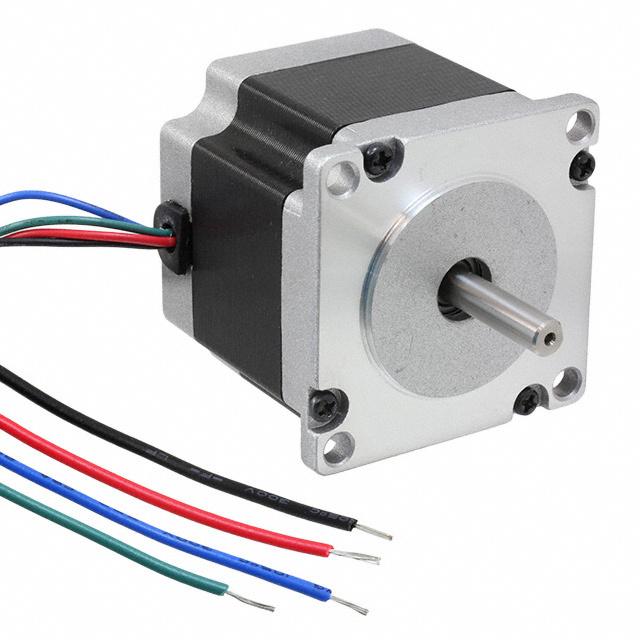

QSH5718-51-28-101
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.3VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 143.05 / 1010
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 830 mOhms
Features : Flatted Shaft
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.3VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 143.05 / 1010
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 830 mOhms
Features : Flatted Shaft
0
12 in stock

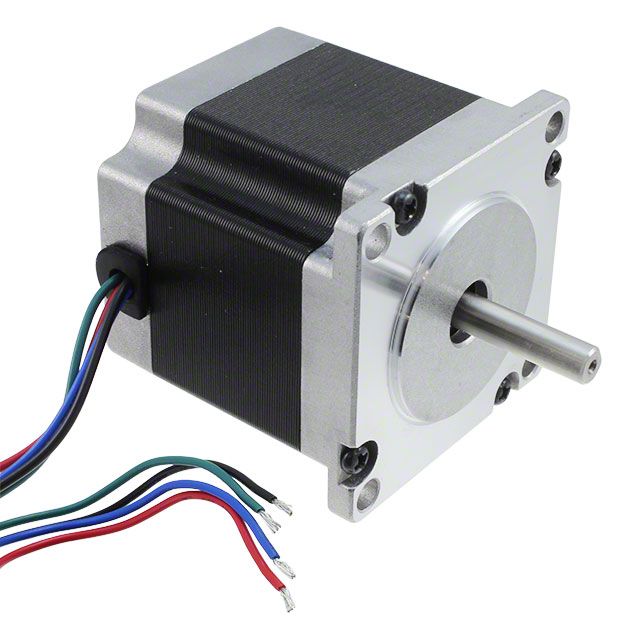

QSH5718-56-28-126
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.5VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 178.43 / 1260
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 900 mOhms
Features : Flatted Shaft
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.5VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 178.43 / 1260
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 900 mOhms
Features : Flatted Shaft
0
54 in stock

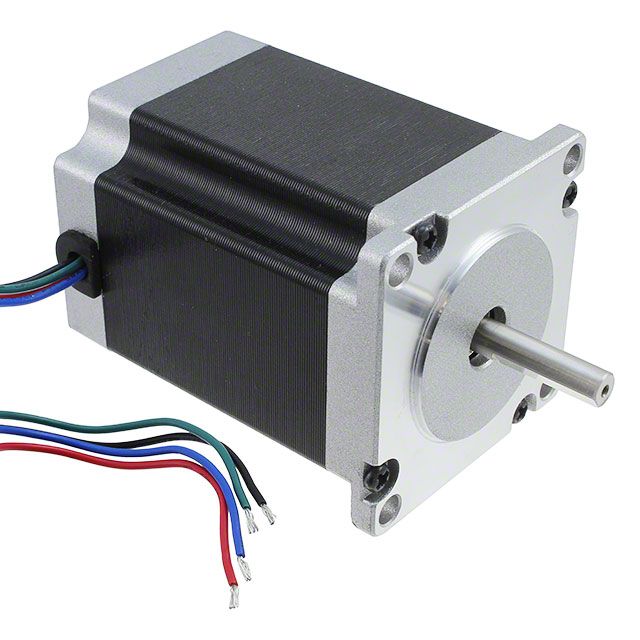

QSH5718-76-28-189
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 267.64 / 1890
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.13 Ohms
Features : Flatted Shaft
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 267.64 / 1890
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.13 Ohms
Features : Flatted Shaft
0
31 in stock

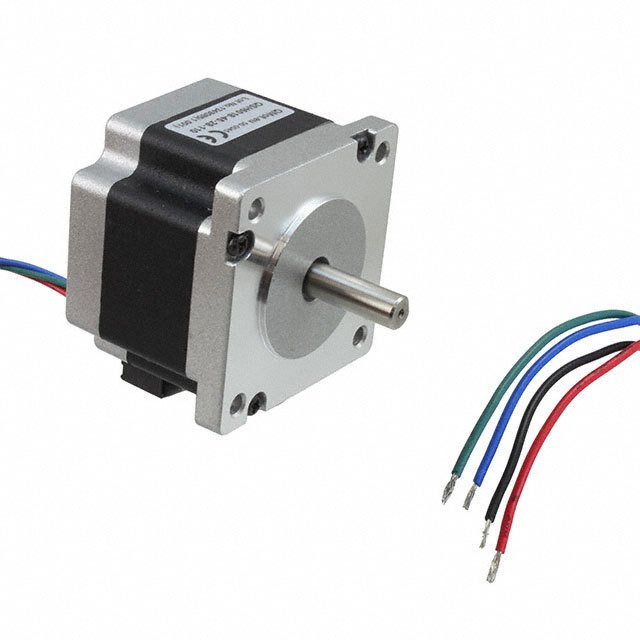

QSH6018-45-28-110
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.1VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 155.77 / 1100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.1VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 155.77 / 1100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
0
27 in stock

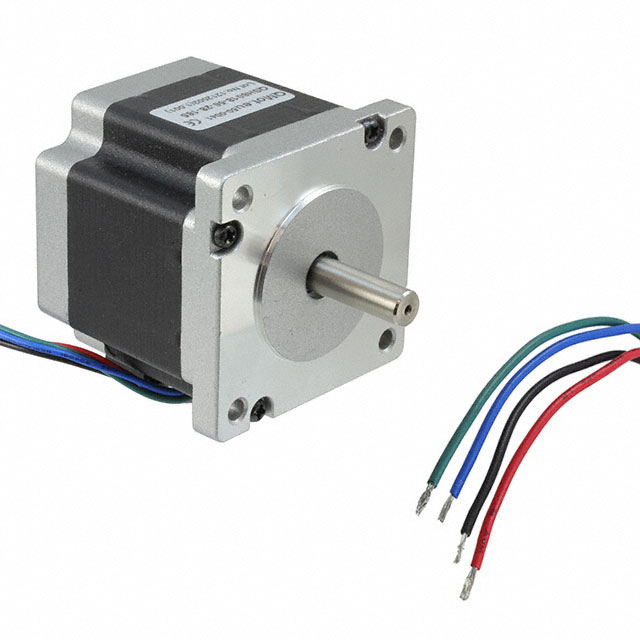

QSH6018-56-28-165
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.52VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 233.66 / 1650
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 900 mOhms
Features : Flatted Shaft
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.52VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 233.66 / 1650
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 900 mOhms
Features : Flatted Shaft
0
24 in stock
QSH6018-65-28-210
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.36VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 297.38 / 2100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Flatted Shaft
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.36VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 297.38 / 2100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Flatted Shaft
0
39 in stock
QSH6018-86-28-310
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
93 in stock
QSH8618-96-55-700
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH8618
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.56VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.380" x 3.380" (85.85mm x 85.85mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 450 mOhms
Features : Flatted Shaft
Series : QMot QSH8618
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.56VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.380" x 3.380" (85.85mm x 85.85mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 450 mOhms
Features : Flatted Shaft
0
9 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
