Part Number

Manufacturer

Description

Unit Price

In Stock

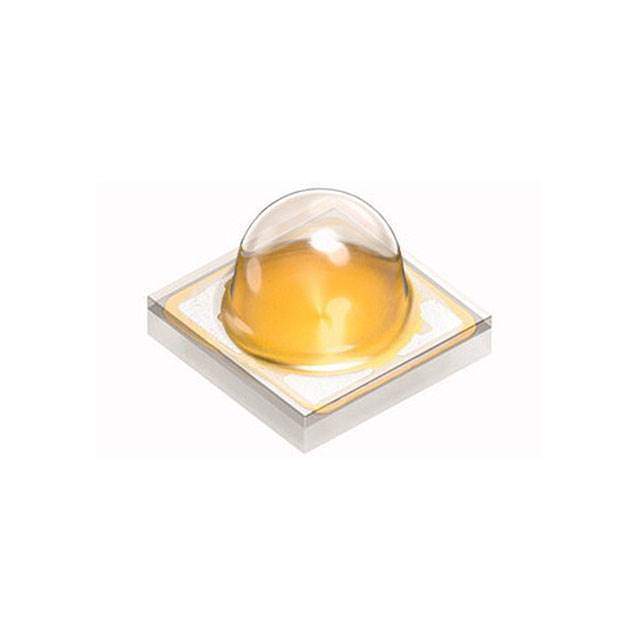

LR CP7P-JSJU-1-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : OSLON® SSL 80
Part Status : Discontinued at
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 85 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 64 lm (56 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.092" (2.33mm)

100 in stock

LR CP7P-JTJU-1-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 80
Part Status : Discontinued at
Color : Red
Wavelength : 656nm (646nm ~ 666nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

LR CP7P-JTJU-1-1-350-R18-LM

OSRAM Opto Semiconductors, Inc.

100 in stock

LR CP7P-JYKX-1-0-400-R18-Z

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON SSL
Part Status : Discontinued at
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 67 lm (52 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

LR CP7P-JZKX-1-0-400-R18-Z-CK

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON SSL
Part Status : Discontinued at
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 72 lm (61 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

LR CPDP-HZKX-1-0-400-R18-Z

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : OSLON SSL
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 61 lm (39 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.062" (1.58mm)

100 in stock

LR CPDP-JRJT-1-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : OSLON® SSL 150
Part Status : Discontinued at
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 78 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 59 lm (52 lm ~ 66 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.062" (1.58mm)

100 in stock

LR CPDP-JRJT-1-0-350-R18-SHR

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : *
Part Status : Obsolete
Color : -
Wavelength : -
Current - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
Flux @ Current/Temperature - Test : -
Temperature - Test : -
Viewing Angle : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

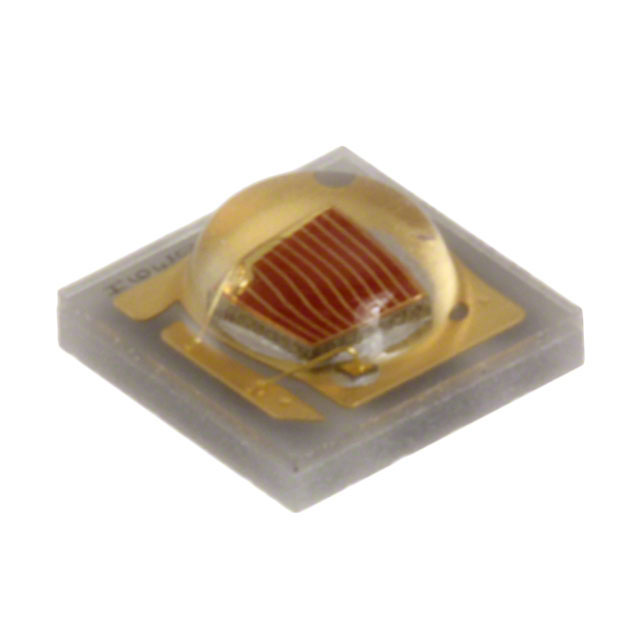

LR CPDP-JSJU-1-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : OSLON® SSL 150
Part Status : Discontinued at
Color : Red
Wavelength : 631nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 85 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 64 lm (56 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.062" (1.58mm)

100 in stock

LR CPDP-JTJU-1-0-350-R18-XX

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 150
Part Status : Discontinued at
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 76 lm (61 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

LR CPDP-JTKQ-1-0-350-R18-XX

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 150
Part Status : Discontinued at
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 72 lm (61 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

LR G5AP-BZCZ-1-1-100-R18-Z

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Advanced Power TOPLED® Plus
Part Status : Not For New Designs
Color : Red
Wavelength : 622nm (616nm ~ 628nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.03V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 13 lm (10 lm ~ 16 lm)
Temperature - Test : 25°C
Viewing Angle : 145°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-PLCC
Size / Dimension : 0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max) : 0.069" (1.75mm)

100 in stock
