Welcome to Weijie Semiconductor
- Optoelectronics
- LED Lighting - Color
Part Number
Manufacturer
Description
Unit Price
In Stock
LR G6SP-CBEA-1-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Advanced Power TOPLED®
Part Status : Active
Color : Red
Wavelength : 625nm (620nm ~ 629nm)
Current - Test : 140mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : 61 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 18 lm (12 lm ~ 24 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 6-SMD, J-Lead
Supplier Device Package : 6-SMD
Size / Dimension : 0.130" L x 0.118" W (3.30mm x 3.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Advanced Power TOPLED®
Part Status : Active
Color : Red
Wavelength : 625nm (620nm ~ 629nm)
Current - Test : 140mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : 61 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 18 lm (12 lm ~ 24 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 6-SMD, J-Lead
Supplier Device Package : 6-SMD
Size / Dimension : 0.130" L x 0.118" W (3.30mm x 3.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
863 in stock
LR H9GP-HZKX-1-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® Black
Part Status : Active
Color : Red
Wavelength : 625nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 61 lm (39 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 1515 (3838 Metric)
Supplier Device Package : 3-SMD
Size / Dimension : 0.152" L x 0.152" W (3.85mm x 3.85mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® Black
Part Status : Active
Color : Red
Wavelength : 625nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 61 lm (39 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 1515 (3838 Metric)
Supplier Device Package : 3-SMD
Size / Dimension : 0.152" L x 0.152" W (3.85mm x 3.85mm)
Height - Seated (Max) : -
0
1487 in stock
LR H9PP-HZJZ-1-1-350-R18-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : OSLON® Black Flat
Part Status : Not For New Designs
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 55 lm (39 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1515 (3838 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.148" L x 0.148" W (3.75mm x 3.75mm)
Height - Seated (Max) : 0.032" (0.80mm)
Packaging : Tape & Reel (TR)
Series : OSLON® Black Flat
Part Status : Not For New Designs
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.15V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 55 lm (39 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1515 (3838 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.148" L x 0.148" W (3.75mm x 3.75mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
100 in stock
LR W51M-HXJY-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 51 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 45 lm (28 lm ~ 61 lm)
Temperature - Test : 25°C
Viewing Angle : 20°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.374" Dia (9.50mm)
Height - Seated (Max) : 0.272" (6.90mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 51 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 45 lm (28 lm ~ 61 lm)
Temperature - Test : 25°C
Viewing Angle : 20°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.374" Dia (9.50mm)
Height - Seated (Max) : 0.272" (6.90mm)
0
100 in stock

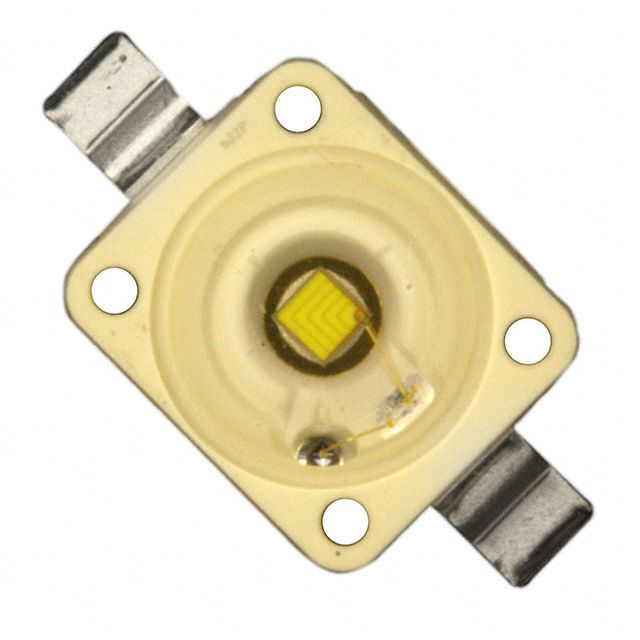

LR W5AM-HZJZ-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 55 lm (39 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
Packaging : Cut Tape (CT)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 55 lm (39 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
0
100 in stock
LR W5AM-HZKX-1-L-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 61 lm (39 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 61 lm (39 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
0
100 in stock
LR W5AM-JXJY-1-0-400-R18-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 53 lm (45 lm ~ 61 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 53 lm (45 lm ~ 61 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
0
100 in stock
LR W5AM-JYKX-1-0-400-R18-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 67 lm (52 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® Plus
Part Status : Obsolete
Color : Red
Wavelength : 626nm (620nm ~ 632nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 67 lm (52 lm ~ 82 lm)
Temperature - Test : 25°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
0
100 in stock

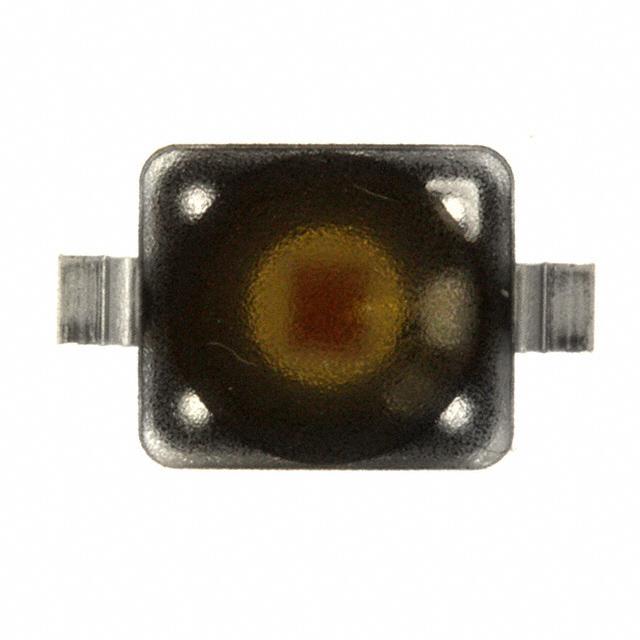

LR W5AP-KZMX-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Diamond Dragon
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 1.4A
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 2A
Flux @ Current/Temperature - Test : 154 lm (97 lm ~ 210 lm)
Temperature - Test : 25°C
Viewing Angle : 140°
Mounting Type : Surface Mount
Package / Case : 3026 (7767 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.303" L x 0.264" W (7.70mm x 6.70mm)
Height - Seated (Max) : 0.175" (4.45mm)
Packaging : Tape & Reel (TR)
Series : Diamond Dragon
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 1.4A
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 2A
Flux @ Current/Temperature - Test : 154 lm (97 lm ~ 210 lm)
Temperature - Test : 25°C
Viewing Angle : 140°
Mounting Type : Surface Mount
Package / Case : 3026 (7767 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.303" L x 0.264" W (7.70mm x 6.70mm)
Height - Seated (Max) : 0.175" (4.45mm)
0
100 in stock
LR W5KM-HXJX-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® ARGUS®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 45 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 40 lm (28 lm ~ 52 lm)
Temperature - Test : 25°C
Viewing Angle : 160°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.370" Dia (9.40mm)
Height - Seated (Max) : 0.157" (4.00mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® ARGUS®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 45 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 40 lm (28 lm ~ 52 lm)
Temperature - Test : 25°C
Viewing Angle : 160°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.370" Dia (9.40mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
100 in stock
LR W5KM-HZJZ-1-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® ARGUS®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 55 lm (39 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 160°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.370" Dia (9.40mm)
Height - Seated (Max) : 0.157" (4.00mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON® ARGUS®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 55 lm (39 lm ~ 71 lm)
Temperature - Test : 25°C
Viewing Angle : 160°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.370" Dia (9.40mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
100 in stock

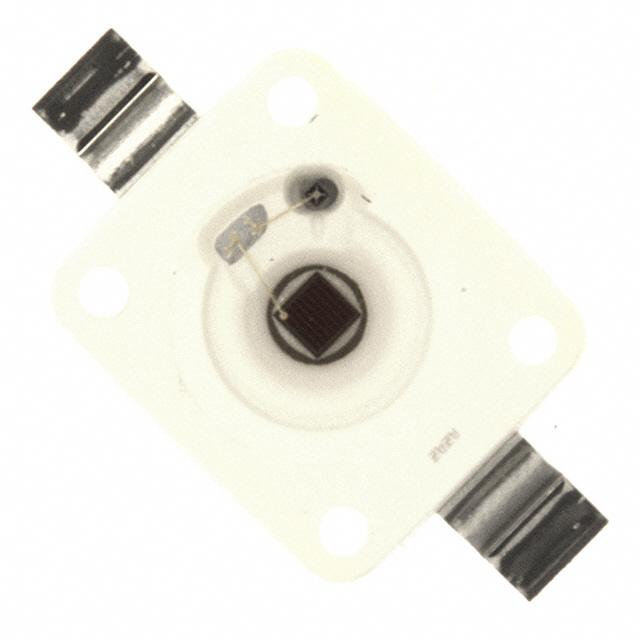

LR W5SM-GZHZ-1-0-400-R18-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : Golden DRAGON®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 35 lm (24 lm ~ 45 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
Packaging : Tape & Reel (TR)
Series : Golden DRAGON®
Part Status : Obsolete
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 35 lm (24 lm ~ 45 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
