Part Number
Manufacturer
Description
Unit Price
In Stock

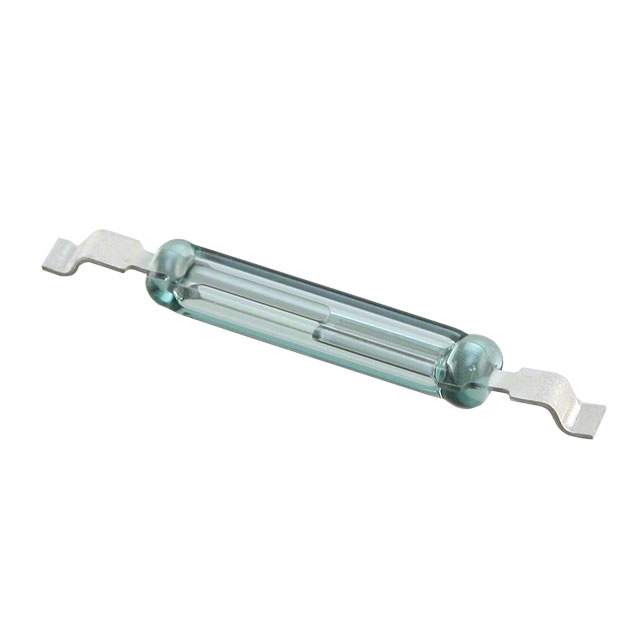

MK23-35-D-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.620" (15.75mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.620" (15.75mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock
MK23-35-D-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.776" (19.70mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.776" (19.70mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

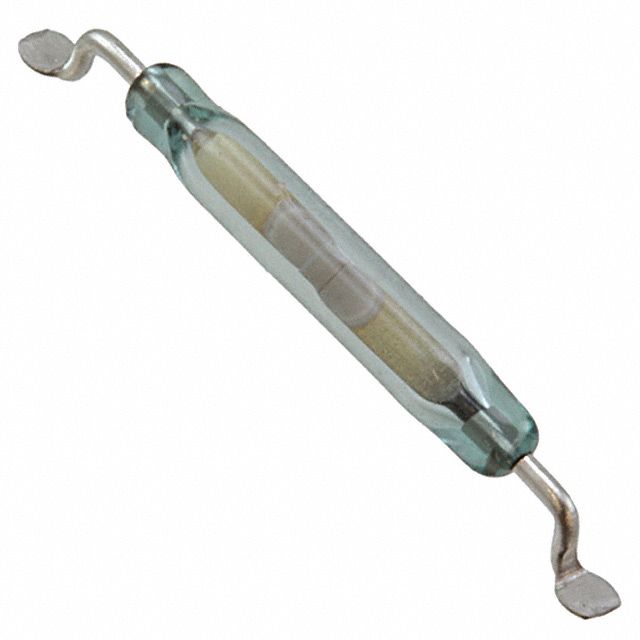

MK23-46-B-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.701" (17.80mm)
Size - Body : 0.079" Dia x 0.472" L (2.00mm x 12.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.701" (17.80mm)
Size - Body : 0.079" Dia x 0.472" L (2.00mm x 12.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

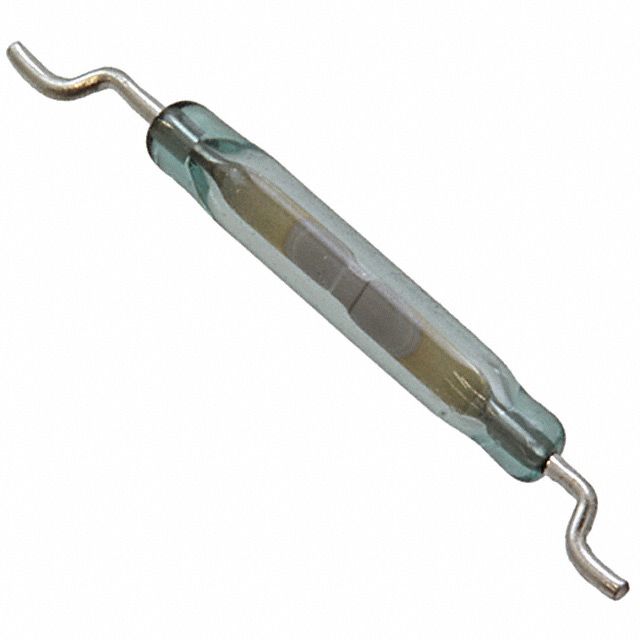

MK23-46-B-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.720" (18.30mm)
Size - Body : 0.079" Dia x 0.472" L (2.00mm x 12.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.720" (18.30mm)
Size - Body : 0.079" Dia x 0.472" L (2.00mm x 12.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

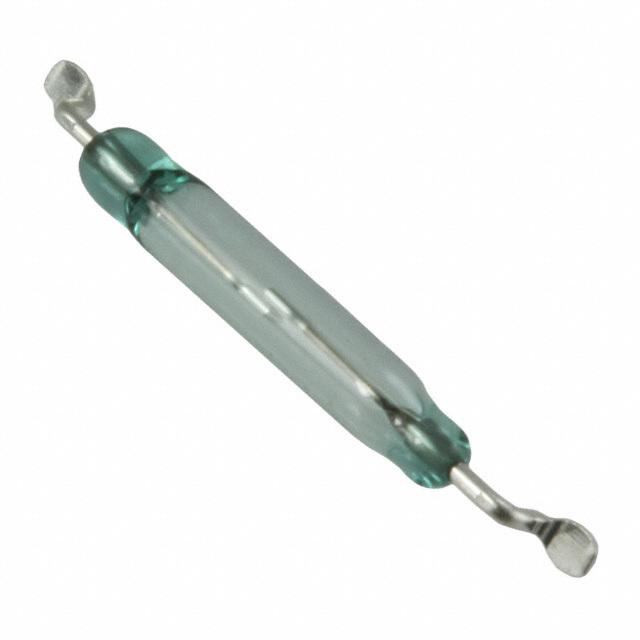

MK23-66-B-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.772" (19.60mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.772" (19.60mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

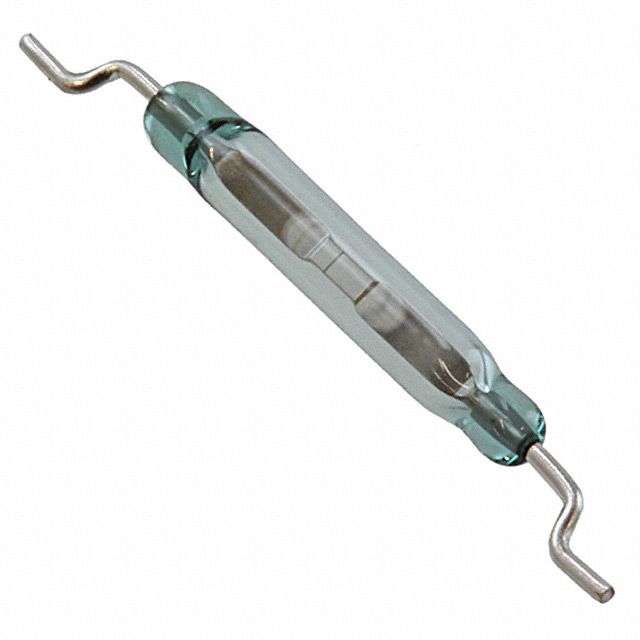

MK23-66-B-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.799" (20.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : 0.106" (2.70mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.799" (20.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : 0.106" (2.70mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

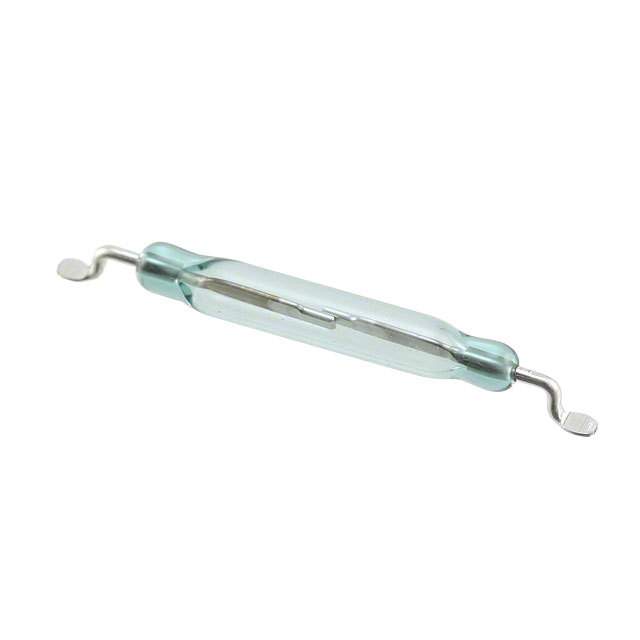

MK23-66-C-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.772" (19.60mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.772" (19.60mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : 0.098" (2.50mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

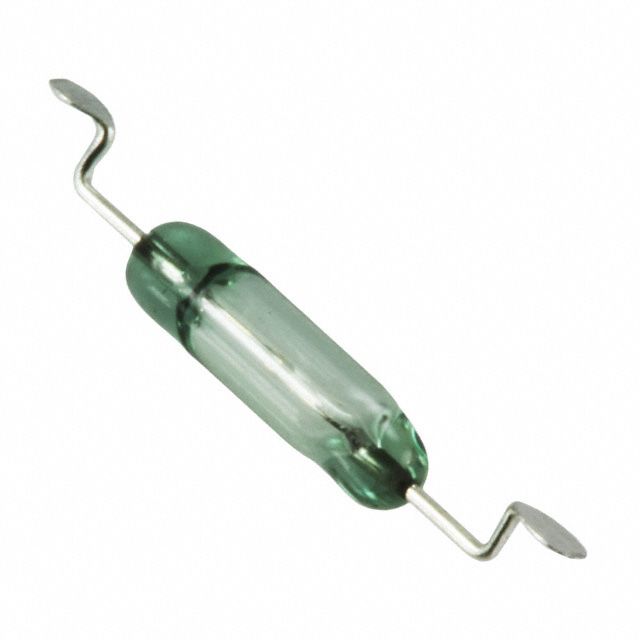

MK23-80-B-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.512" (13.00mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.512" (13.00mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
6291 in stock

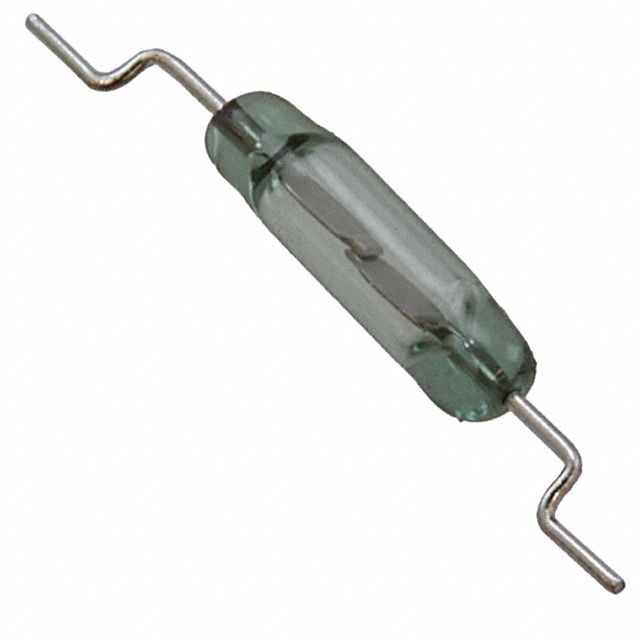

MK23-80-B-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.524" (13.30mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : 0.083" (2.10mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.524" (13.30mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : 0.083" (2.10mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK23-80-C-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.512" (13.00mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.512" (13.00mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
3082 in stock
MK23-85-D-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 1000V
Voltage - Switching DC : 1000V
Power - Rated : 100W
Operate Time : 1.1ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.154" (29.30mm)
Size - Body : 0.108" Dia x 0.827" L (2.75mm x 21.00mm)
Height Above Board : 0.112" (2.85mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.5pF
Current - Carry : 2.5A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 1000V
Voltage - Switching DC : 1000V
Power - Rated : 100W
Operate Time : 1.1ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.154" (29.30mm)
Size - Body : 0.108" Dia x 0.827" L (2.75mm x 21.00mm)
Height Above Board : 0.112" (2.85mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.5pF
Current - Carry : 2.5A (AC/DC)
0
100 in stock
MK23-87-B-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.089" (2.26mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.089" (2.26mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
4410 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
