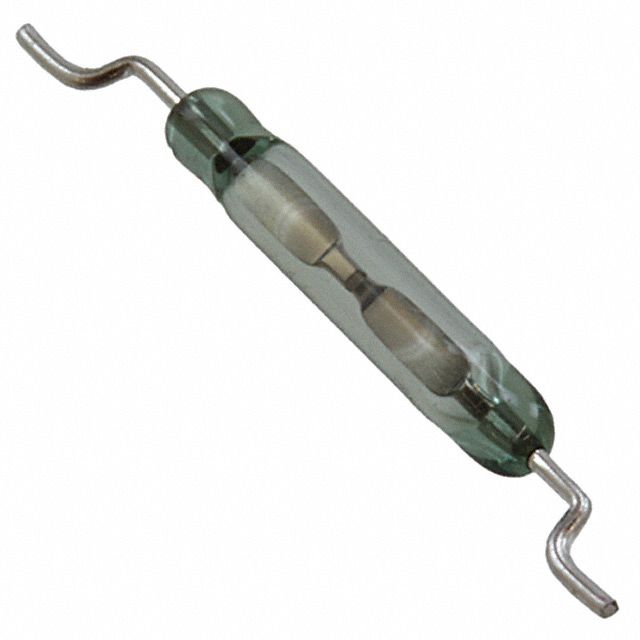

MK23-87-B-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.646" (16.40mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.646" (16.40mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
100 in stock

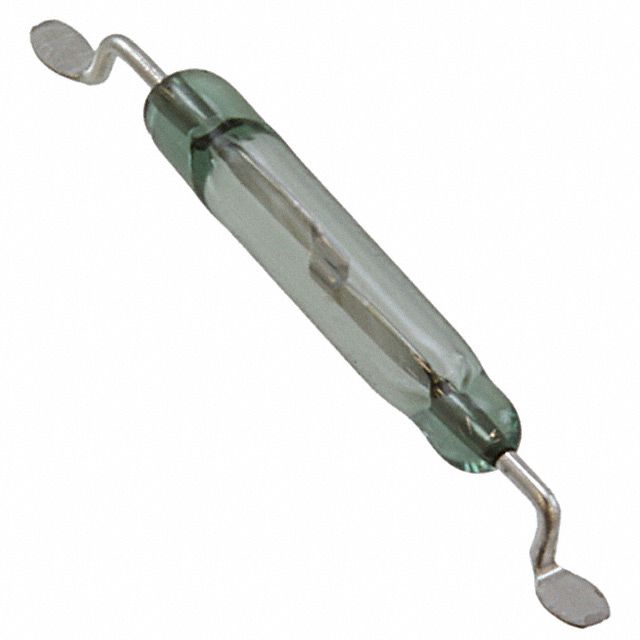

MK23-87-C-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.089" (2.26mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.089" (2.26mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK23-87-C-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Preliminary
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.646" (16.40mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Preliminary
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.646" (16.40mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK23-87-D-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Preliminary
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.089" (2.26mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Preliminary
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.089" (2.26mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK23-87-D-4
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Preliminary
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.646" (16.40mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Preliminary
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.646" (16.40mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
100 in stock

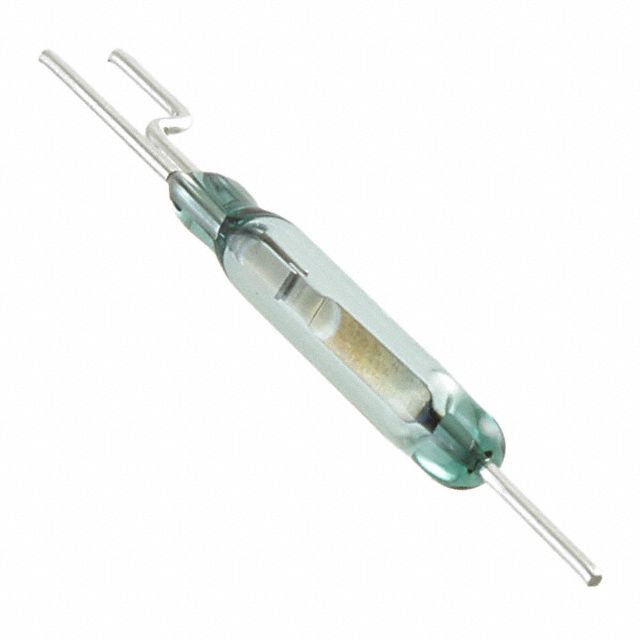

MK23-90-B-1
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPDT
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 0.980" (24.90mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPDT
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 0.980" (24.90mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
100 in stock
MK23-90-B-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPDT
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.000" (25.40mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPDT
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.000" (25.40mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
100 in stock
MK23-90-C-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPDT
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.000" (25.40mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPDT
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.000" (25.40mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
22434 in stock

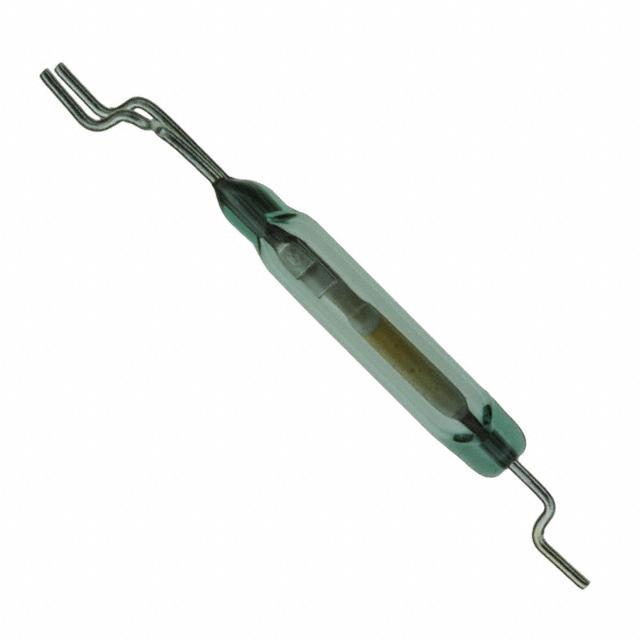

MK23-90-D-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPDT
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.000" (25.40mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPDT
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 1.000" (25.40mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
100 in stock
MK24-A-1
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 22 ~ 55AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 300mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 22 ~ 55AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 300mA (AC/DC)
0
4000 in stock
MK24-A-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 22 ~ 55AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 300mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 22 ~ 55AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 300mA (AC/DC)
0
5893 in stock
MK24-A-3
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 23 ~ 50AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 300mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 23 ~ 50AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 300mA (AC/DC)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
