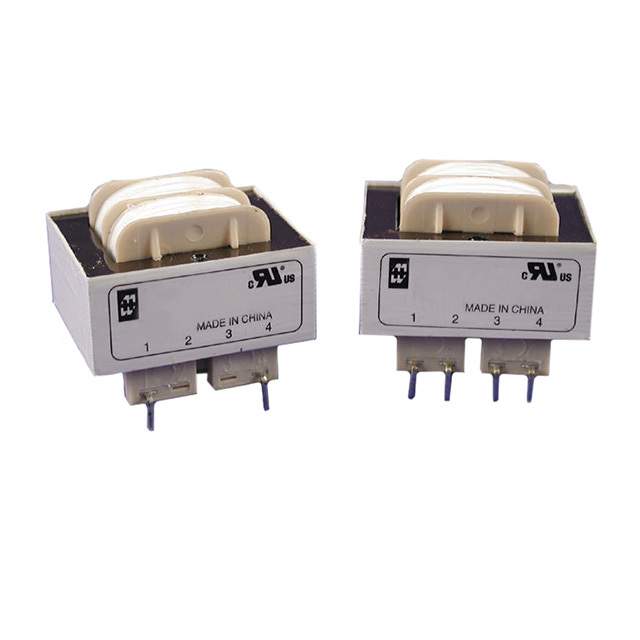

162G56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 2500Vrms
Weight : 0.7 lb (317.51g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 2500Vrms
Weight : 0.7 lb (317.51g)
0
14 in stock
162H10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
14 in stock
162H12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 3.2A, Series 1.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 3.2A, Series 1.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
40 in stock
162H120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 320mA, Series 160mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 320mA, Series 160mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
39 in stock
162H16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
37 in stock
162H20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
40 in stock
162H24
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1.6A, Series 800mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1.6A, Series 800mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
40 in stock
162H28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 1.4A, Series 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 1.4A, Series 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
40 in stock
162H36
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.1A, Series 550mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.1A, Series 550mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
40 in stock
162H48
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 800mA, Series 400mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 800mA, Series 400mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
2154 in stock
162H56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
40 in stock
162J10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 7.2A, Series 3.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 7.2A, Series 3.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
14 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
