Part Number
Manufacturer
Description
Unit Price
In Stock
162J12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 5.7A, Series 2.85A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 5.7A, Series 2.85A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
162J120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
46 in stock
162J16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 4.5A, Series 2.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 4.5A, Series 2.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
162J20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3.6A, Series 1.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3.6A, Series 1.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
162J24
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
162J28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 2.6A, Series 1.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 2.6A, Series 1.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock

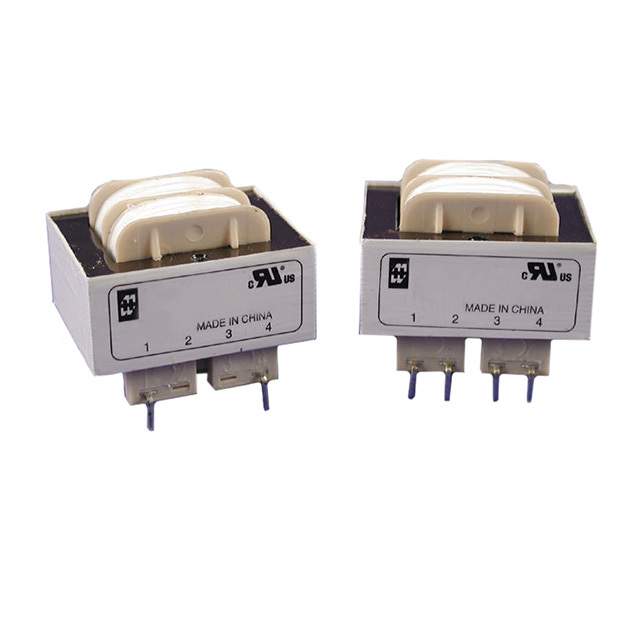

162J36
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
162J48
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.5A, Series 750mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.5A, Series 750mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
162J56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 1.3A, Series 650mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
Series : 162
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 1.3A, Series 650mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.70mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
30 in stock
16-350-LPI
Bel
Manufacturer : Signal Transformer
Series : LPI
Part Status : Active
Type : Semi-Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 60.20mm L x 42.10mm W
Height - Seated (Max) : 22.70mm
Voltage - Isolation : 4000Vrms
Weight : 0.39 lb (176.9g)
Series : LPI
Part Status : Active
Type : Semi-Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 60.20mm L x 42.10mm W
Height - Seated (Max) : 22.70mm
Voltage - Isolation : 4000Vrms
Weight : 0.39 lb (176.9g)
0
100 in stock
16-4
Bel
Manufacturer : Signal Transformer
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 105V, 115V, 125V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Single, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : Yes
Power - Max : 64 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 85.70mm L x 69.90mm W
Height - Seated (Max) : 71.40mm
Voltage - Isolation : 1500Vrms
Weight : 3.3 lbs (1.5kg)
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 105V, 115V, 125V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Single, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : Yes
Power - Max : 64 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 85.70mm L x 69.90mm W
Height - Seated (Max) : 71.40mm
Voltage - Isolation : 1500Vrms
Weight : 3.3 lbs (1.5kg)
0
1 in stock
164D10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 164
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.56mm W
Height - Seated (Max) : 33.32mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
Series : 164
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.56mm W
Height - Seated (Max) : 33.32mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
7 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
