Welcome to Weijie Semiconductor
- Transformers
- Power Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
166F10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.32mm L x 35.02mm W
Height - Seated (Max) : 30.23mm
Voltage - Isolation : 2000Vrms
Weight : 0.2 lb (90.72g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.32mm L x 35.02mm W
Height - Seated (Max) : 30.23mm
Voltage - Isolation : 2000Vrms
Weight : 0.2 lb (90.72g)
0
20 in stock
166F12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.78 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.78 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
25 in stock
166F120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 120V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 36 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 93.73mm L x 47.75mm W
Height - Seated (Max) : 58.67mm
Voltage - Isolation : 2000Vrms
Weight : 1.5 lbs (680.4g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 120V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 36 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 93.73mm L x 47.75mm W
Height - Seated (Max) : 58.67mm
Voltage - Isolation : 2000Vrms
Weight : 1.5 lbs (680.4g)
0
10 in stock
166F12B
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.6 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.6 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
50 in stock
166F12C
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4.2 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4.2 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
40 in stock
166F12D
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4.2 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4.2 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
40 in stock

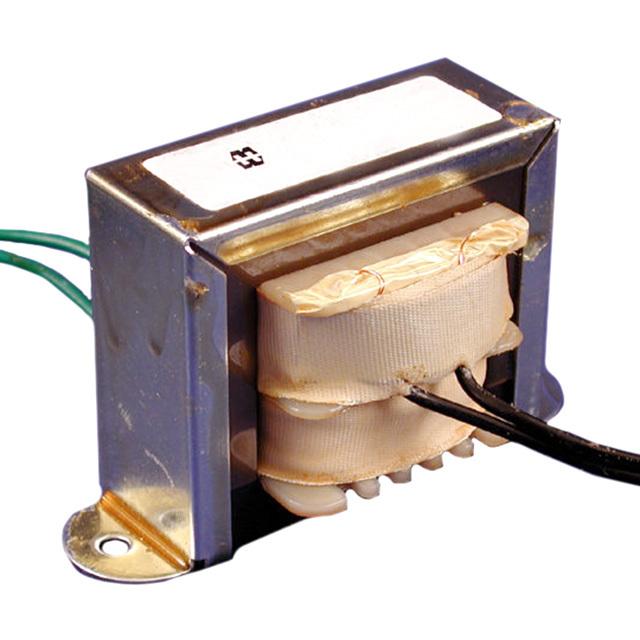

166F14
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 14V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 34.29mm W
Height - Seated (Max) : 36.32mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 14V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 34.29mm W
Height - Seated (Max) : 36.32mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
40 in stock
166F16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 60.45mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 60.45mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
19 in stock
166F2
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 2.5V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 0.63 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.32mm L x 31.75mm W
Height - Seated (Max) : 30.23mm
Voltage - Isolation : 2000Vrms
Weight : 0.3 lb (136.08g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 2.5V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 0.63 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.32mm L x 31.75mm W
Height - Seated (Max) : 30.23mm
Voltage - Isolation : 2000Vrms
Weight : 0.3 lb (136.08g)
0
11 in stock
166F20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 20V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 6 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 38.10mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.5 lb (226.8g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 20V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 6 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 38.10mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.5 lb (226.8g)
0
5 in stock

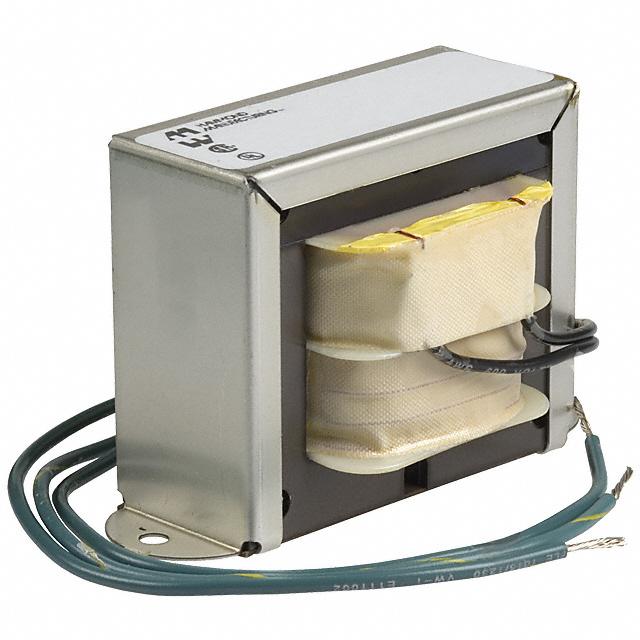

166F25
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 25V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 7.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 38.10mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 25V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 7.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 38.10mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
5 in stock
166F28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 28V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 7 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 38.10mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 28V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 7 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 38.10mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
5 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
