166G16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 8 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.38mm L x 38.10mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 8 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.38mm L x 38.10mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
20 in stock

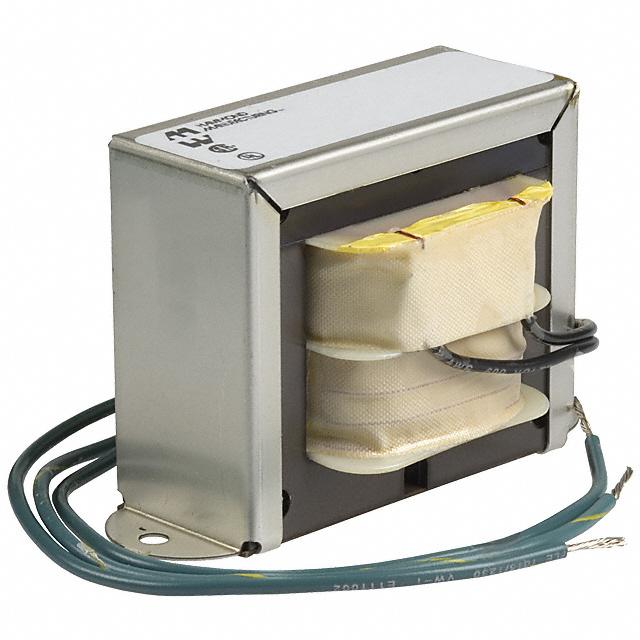

166G2
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 2.5V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 1.25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.32mm L x 31.75mm W
Height - Seated (Max) : 30.23mm
Voltage - Isolation : 2000Vrms
Weight : 0.3 lb (136.08g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 2.5V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 1.25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.32mm L x 31.75mm W
Height - Seated (Max) : 30.23mm
Voltage - Isolation : 2000Vrms
Weight : 0.3 lb (136.08g)
0
3 in stock
166G20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 20V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 10 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 41.40mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 20V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 10 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 41.40mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
40 in stock
166G25
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 25V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 12.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 41.40mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 25V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 12.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 41.40mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
67 in stock
166G28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 28V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 14 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 41.40mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 28V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 14 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.37mm L x 41.40mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
40 in stock
166G30
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 30V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 15 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 41.40mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 0.9 lb (408.23g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 30V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 15 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 41.40mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 0.9 lb (408.23g)
0
10 in stock
166G36
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 18 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 41.40mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 0.9 lb (408.23g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 18 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 41.40mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 0.9 lb (408.23g)
0
63 in stock
166G44
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 44V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 22 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 44.45mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 1 lb (453.59g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 44V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 22 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 44.45mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 1 lb (453.59g)
0
5 in stock
166G5
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 5V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 44.45mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 0.3 lb (136.08g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 5V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 44.45mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 0.3 lb (136.08g)
0
20 in stock
166G50
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 50V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 44.45mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 1 lb (453.59g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 50V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 44.45mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 1 lb (453.59g)
0
5 in stock
166G6
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 6.3V
Current - Output (Max) : 600mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.78 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 6.3V
Current - Output (Max) : 600mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 3.78 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.45mm L x 35.05mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
10 in stock
166G60
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 60V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 30 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 50.80mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 1.4 lbs (635g)
Series : 166
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 60V
Current - Output (Max) : 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 30 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 50.80mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 2000Vrms
Weight : 1.4 lbs (635g)
0
8 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
