1182N60
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
0
4 in stock
1182N9
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
0
4 in stock
1182P110
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 4.54A, Series 2.27A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 4.54A, Series 2.27A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
0
1 in stock

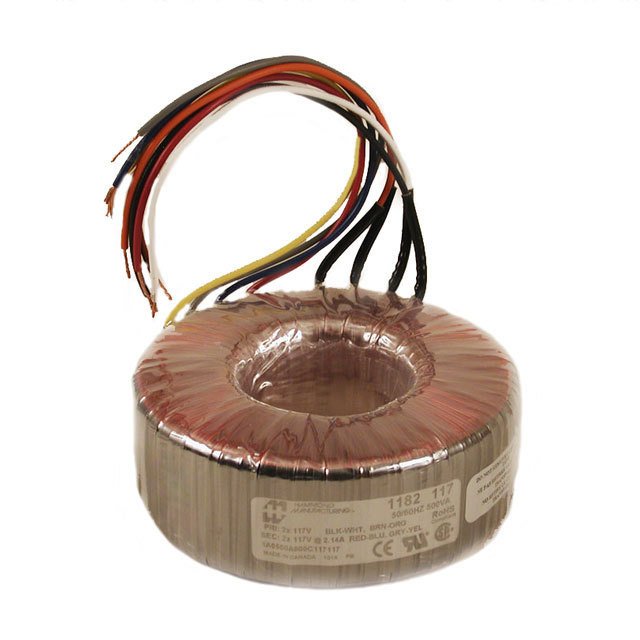

1182P117
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 5.34A, Series 2.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 5.34A, Series 2.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
0
4 in stock
1182P12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
36 in stock
1182P15
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
6 in stock
1182P22
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 10.22A, Series 5.11A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 225 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 114.30mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 4.7 lbs (2.1kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 10.22A, Series 5.11A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 225 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 114.30mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 4.7 lbs (2.1kg)
0
9 in stock
1182P240
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
2 in stock
1182P30
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 6 lbs (2.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 6 lbs (2.7kg)
0
4 in stock
1182P60
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 10.42A, Series 5.21A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 10.42A, Series 5.21A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
0
4 in stock
1182Q110
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 5.68A, Series 2.84A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 5.68A, Series 2.84A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
0
4 in stock
1182Q117
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 6.42A, Series 3.21A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 6.42A, Series 3.21A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
0
9 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
