All Sensors Corporation

- All Sensors, Inc. pressure sensors are based on piezo-resistive semiconductor technology, broadly referred to as MEMS (micro electrical mechanical systems). Our products, both analog and digital, are based upon a proprietary technology to reduce errors.

Output changes due to temperature, warm-up stability, long-term stability, and position sensitivity are all significantly reduced when compared to conventional compensation methods. These sensors are intended for use with non-corrosive, non-ionic working fluids, such as air and dry gases. Packaging is designed to be mounted to a printed-circuit board. Our highly linear pressure sensors are typically used as components in high accuracy instrumentation for markets such as: medical, HVAC, mine safety, off-road vehicles, environmental, chemical analysis.


Part Number

Manufacturer

Description

Unit Price

In Stock

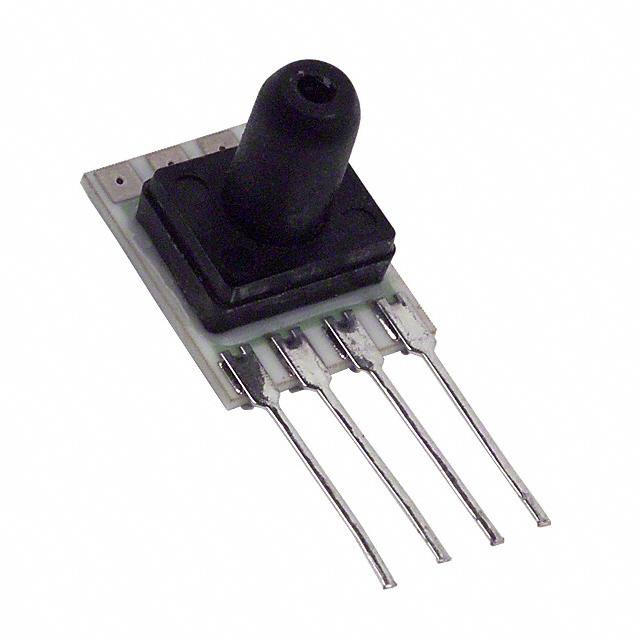

0.3 PSI-GF-HGRADE-MINI

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ACPC
Part Status : Active
Pressure Type : Vented Gauge
Operating Pressure : 0.3 PSI (2.07 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 20 mV (12V)
Accuracy : ±0.5%
Voltage - Supply : 16V
Port Size : Male - 0.18" (4.57mm) Tube
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 3 PSI (20.68 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

84 in stock

1 INCH-D-4V

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCA
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.04 PSI (±0.25 kPa)
Output Type : Analog Voltage
Output : 0.25 V ~ 4.25 V
Accuracy : ±0.25%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PCB
Maximum Pressure : ±3.61 PSI (±24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

100 in stock

1 INCH-D-MV

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 0.04 PSI (0.25 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 10 mV (12V)
Accuracy : ±0.25%
Voltage - Supply : 16V
Port Size : Male - 0.19" (4.83mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 3.61 PSI (24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 6-SIP Module
Supplier Device Package : -

40 in stock

1 INCH-G-4V

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCA
Part Status : Active
Pressure Type : Vented Gauge
Operating Pressure : 0.04 PSI (0.25 kPa)
Output Type : Analog Voltage
Output : 0.25 V ~ 4.25 V
Accuracy : ±0.25%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PCB
Maximum Pressure : 3.61 PSI (24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

40 in stock

1 MBAR-D-4V

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCA
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.02 PSI (±0.1 kPa)
Output Type : Analog Voltage
Output : 0.25 V ~ 4.25 V
Accuracy : ±0.25%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PCB
Maximum Pressure : ±3.61 PSI (±24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

61 in stock

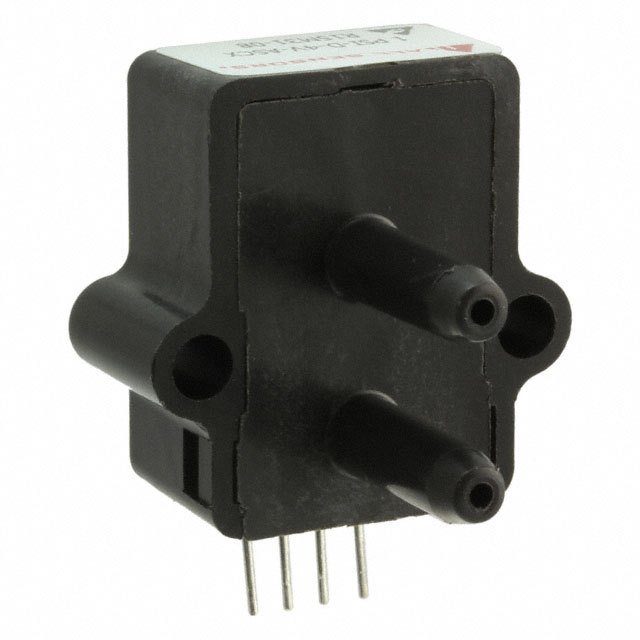

1 PSI-D-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±1 PSI (±6.89 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±5 PSI (±34.47 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

32 in stock

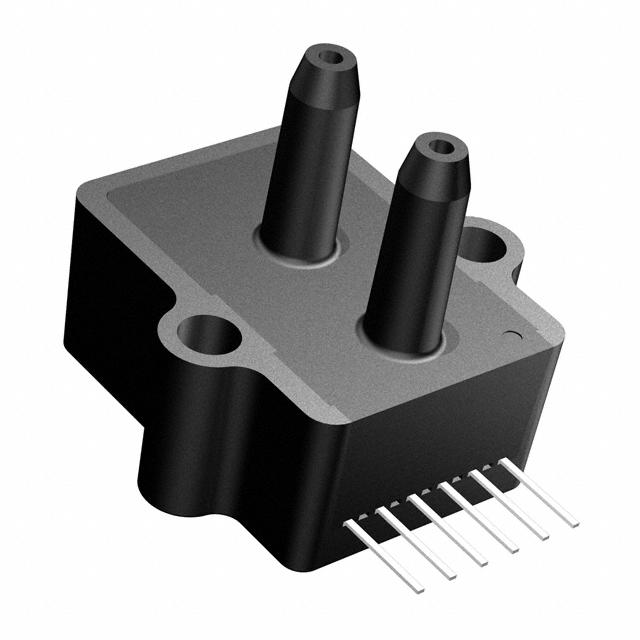

1 PSI-D-CGRADE-MV

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : AXCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 1 PSI (6.89 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 18 mV (12V)
Accuracy : ±1%
Voltage - Supply : 16V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 5 PSI (34.47 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 6-SIP Module
Supplier Device Package : -

18 in stock

1 PSI-D-HGRADE-MV

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : AXCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 1 PSI (6.89 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 18 mV (12V)
Accuracy : ±0.5%
Voltage - Supply : 16V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 5 PSI (34.47 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 6-SIP Module
Supplier Device Package : -

182 in stock

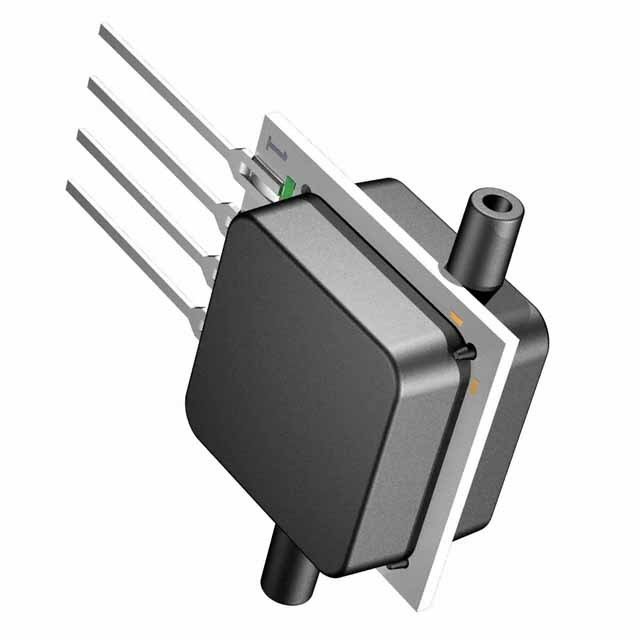

10 INCH-D2-BASIC

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADUX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 0.36 PSI (2.49 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 30 mV (4.5V)
Accuracy : ±0.5%
Voltage - Supply : 6V
Port Size : Male - 0.08" (2.13mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : -
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

42 in stock

10 INCH-D-4V

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCA
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.36 PSI (±2.49 kPa)
Output Type : Analog Voltage
Output : 0.25 V ~ 4.25 V
Accuracy : ±0.25%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PCB
Maximum Pressure : ±7.23 PSI (±49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

22 in stock

10 INCH-D-MV

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 0.36 PSI (2.49 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 20 mV (12V)
Accuracy : ±0.25%
Voltage - Supply : 16V
Port Size : Male - 0.19" (4.83mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 7.23 PSI (49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 6-SIP Module
Supplier Device Package : -

183 in stock

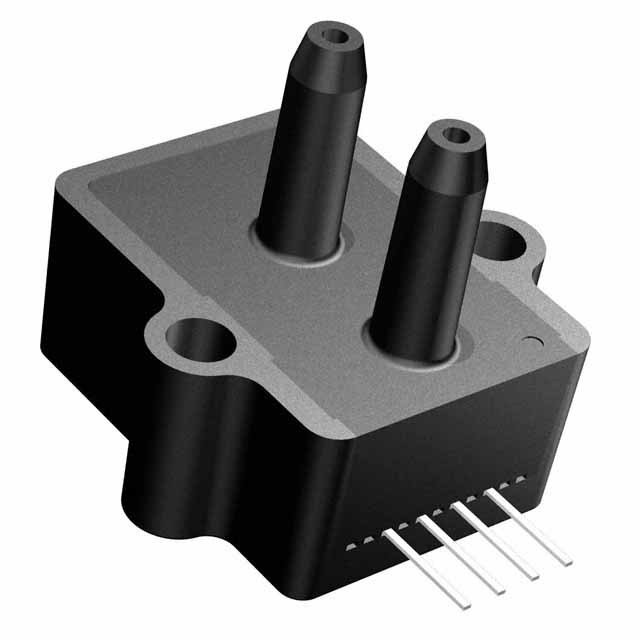

10 INCH-G-4V

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCA
Part Status : Active
Pressure Type : Vented Gauge
Operating Pressure : 0.36 PSI (2.49 kPa)
Output Type : Analog Voltage
Output : 0.25 V ~ 4.25 V
Accuracy : ±0.25%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PCB
Maximum Pressure : 0.36 PSI (2.49 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

7 in stock
