Part Number
Manufacturer
Description
Unit Price
In Stock

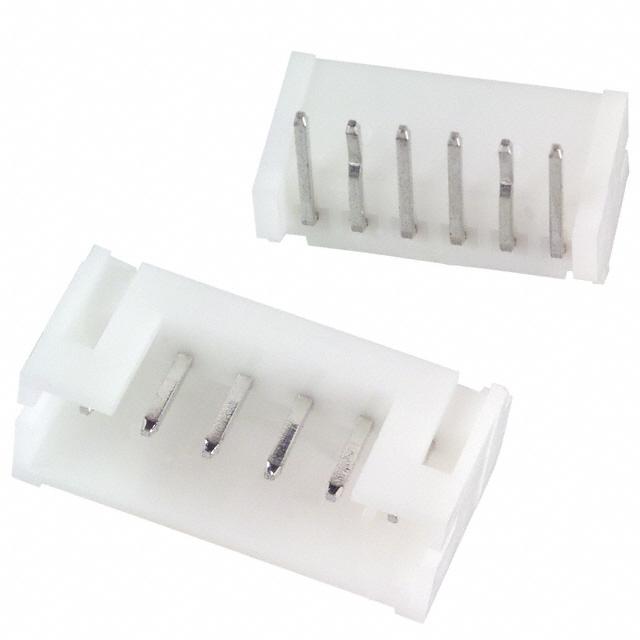

(SN).jpg "Show details for S6B-PH-K-S(LF)(SN)")
S6B-PH-K-S(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
58175 in stock

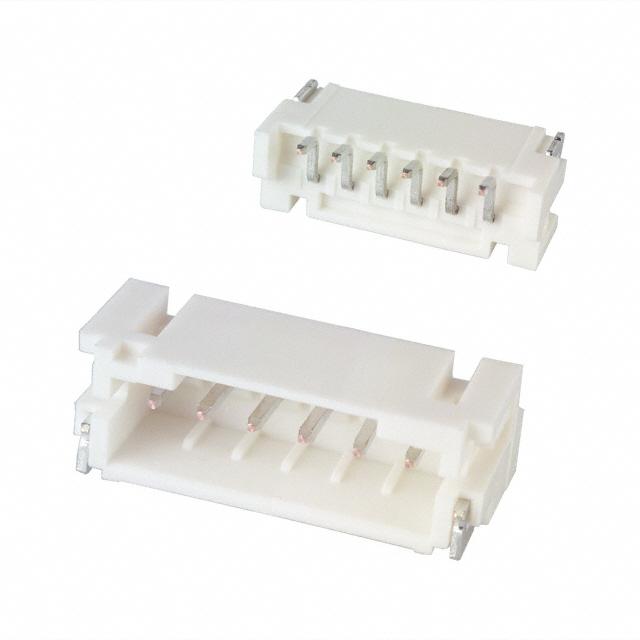

(SN).jpg "Show details for S6B-PH-SM4-TB(LF)(SN)")
S6B-PH-SM4-TB(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
25187 in stock

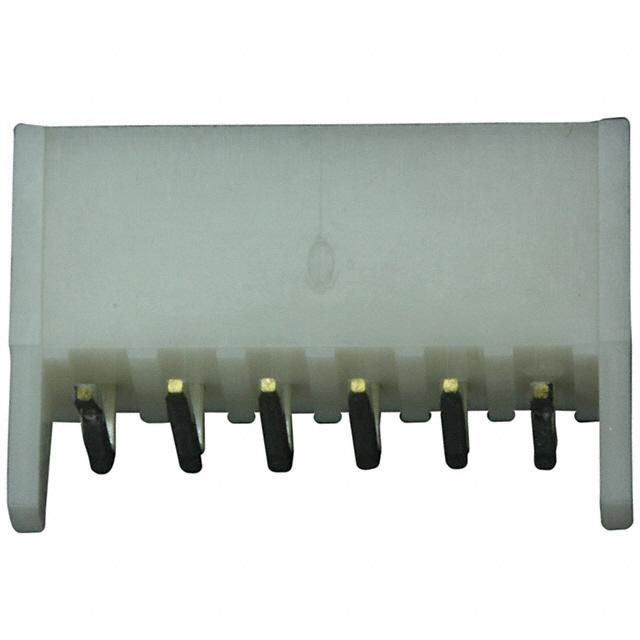

(SN).JPG "Show details for S6B-XH-A(LF)(SN)")
S6B-XH-A(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
13162 in stock

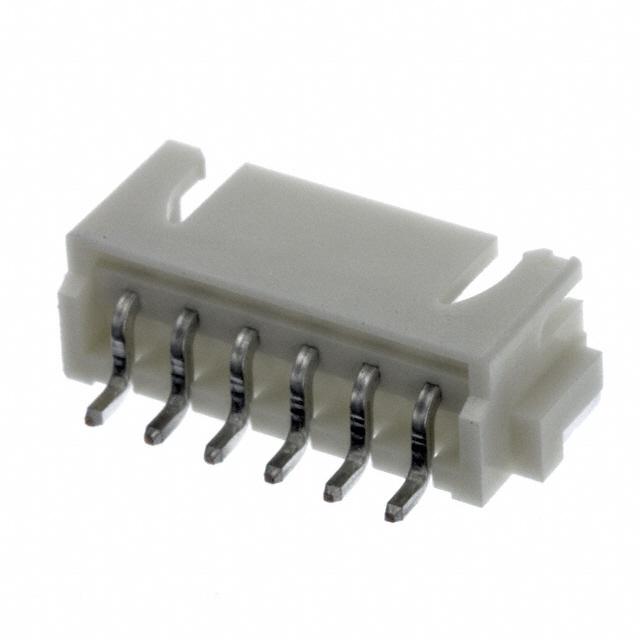

(SN).JPG "Show details for S6B-XH-SM4-TB(LF)(SN)")
S6B-XH-SM4-TB(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.236" (6.00mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.236" (6.00mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
60292 in stock

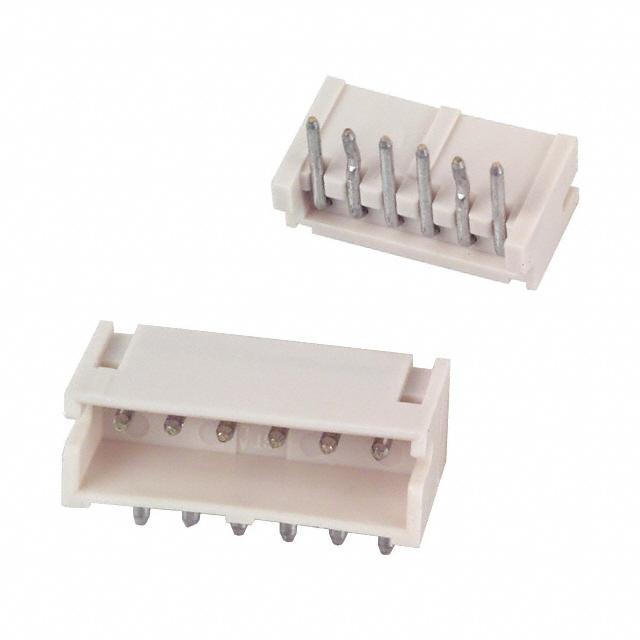

(SN).jpg "Show details for S6B-ZR(LF)(SN)")
S6B-ZR(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
45089 in stock

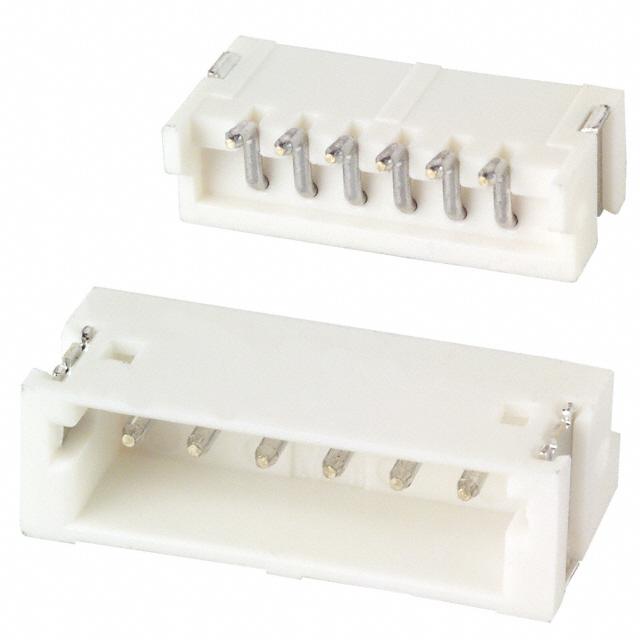

(SN).jpg "Show details for S6B-ZR-SM4A-TF(LF)(SN)")
S6B-ZR-SM4A-TF(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
44749 in stock

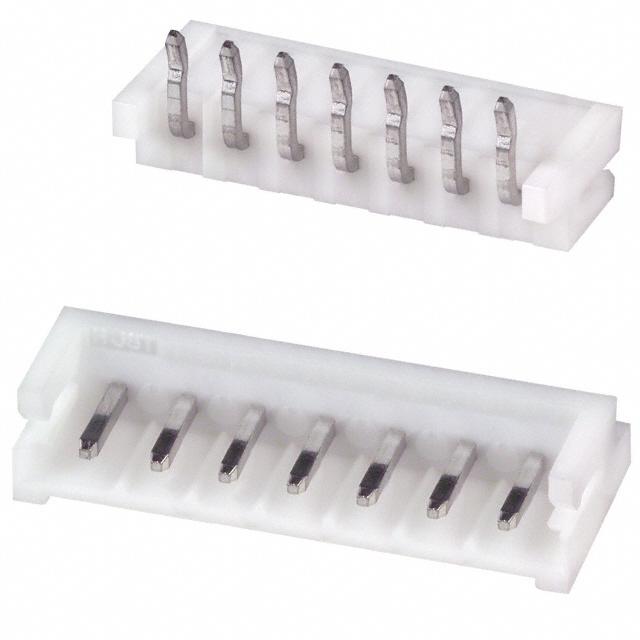

(SN).jpg "Show details for S7B-EH(LF)(SN)")
S7B-EH(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : EH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 3 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Latch Lock
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.165" (4.20mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : EH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 3 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Latch Lock
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.165" (4.20mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
6793 in stock

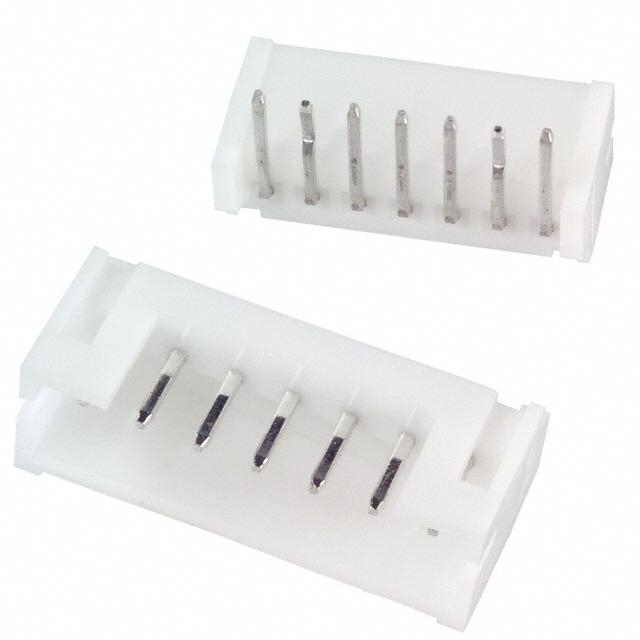

(SN).jpg "Show details for S7B-PH-K-S(LF)(SN)")
S7B-PH-K-S(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
17162 in stock

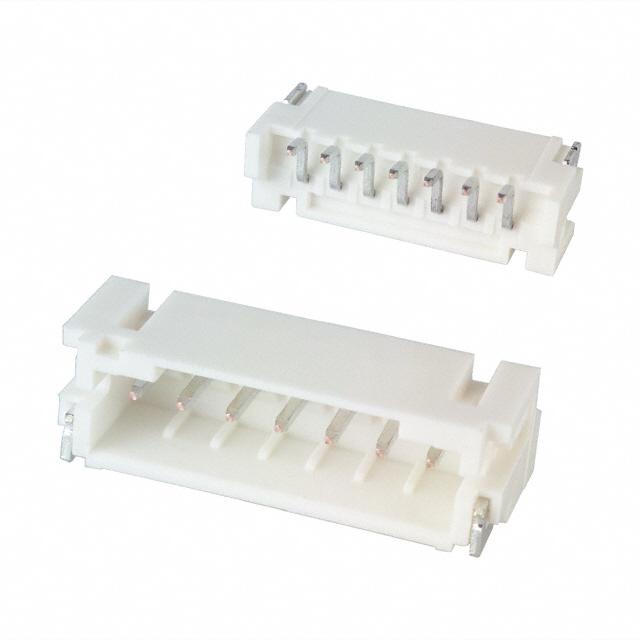

(SN).jpg "Show details for S7B-PH-SM4-TB(LF)(SN)")
S7B-PH-SM4-TB(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
7820 in stock

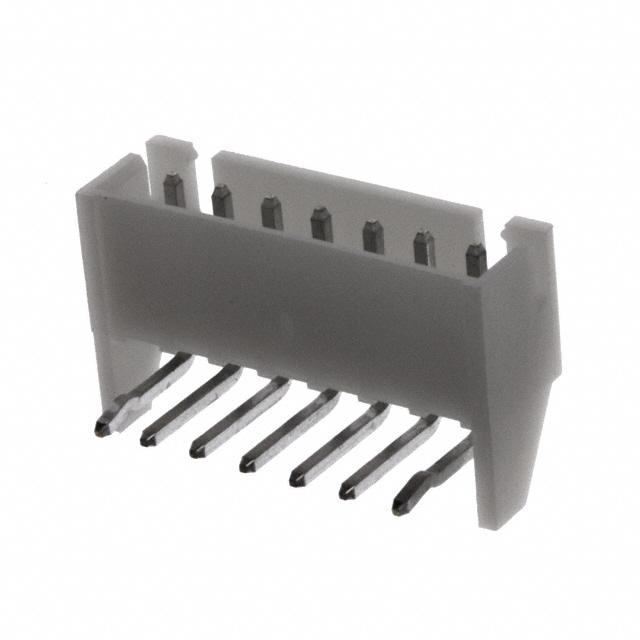

(SN).JPG "Show details for S7B-XH-A(LF)(SN)")
S7B-XH-A(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
11290 in stock

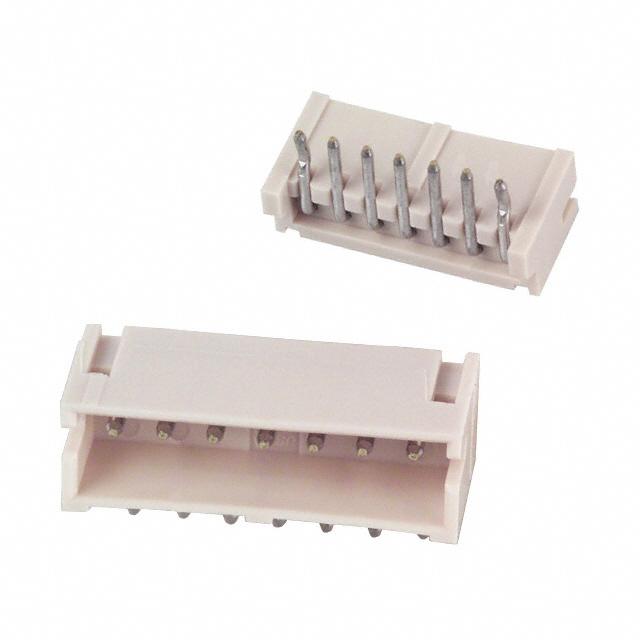

(SN).jpg "Show details for S7B-ZR(LF)(SN)")
S7B-ZR(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
1005 in stock

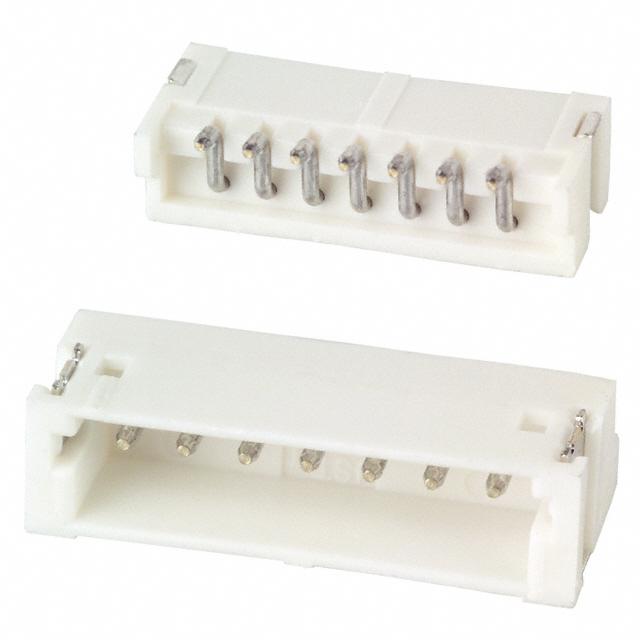

(SN).jpg "Show details for S7B-ZR-SM4A-TF(LF)(SN)")
S7B-ZR-SM4A-TF(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
6797 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
