JST
- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

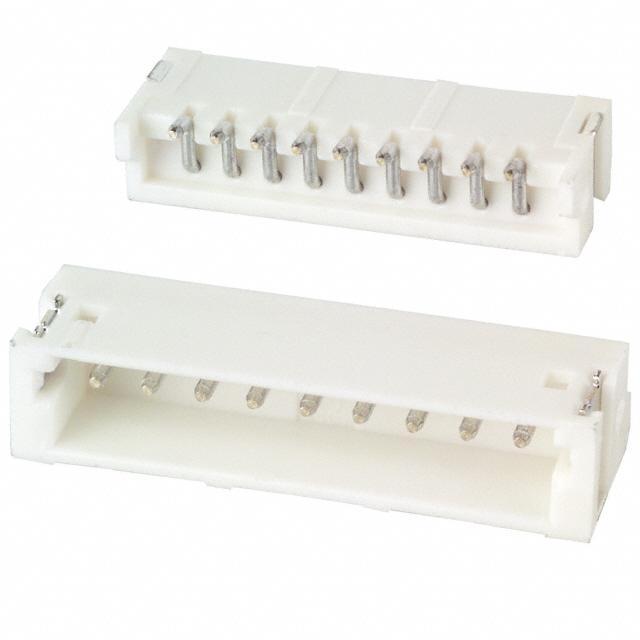

JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
13790 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACH
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 28-30 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
573995 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACHF
Part Status : Active
Type : -
Pin or Socket : Female Blade Sockets
Contact Termination : Crimp
Wire Gauge : 28-30 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
116495 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACHL
Part Status : Active
Type : -
Pin or Socket : Female Blade Sockets
Contact Termination : Crimp
Wire Gauge : 28-30 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
214009 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACH
Part Status : Active
Type : -
Pin or Socket : Pin
Contact Termination : Crimp
Wire Gauge : 28-30 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
27680 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ADH
Part Status : Active
Type : -
Pin or Socket : Female Blade Sockets
Contact Termination : Crimp
Wire Gauge : 26 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
9298 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ADH
Part Status : Active
Type : -
Pin or Socket : Female Blade Sockets
Contact Termination : Crimp
Wire Gauge : 28 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
31649 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AUH
Part Status : Active
Type : Power
Pin or Socket : Female Blade Sockets
Contact Termination : Crimp
Wire Gauge : 22-26 AWG
Contact Finish : Gold
Contact Finish Thickness : -
0
94207 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : BH
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 22-28 AWG
Contact Finish : Tin
Contact Finish Thickness : -
0
60100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EH
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 22-30 AWG
Contact Finish : Tin
Contact Finish Thickness : -
0
1000429 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SFH
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 2
Pitch : 0.071" (1.80mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Yellow
Features : -
0
12607 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SFH
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 2
Pitch : 0.071" (1.80mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Red
Features : -
0
47862 in stock
