Welcome to Weijie Semiconductor
JST
- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

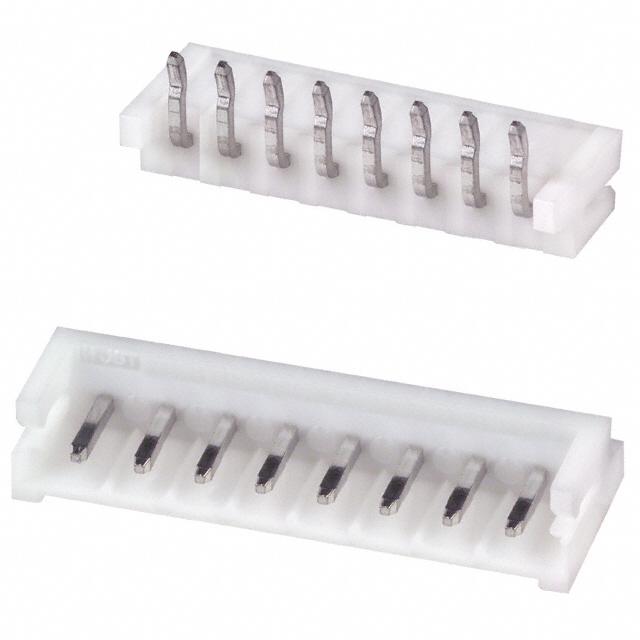

(SN).jpg "Show details for S8B-EH(LF)(SN)")
S8B-EH(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : EH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 3 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Latch Lock
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.165" (4.20mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : EH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 3 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Latch Lock
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.165" (4.20mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
46445 in stock

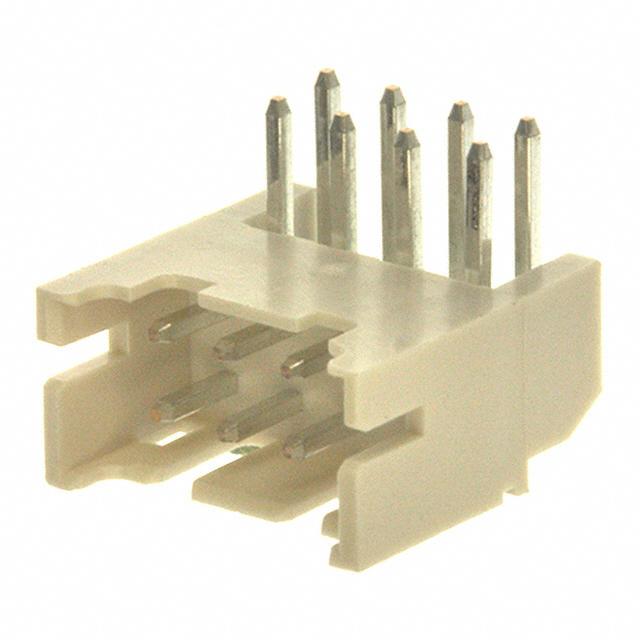

(SN).JPG "Show details for S8B-PHDSS(LF)(SN)")
S8B-PHDSS(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : PHD
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.114" (2.90mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.197" (5.00mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : PHD
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.114" (2.90mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.197" (5.00mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
66802 in stock
(SN).jpg "Show details for S8B-PH-K-S(LF)(SN)")

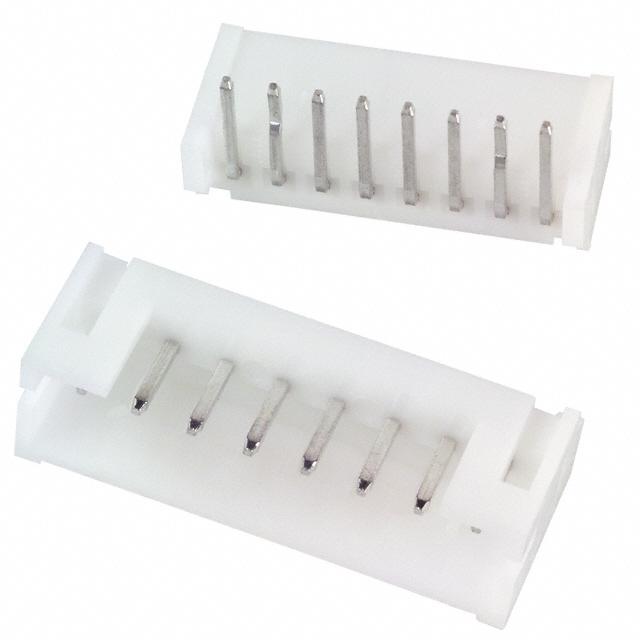

S8B-PH-K-S(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
22201 in stock
(SN).jpg "Show details for S8B-PH-SM4-TB(LF)(SN)")

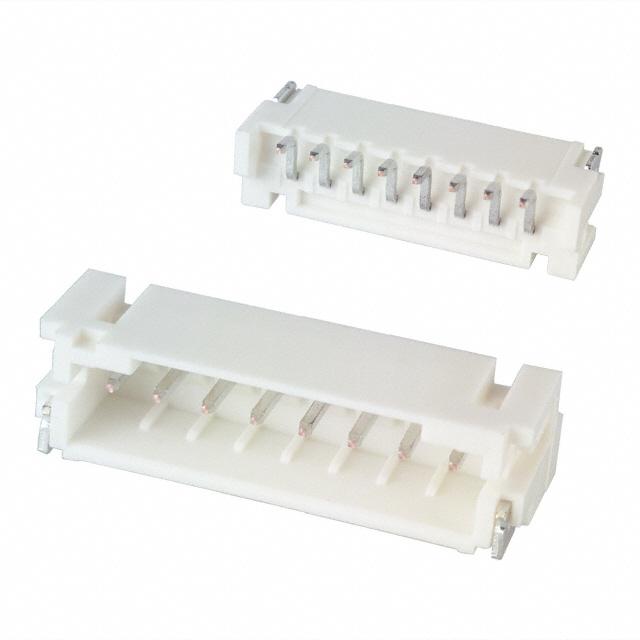

S8B-PH-SM4-TB(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
27358 in stock
(SN).jpg "Show details for S8B-XH-A(LF)(SN)")
S8B-XH-A(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
15840 in stock
(SN).jpg "Show details for S8B-ZR(LF)(SN)")

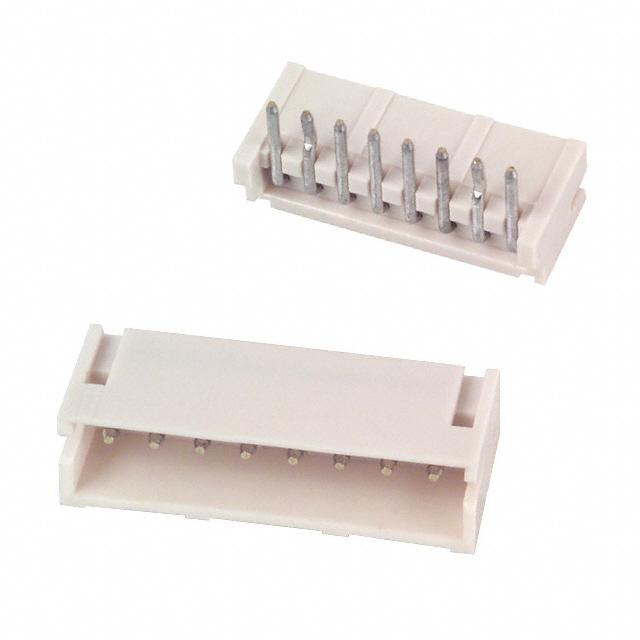

S8B-ZR(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
7718 in stock

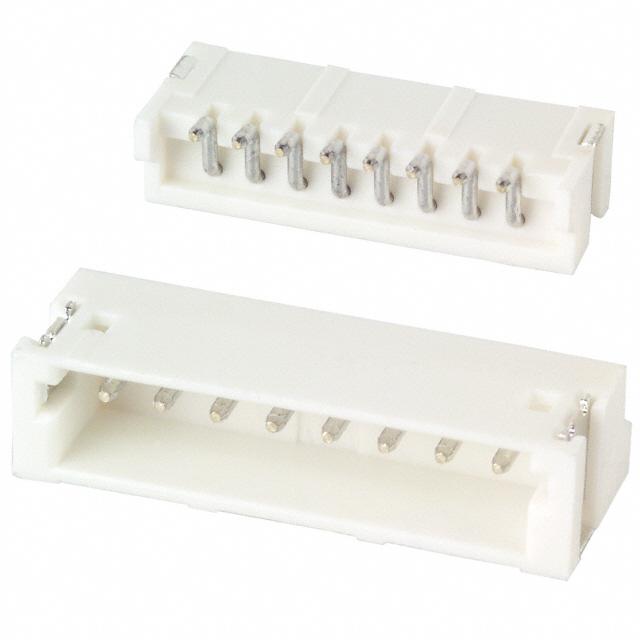

(SN).jpg "Show details for S8B-ZR-SM4A-TF(LF)(SN)")
S8B-ZR-SM4A-TF(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
18776 in stock

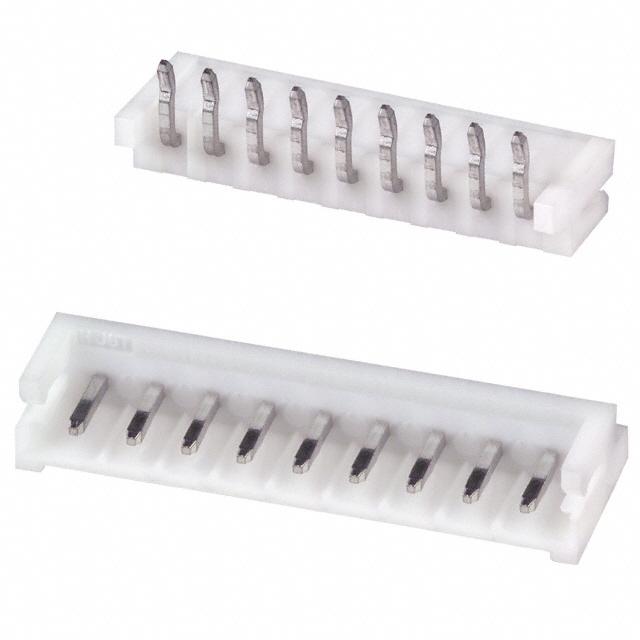

(SN).jpg "Show details for S9B-EH(LF)(SN)")
S9B-EH(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : EH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 3 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Latch Lock
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.165" (4.20mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : EH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 3 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Latch Lock
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.165" (4.20mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
3443 in stock

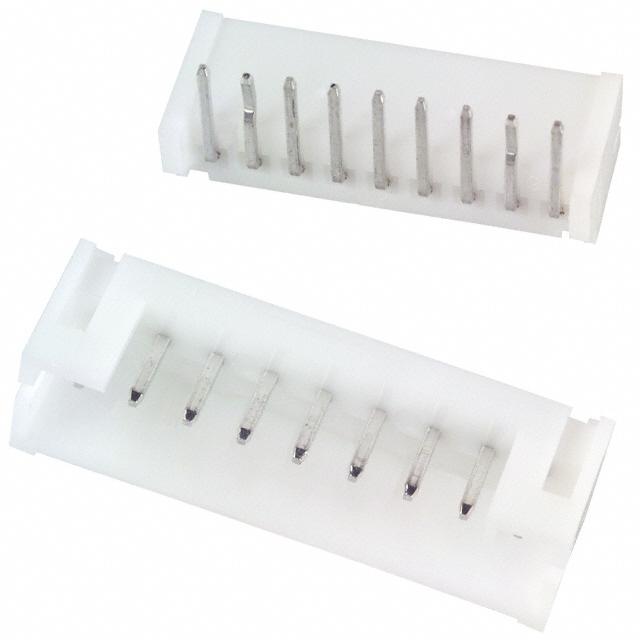

(SN).jpg "Show details for S9B-PH-K-S(LF)(SN)")
S9B-PH-K-S(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Bulk
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.189" (4.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
5512 in stock

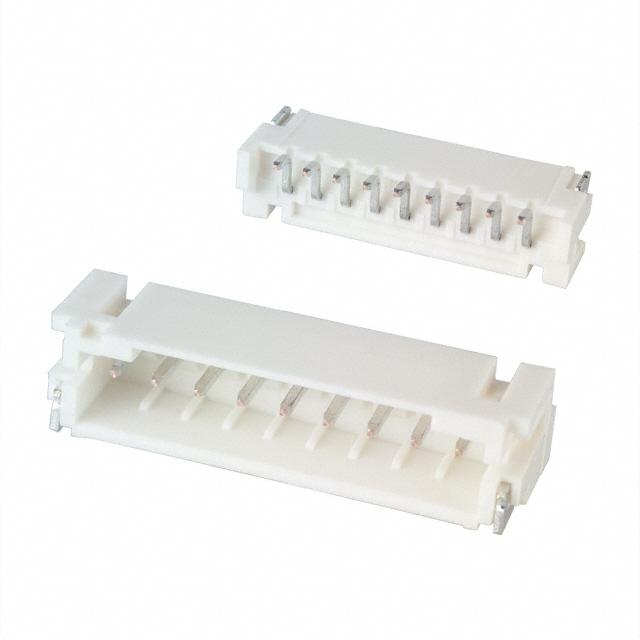

(SN).jpg "Show details for S9B-PH-SM4-TB(LF)(SN)")
S9B-PH-SM4-TB(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.130" (3.30mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 2A
Voltage Rating : 100V
0
40587 in stock

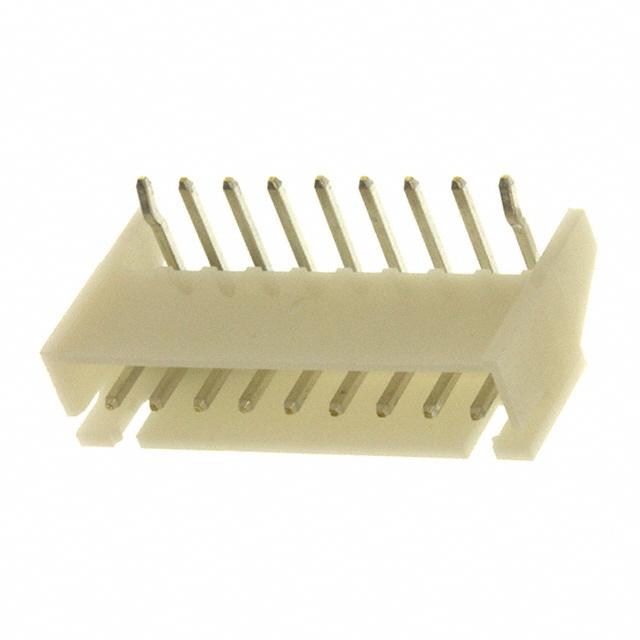

(SN).JPG "Show details for S9B-XH-A(LF)(SN)")
S9B-XH-A(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : XH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.098" (2.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
4373 in stock

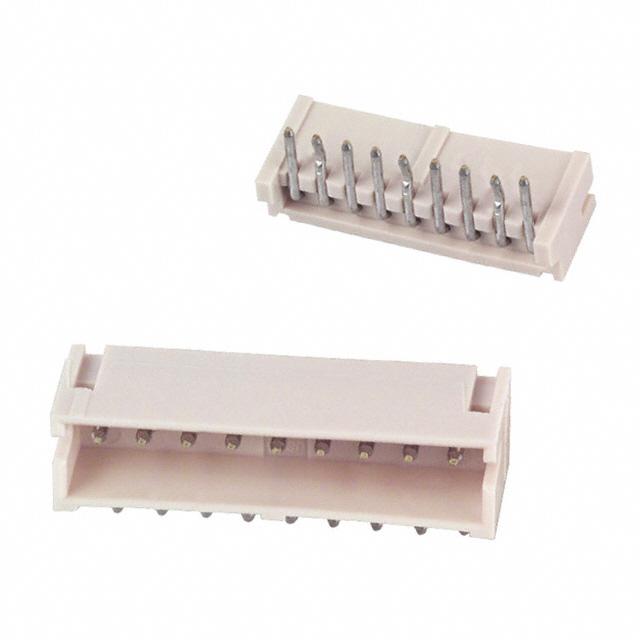

(SN).jpg "Show details for S9B-ZR(LF)(SN)")
S9B-ZR(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
Packaging : Bulk
Series : ZH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.059" (1.50mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.094" (2.40mm)
Contact Length - Post : 0.106" (2.69mm)
Overall Contact Length : -
Insulation Height : 0.146" (3.70mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6, Glass Filled
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
1934 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
