Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

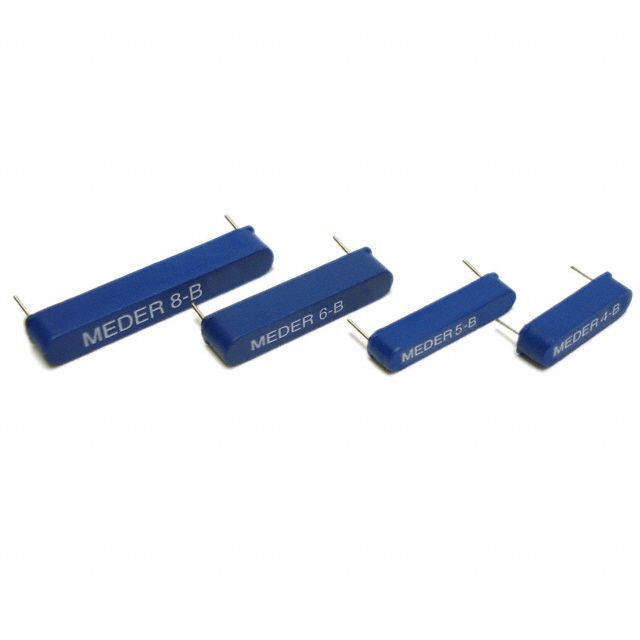

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.475" (12.06mm)
Size - Body : 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm)
Height Above Board : 0.130" (3.30mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
482 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.563" (14.30mm)
Size - Body : 0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm)
Height Above Board : 0.126" (3.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
844 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.563" (14.30mm)
Size - Body : 0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm)
Height Above Board : 0.126" (3.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
206 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 5 ~ 10AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.679" (17.25mm)
Size - Body : 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
701 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.679" (17.25mm)
Size - Body : 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
497 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.679" (17.25mm)
Size - Body : 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
670 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.779" (19.79mm)
Size - Body : 0.779" L x 0.130" W x 0.165" H (19.79mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
925 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.879" (22.33mm)
Size - Body : 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
1702 in stock

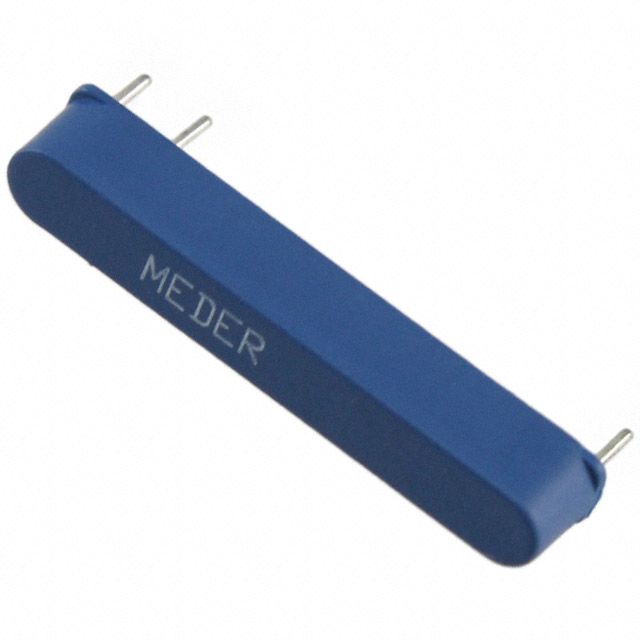

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPDT
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.879" (22.33mm)
Size - Body : 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
449 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPDT
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.879" (22.33mm)
Size - Body : 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm)
Height Above Board : 0.165" (4.20mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
433 in stock

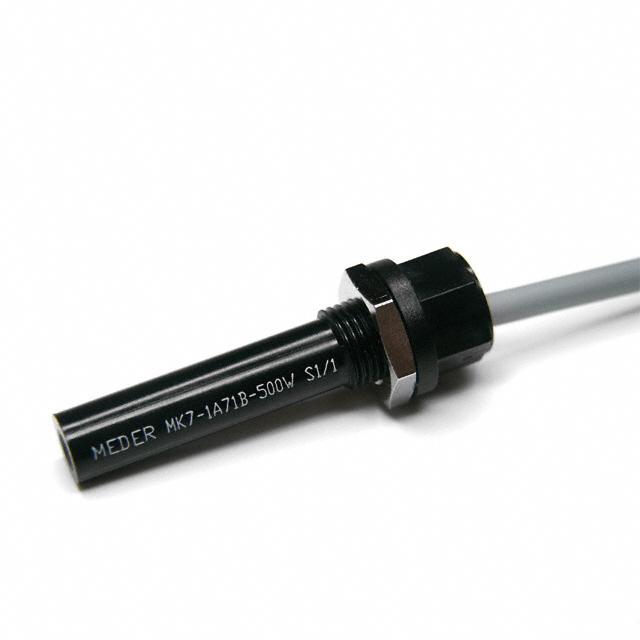

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK7
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable, Round
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 30AT
Must Release : 4 ~ 27AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Threaded Barrel
0
49 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK7
Part Status : Obsolete
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Threaded Barrel
0
100 in stock
