Standex-Meder Electronics

- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.

Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

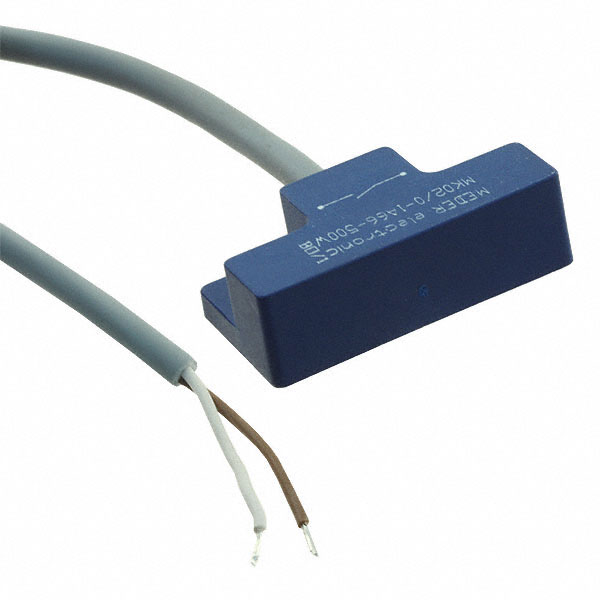

MK02/0-1A66-500W

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : MK2
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : -30°C ~ 80°C (TA)
Package / Case : Molded Body

7 in stock

MK02/7-1

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK02
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 7 ~ 10mm
Release Range : 8 ~ 15mm
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 1.594" (40.50mm)
Size - Body : 1.594" L x 0.343" W x 0.500" H (40.50mm x 8.70mm x 12.70mm)
Height Above Board : 0.500" (12.70mm)
Operating Temperature : -20°C ~ 80°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)

100 in stock

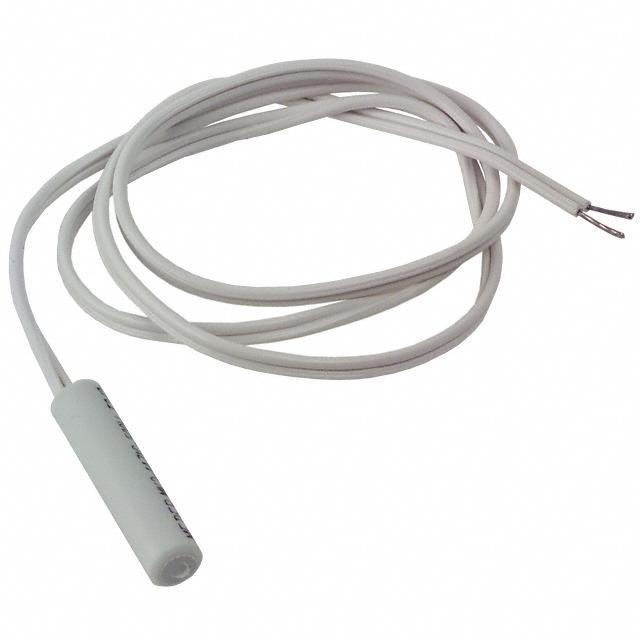

MK03-1A66B-500W

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : MK03
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 60AT
Must Release : 4 ~ 54AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body

1371 in stock

MK03-1A66C-500W

Standex-Meder Electronics

68 in stock

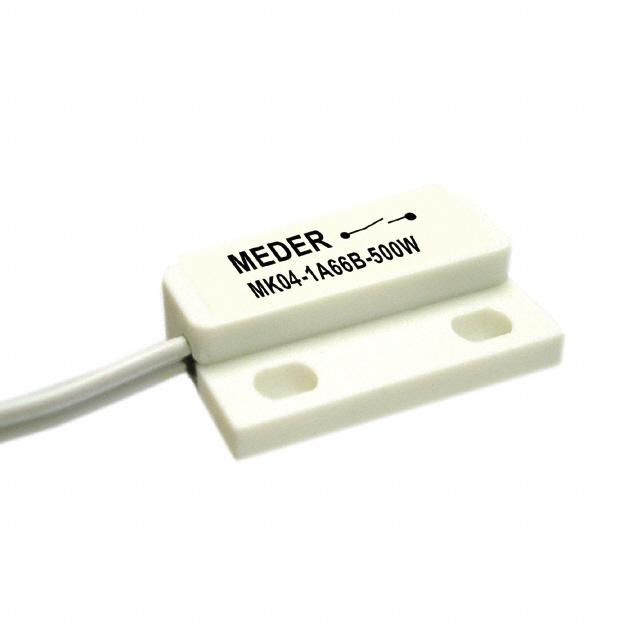

MK04-1A66B-500W

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : MK04
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable, Flat
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 60AT
Must Release : -
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body

22273 in stock

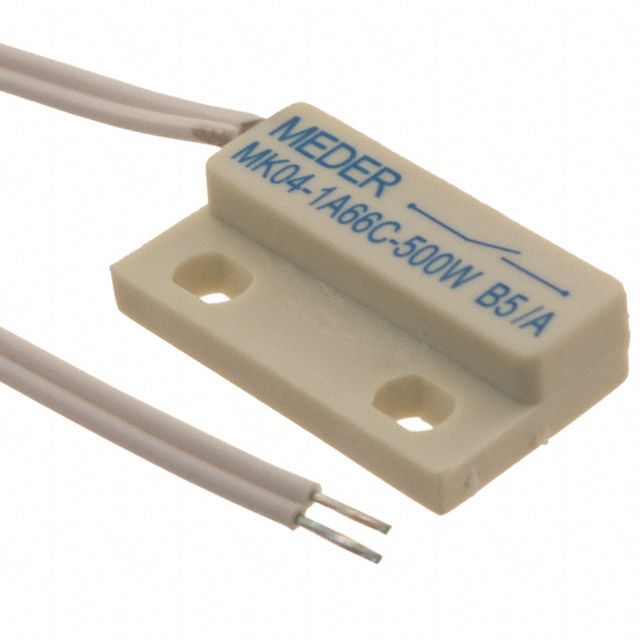

MK04-1A66C-500W

Standex-Meder Electronics

1916 in stock

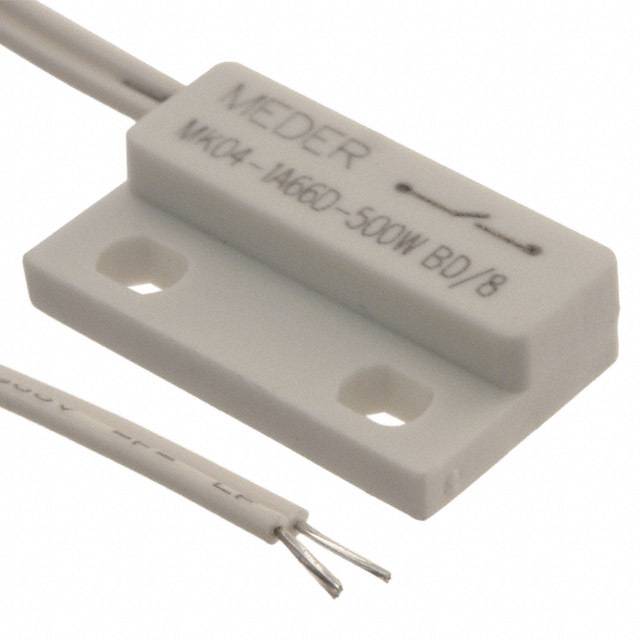

MK04-1A66D-500W

Standex-Meder Electronics

503 in stock

MK04-1B90C-500W

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : MK04
Part Status : Active
Output Type : SPST-NC
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable, Flat
Frequency : -
Voltage - Supply : -
Must Operate : 15 ~ 20AT
Must Release : -
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body

2250 in stock

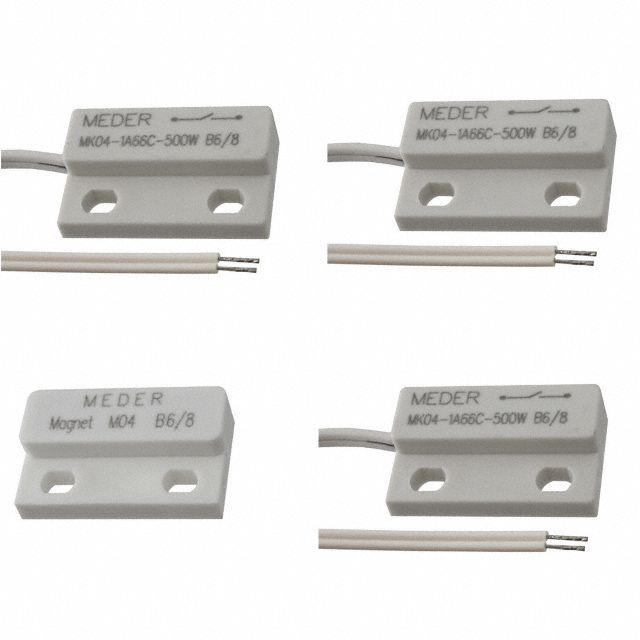

MK04-KIT

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : MK04
Part Status : Active
Sensor Type : Proximity, Magnetic
Sensing Range : 23 ~ 56 AT
Interface : -
Sensitivity : >1.70mT, >2.30mT, 2.70mT
Voltage - Supply : -
Embedded : No
Supplied Contents : Board(s), Cable(s), Accessories
Utilized IC / Part : MK04P-1A66B (2242661054), MK04P-1A66C (2243711054), MK04P-1A66D (2244711054)

6 in stock

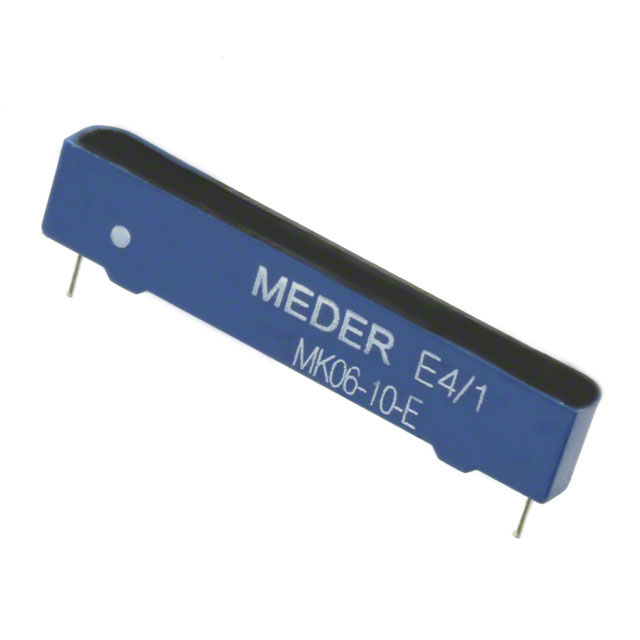

MK06-10-E

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO, Latching
Operate Range : 4 ~ 12mm
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 1.125" (28.58mm)
Size - Body : 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm)
Height Above Board : 0.225" (5.72mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)

589 in stock

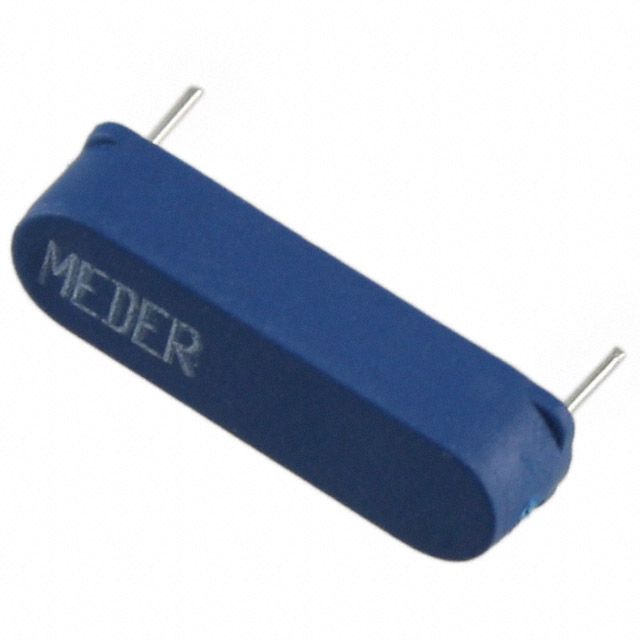

MK06-4-B

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.475" (12.06mm)
Size - Body : 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm)
Height Above Board : 0.130" (3.30mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)

615 in stock

MK06-4-C

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MK06
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.475" (12.06mm)
Size - Body : 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm)
Height Above Board : 0.130" (3.30mm)
Operating Temperature : -20°C ~ 85°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)

1087 in stock
