Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics

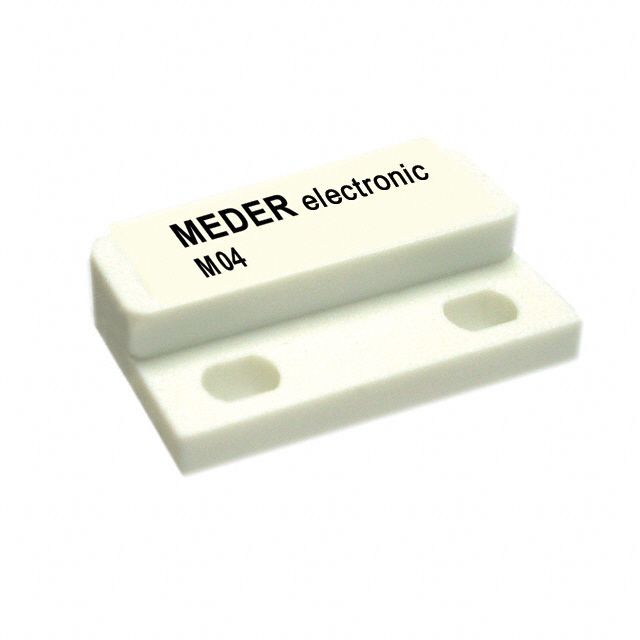

Series : M04
For Use With/Related Products : MK04
Housing Material : Polybutylene Terephthalate (PBT)
Material - Magnet : Alnico 5 (AlNiCo)
Package / Case : Flange Mount
Size : 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm)
Operating Temperature : 70°C (TA)
0
2017 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics

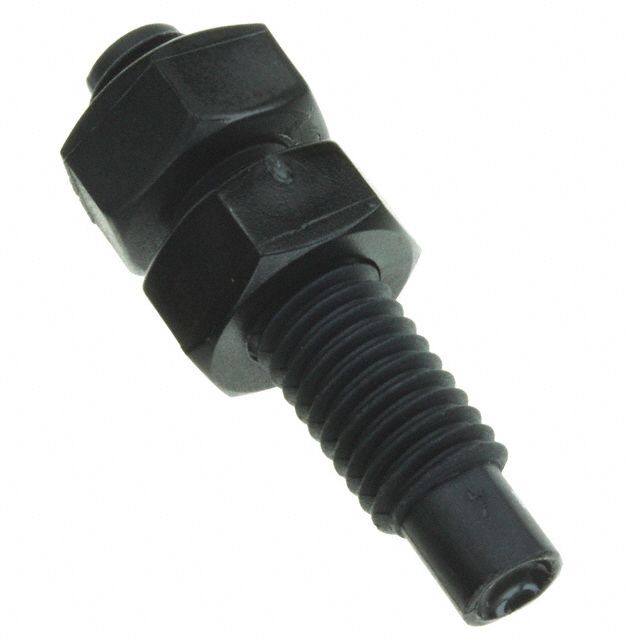

Series : M11
For Use With/Related Products : MK11/M8
Housing Material : Plastic
Material - Magnet : Alnico 5 (AlNiCo)
Package / Case : Cylinder, Threaded
Size : 0.315" Dia x 1.50" L (8.00mm x 38.0mm)
Operating Temperature : 70°C (TA)
0
225 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics

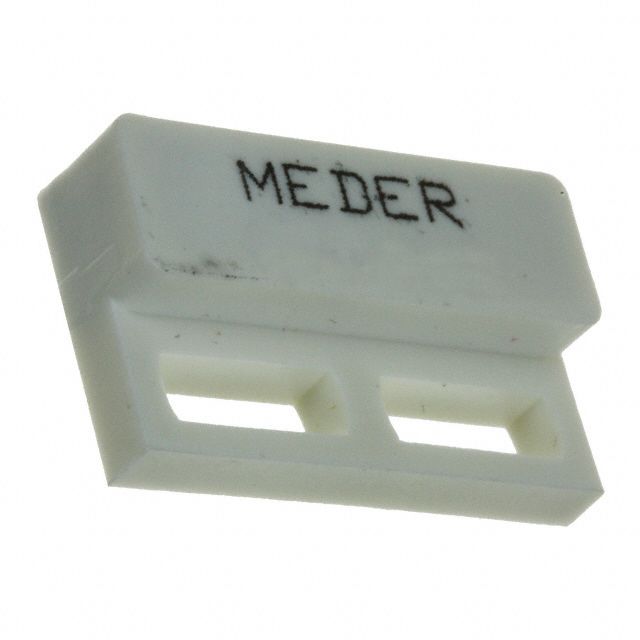

Series : M13
For Use With/Related Products : MK13
Housing Material : Polybutylene Terephthalate (PBT)
Material - Magnet : Alnico 5 (AlNiCo)
Package / Case : Flange Mount
Size : 0.906" L x 0.547" W x 0.232" H (23.0mm x 13.9mm x 5.90mm)
Operating Temperature : 70°C (TA)
0
541 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics

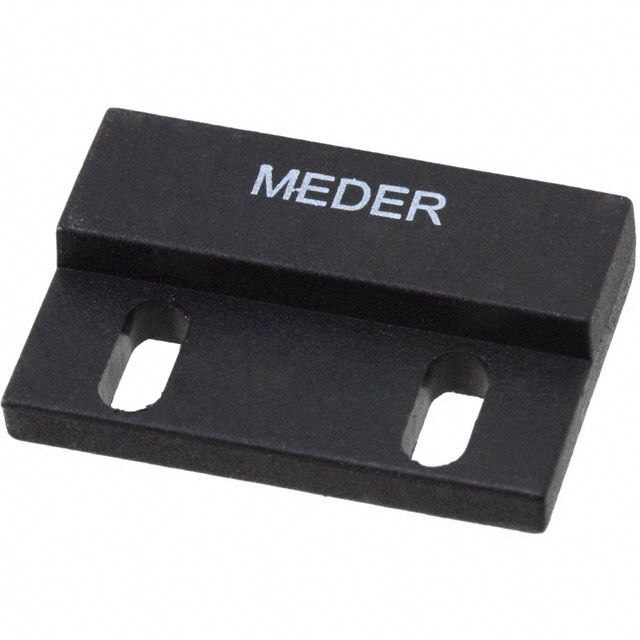

Series : M21
For Use With/Related Products : MK21
Housing Material : Polybutylene Terephthalate (PBT)
Material - Magnet : Alnico (AlNiCo)
Package / Case : Flange Mount
Size : 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm)
Operating Temperature : 150°C (TA)
0
259 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : M22
For Use With/Related Products : MK21
Housing Material : Polybutylene Terephthalate (PBT)
Material - Magnet : Alnico (AlNiCo)
Package / Case : Flange Mount
Size : 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm)
Operating Temperature : 150°C (TA)
0
2 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics

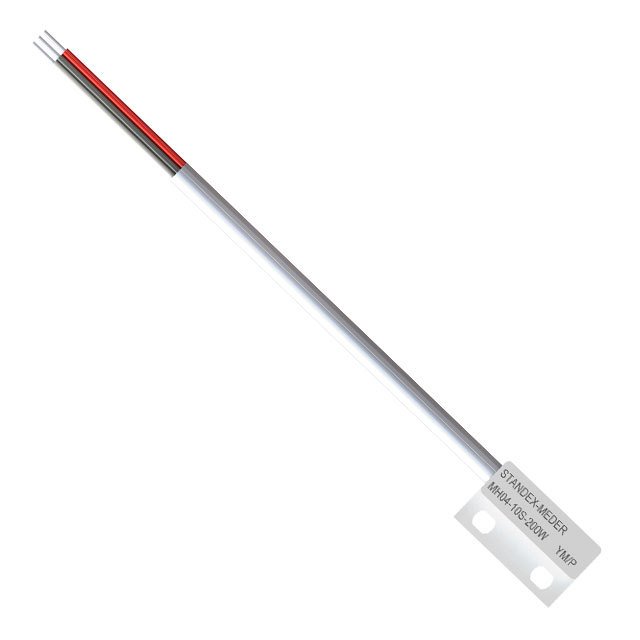

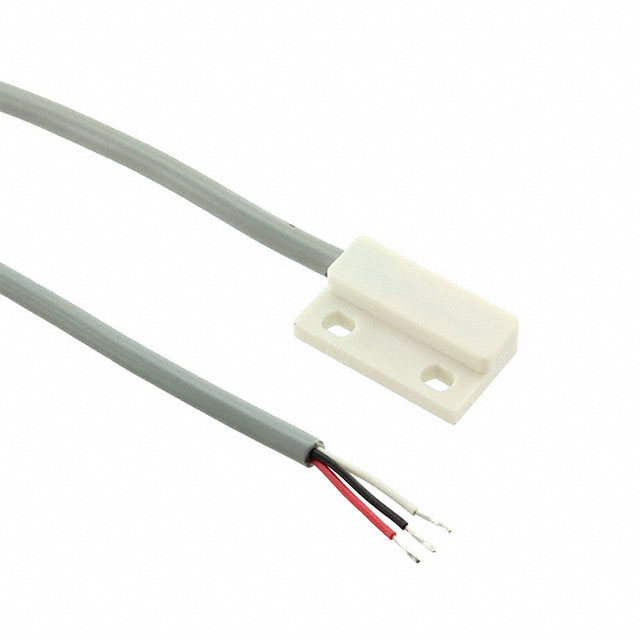

Series : MH04
Part Status : Active
Output Type : Open Collector
Type : Hall Effect Switch
Actuator Material : Magnet
Termination Style : Cable
Frequency : -
Voltage - Supply : 2.5 V ~ 3.5 V
Must Operate : 37G
Must Release : 31G
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : Flange Mount
0
158 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MH04
Part Status : Active
Output Type : Open Collector
Type : Hall Effect Latch
Actuator Material : Magnet
Termination Style : Cable
Frequency : -
Voltage - Supply : 3 V ~ 24 V
Must Operate : 22G
Must Release : -23G
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : Flange Mount
0
8 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MH04
Part Status : Active
Output Type : Open Collector
Type : Hall Effect Switch
Actuator Material : Magnet
Termination Style : Cable
Frequency : -
Voltage - Supply : 3 V ~ 24 V
Must Operate : 35G
Must Release : 25G
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : Flange Mount
0
143 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics

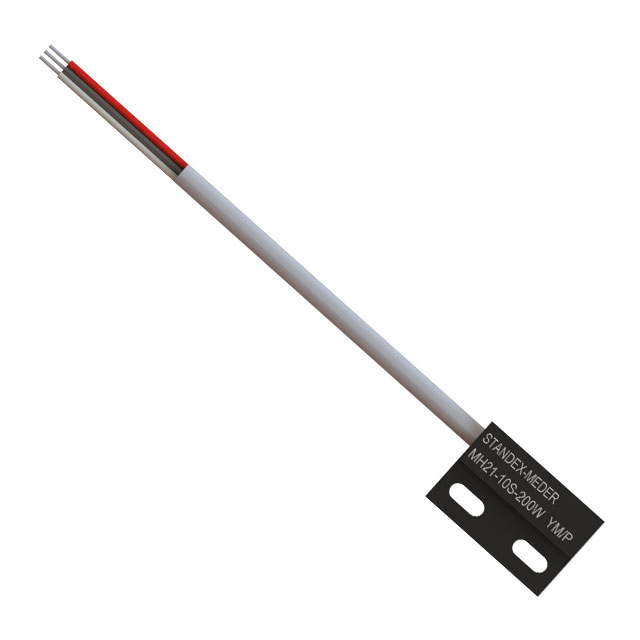

Series : MH21
Part Status : Active
Output Type : Logic
Type : Hall Effect Switch
Actuator Material : Magnet
Termination Style : Cable
Frequency : -
Voltage - Supply : 3 V ~ 24 V
Must Operate : 35G
Must Release : 25G
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : Flange Mount
0
55 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging

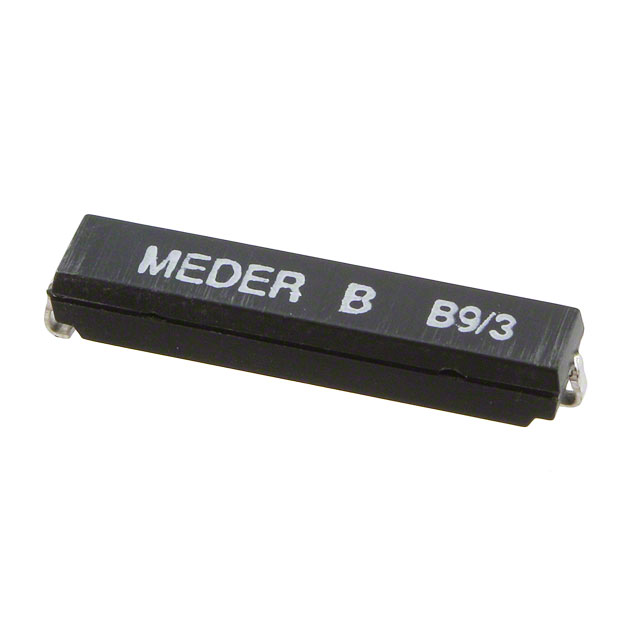

Series : MK01
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.740" (18.80mm)
Size - Body : 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm)
Height Above Board : 0.134" (3.40mm)
Operating Temperature : -20°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
800 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK01
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.740" (18.80mm)
Size - Body : 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm)
Height Above Board : 0.134" (3.40mm)
Operating Temperature : -20°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK01
Part Status : Active
Type : Molded Body
Circuit : SPDT
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 175V
Voltage - Switching DC : 175V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 1.5ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.740" (18.80mm)
Size - Body : 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm)
Height Above Board : 0.134" (3.40mm)
Operating Temperature : -20°C ~ 130°C
Capacitance : 1.5pF
Current - Carry : 1A (AC/DC)
0
4866 in stock
