Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : KT
Part Status : Active
Coil Type : Non Latching
Coil Current : 13.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 16 VDC
Turn Off Voltage (Min) : 2.9 VDC
Operate Time : -
Release Time : -
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 100°C
0
520 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : LI
Part Status : Active
Coil Type : Non Latching
Coil Current : 25.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 1.1ms
Release Time : 0.1ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
183 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : LI
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 17.5mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 0.8ms
Release Time : 0.4ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : LI
Part Status : Active
Coil Type : Non Latching
Coil Current : 17.5mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 1ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
1858 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : LI
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 1ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
452 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : LP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 21.7mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.7ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock

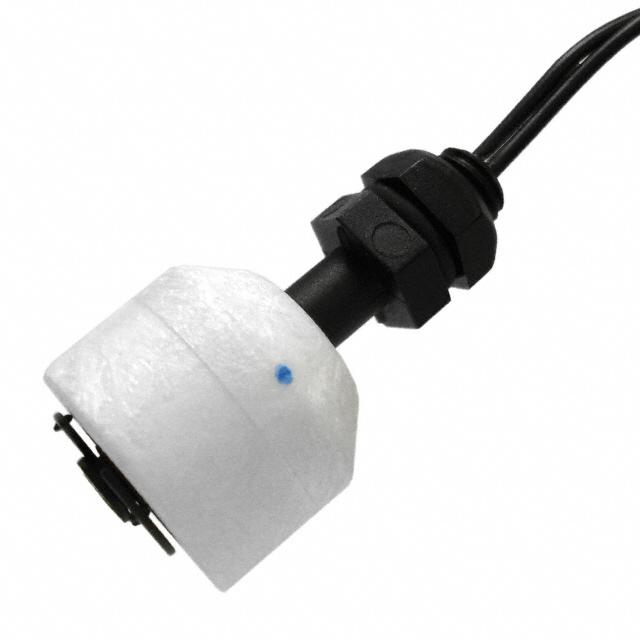

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : LS01
Part Status : Active
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NO
Current : 500mA
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Free Hanging
Material - Housing & Prism : Polyamide (PA)
Operating Temperature : -30°C ~ 70°C
Voltage Rating : 200V
0
84 in stock

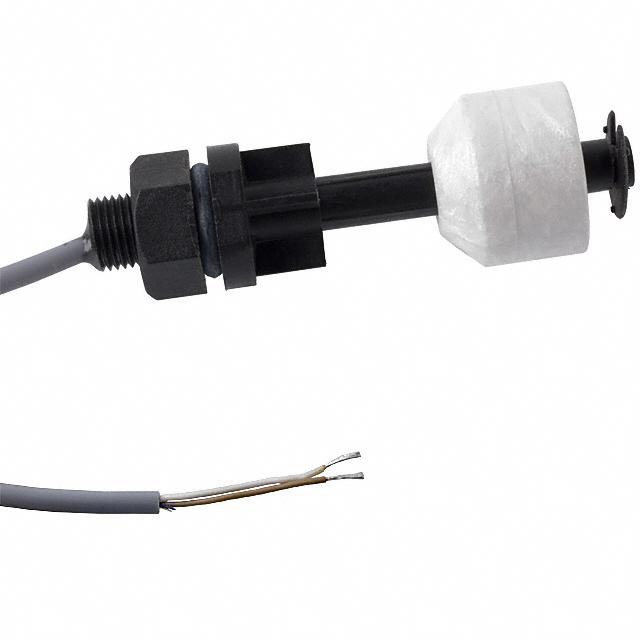

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : LS02
Part Status : Active
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NO
Current : 500mA
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Free Hanging
Material - Housing & Prism : Polyamide (PA)
Operating Temperature : -20°C ~ 90°C
Voltage Rating : 200V
0
45 in stock

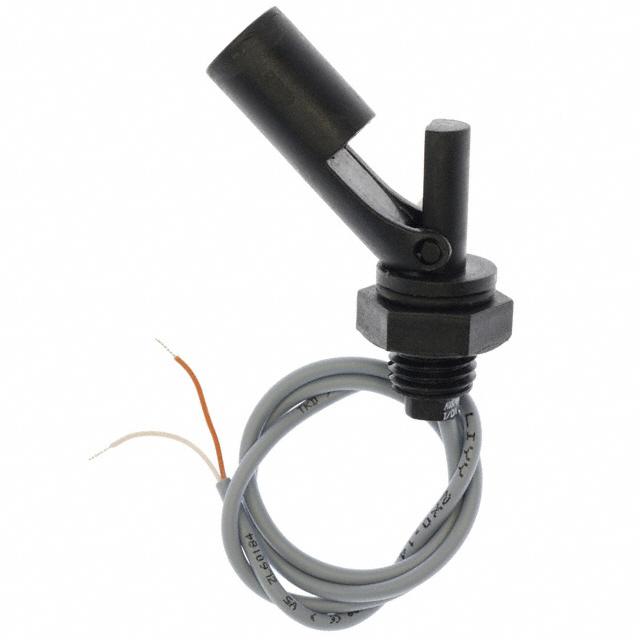

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : LS03
Part Status : Obsolete
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NO
Current : 500mA
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Panel Mount, M16x2 Thread
Material - Housing & Prism : Polypropylene (PP)
Operating Temperature : -
Voltage Rating : -
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : LS03
Part Status : Active
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NC/NO
Current : 500mA
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Male 1/2" (12.7mm) NPT
Material - Housing & Prism : Polyamide (PA)
Operating Temperature : -20°C ~ 90°C
Voltage Rating : 200V
0
49 in stock

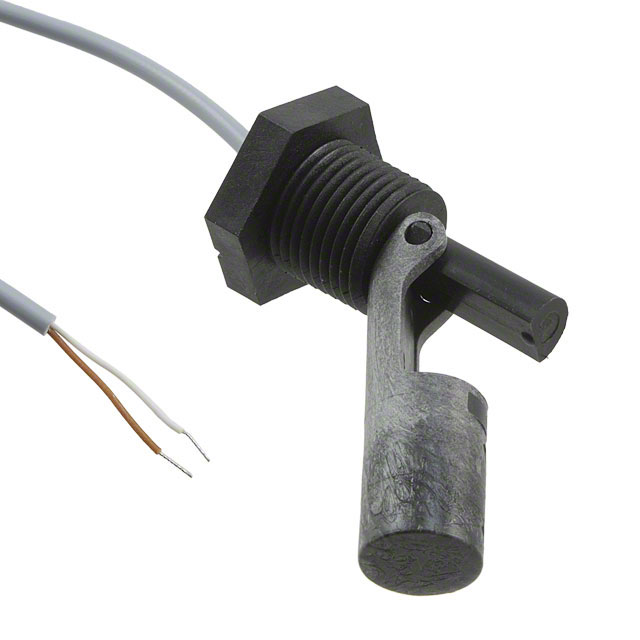

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : LS03
Part Status : Active
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NC/NO
Current : 500mA
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Panel Mount, M16x2 Thread
Material - Housing & Prism : Polyamide (PA)
Operating Temperature : -20°C ~ 90°C
Voltage Rating : 200V
0
117 in stock

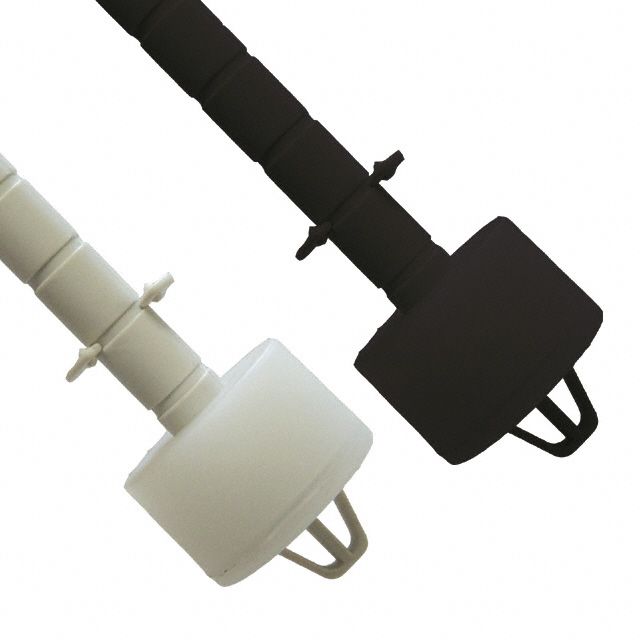

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : LS04
Part Status : Active
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NO
Current : 500mA
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Panel Mount, M10 Thread
Material - Housing & Prism : Polypropylene (PP)
Operating Temperature : -30°C ~ 80°C
Voltage Rating : 180V
0
100 in stock
