Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

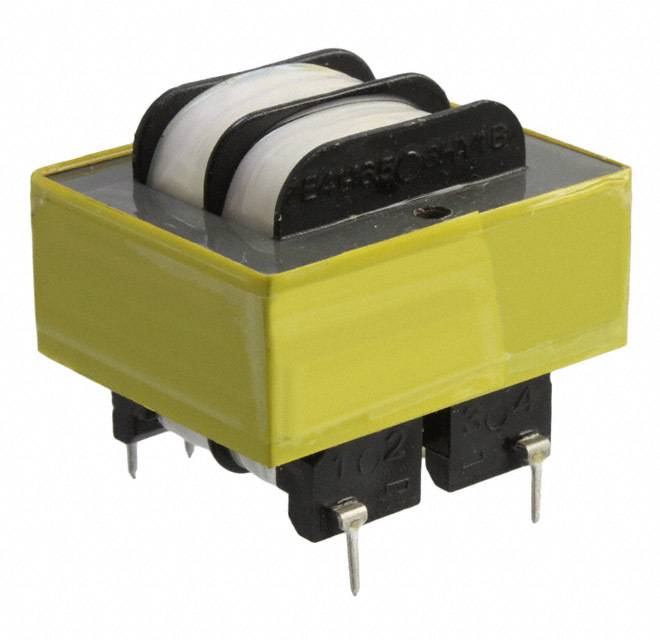

3FS-448 3FS-448

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 250mA, Series 125mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
41 in stock

3FS-510 3FS-510

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 2.4A, Series 1.2A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
80 in stock

3FS-512 3FS-512

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
271 in stock

3FS-516 3FS-516

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 1.6A, Series 800mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
43 in stock

3FS-520 3FS-520

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1.2A, Series 600mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1708 in stock

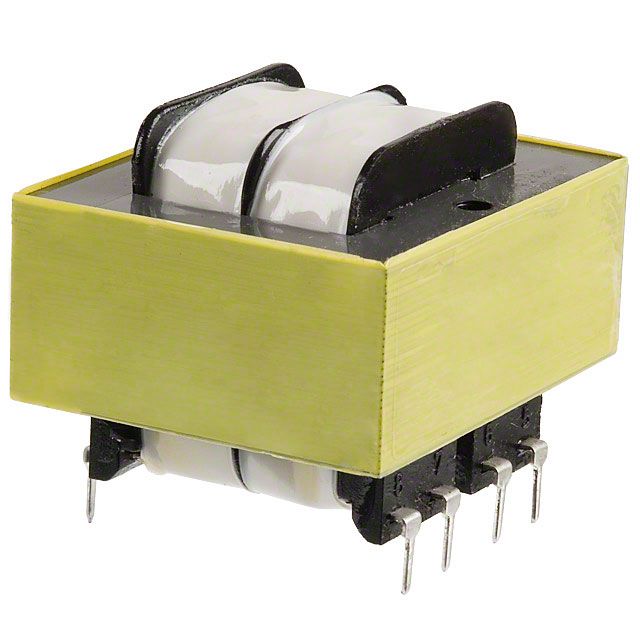

3FS-524 3FS-524

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
774 in stock

3FS-528 3FS-528

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
8696 in stock

3FS-536 3FS-536

Tamura
Manufacturer : Tamura
Series : 3FS-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
587 in stock

420AS04100 420AS04100

Tamura
Manufacturer : Tamura
Series : 420AS
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 4.5V
Current - Output (Max) : 1A
Power (Watts) : 4.5W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm)
Approvals : cULus
0
100 in stock

420AS06090 420AS06090

Tamura
Manufacturer : Tamura
Series : 420AS
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 6V
Current - Output (Max) : 900mA
Power (Watts) : 5.4W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm)
Approvals : cULus
0
100 in stock

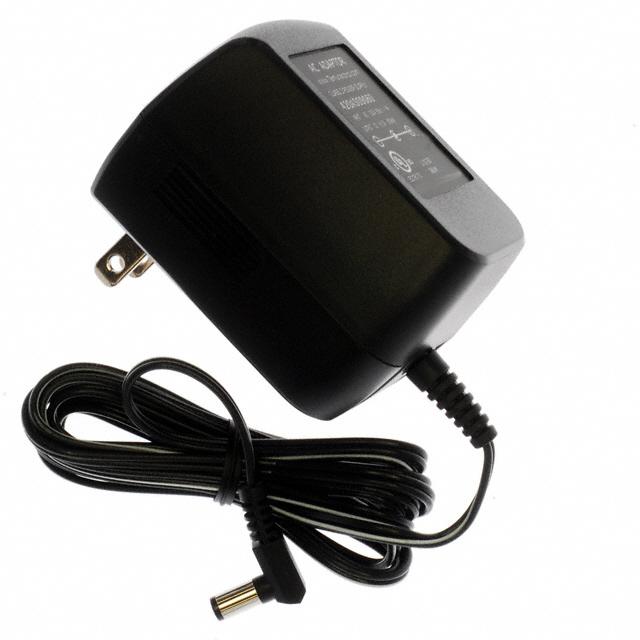

420AS09060 420AS09060

Tamura
Manufacturer : Tamura
Series : 420AS
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 600mA
Power (Watts) : 5.4W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm)
Approvals : cULus
0
100 in stock

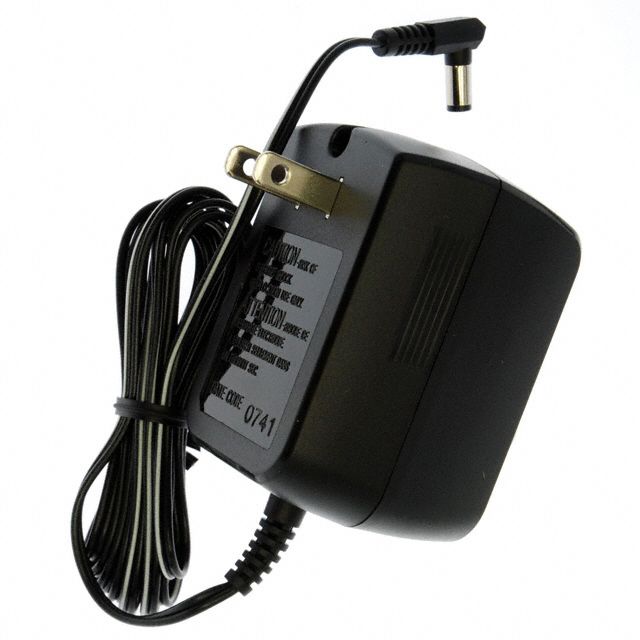

420AS12050 420AS12050

Tamura
Manufacturer : Tamura
Series : 420AS
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 12V
Current - Output (Max) : 500mA
Power (Watts) : 6W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm)
Approvals : cULus
0
100 in stock
