- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

3FS-324 3FS-324

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
2106 in stock

3FS-328 3FS-328

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 170mA, Series 85mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
3463 in stock

3FS-336 3FS-336

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 130mA, Series 65mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
18 in stock

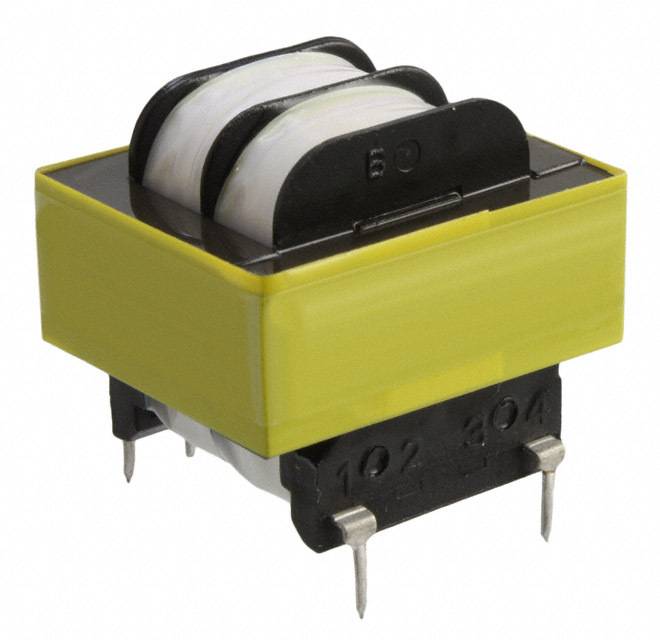

3FS-348 3FS-348

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 100mA, Series 50mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
93 in stock

3FS-356 3FS-356

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 90mA, Series 45mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
114 in stock

3FS-410 3FS-410

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 1.2A, Series 600mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
246 in stock

3FS-412 3FS-412

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
557 in stock

3FS-416 3FS-416

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 800mA, Series 400mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
177 in stock

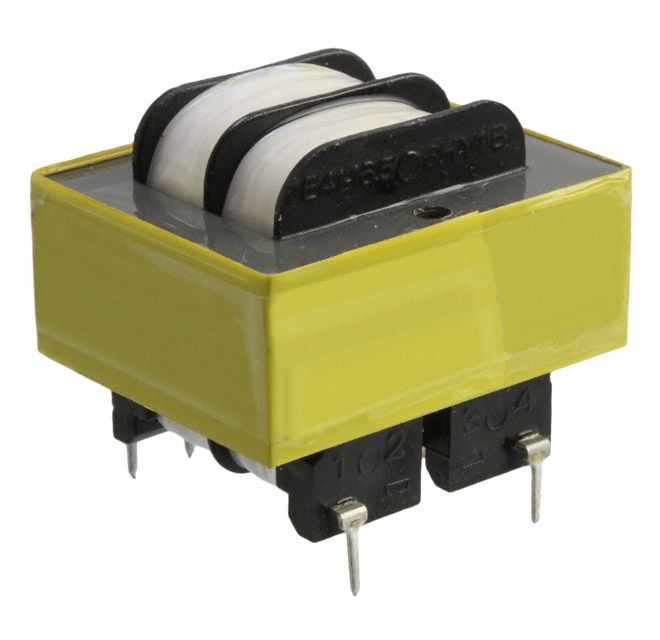

3FS-420 3FS-420

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
639 in stock

3FS-424 3FS-424

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
100 in stock

3FS-428 3FS-428

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
2215 in stock

3FS-436 3FS-436

Tamura
Manufacturer : Tamura
Series : 3FS-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 340mA, Series 170mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
100 in stock
