Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

3FL56-200 3FL56-200

Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 63.50mm L x 50.80mm W
Height - Seated (Max) : 27.05mm
Voltage - Isolation : 1500Vrms
Weight : -
0
100 in stock

3FL88-130 3FL88-130

Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 44V, Series 88V
Current - Output (Max) : Parallel 260mA, Series 130mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 63.50mm L x 50.80mm W
Height - Seated (Max) : 27.05mm
Voltage - Isolation : 1500Vrms
Weight : -
0
100 in stock

3FS-210 3FS-210

Tamura
Manufacturer : Tamura
Series : 3FS-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
449 in stock

3FS-212 3FS-212

Tamura
Manufacturer : Tamura
Series : 3FS-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 180mA, Series 90mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1789 in stock

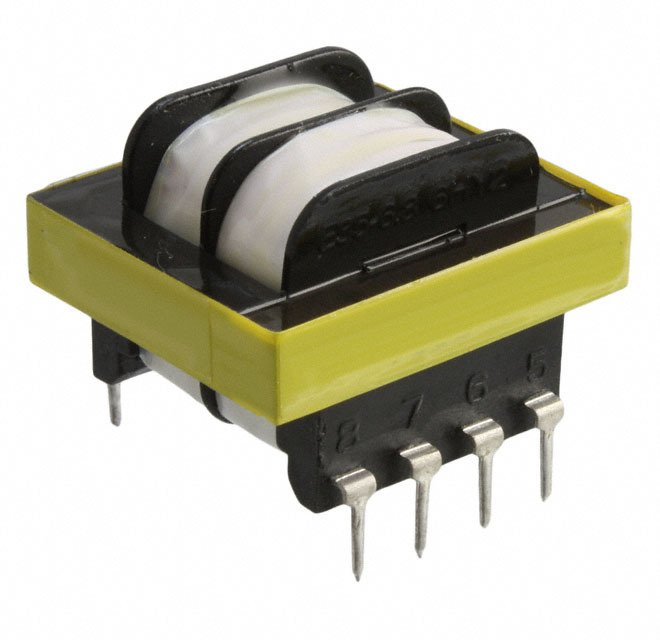

3FS-216 3FS-216

Tamura
Manufacturer : Tamura
Series : 3FS-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 140mA, Series 70mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
185 in stock

3FS-220 3FS-220

Tamura
Manufacturer : Tamura
Series : 3FS-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 110mA, Series 55mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1052 in stock

3FS-224 3FS-224

Tamura
Manufacturer : Tamura
Series : 3FS-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 90mA, Series 45mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
76 in stock

3FS-256 3FS-256

Tamura
Manufacturer : Tamura
Series : 3FS-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
90 in stock

3FS-310 3FS-310

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
2880 in stock

3FS-312 3FS-312

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
467 in stock

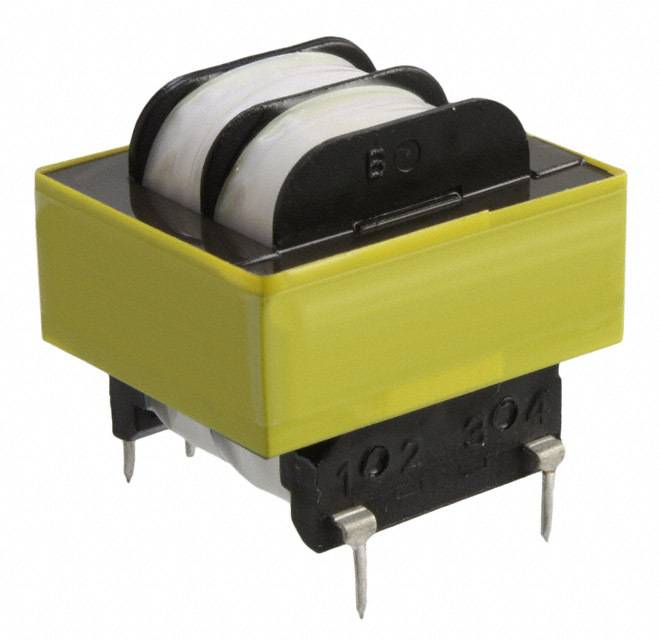

3FS-316 3FS-316

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 300mA, Series 150mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1120 in stock

3FS-320 3FS-320

Tamura
Manufacturer : Tamura
Series : 3FS-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 240mA, Series 120mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
50 in stock
