Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock

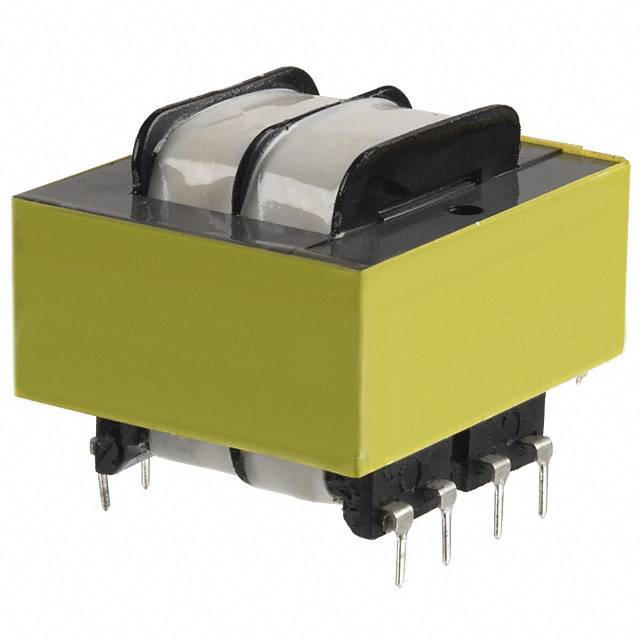

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
430 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
36 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 16.80mm
Voltage - Isolation : 1500Vrms
Weight : -
0
15 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 1.2A, Series 600mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 21.60mm
Voltage - Isolation : 1500Vrms
Weight : -
0
269 in stock

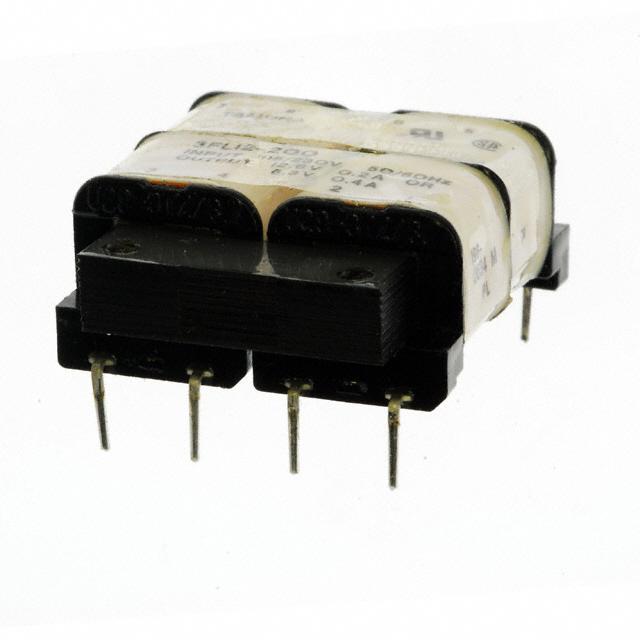

Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 16.80mm
Voltage - Isolation : 1500Vrms
Weight : -
0
9 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 950mA, Series 475mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 21.60mm
Voltage - Isolation : 1500Vrms
Weight : -
0
232 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 1.9A, Series 950mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 63.50mm L x 50.80mm W
Height - Seated (Max) : 27.05mm
Voltage - Isolation : 1500Vrms
Weight : -
0
100 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 300mA, Series 150mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 63.50mm L x 50.80mm W
Height - Seated (Max) : 27.05mm
Voltage - Isolation : 1500Vrms
Weight : -
0
100 in stock

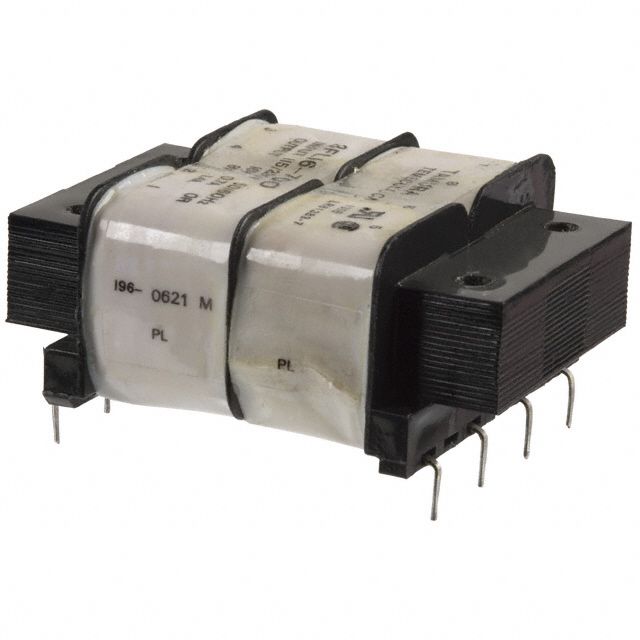

Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 21.60mm
Voltage - Isolation : 1500Vrms
Weight : -
0
167 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 1.4A, Series 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 63.50mm L x 50.80mm W
Height - Seated (Max) : 27.05mm
Voltage - Isolation : 1500Vrms
Weight : -
0
21 in stock

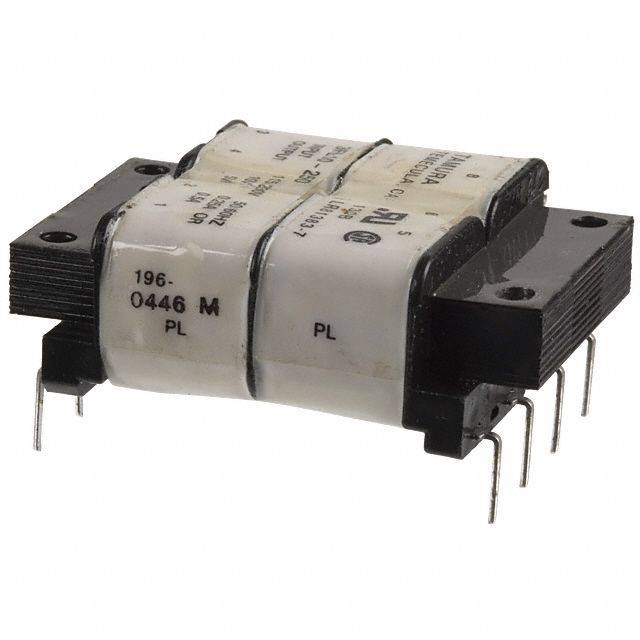

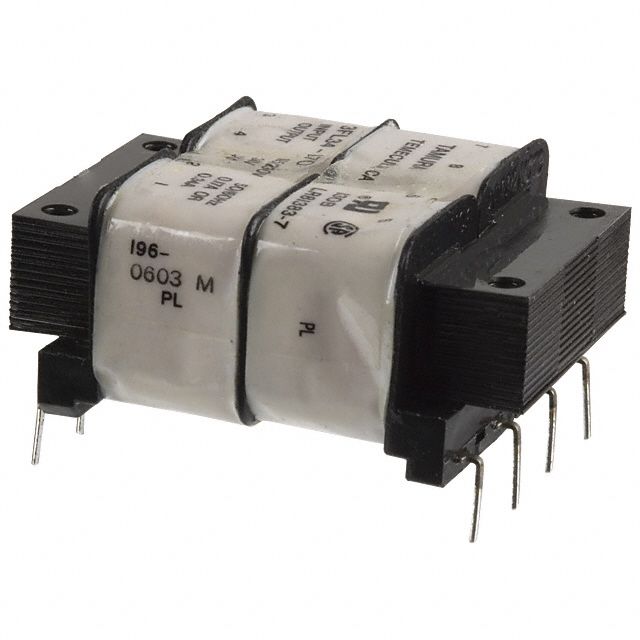

Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 250mA, Series 125mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 16.80mm
Voltage - Isolation : 1500Vrms
Weight : -
0
113 in stock
Tamura
Manufacturer : Tamura
Series : 3FL
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.60mm W
Height - Seated (Max) : 21.60mm
Voltage - Isolation : 1500Vrms
Weight : -
0
1 in stock
