Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

3FD-424 3FD-424

Tamura
Manufacturer : Tamura
Series : 3FD-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1705 in stock

3FD-428 3FD-428

Tamura
Manufacturer : Tamura
Series : 3FD-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1633 in stock

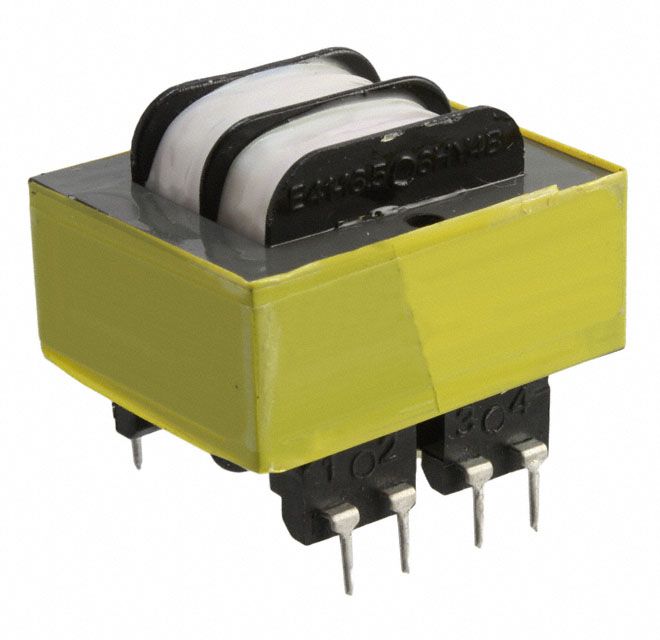

3FD-436 3FD-436

Tamura
Manufacturer : Tamura
Series : 3FD-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 340mA, Series 170mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 34.55mm
Voltage - Isolation : 2500Vrms
Weight : -
0
4701 in stock

3FD-448 3FD-448

Tamura
Manufacturer : Tamura
Series : 3FD-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 250mA, Series 125mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
63 in stock

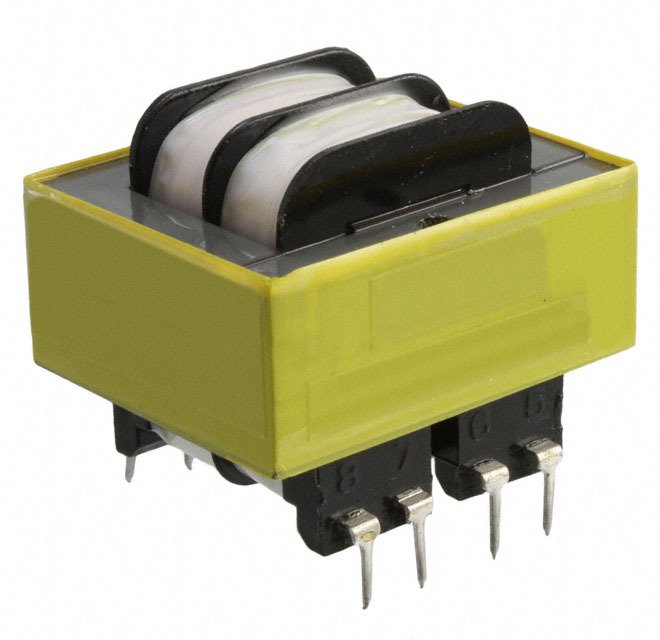

3FD-456 3FD-456

Tamura
Manufacturer : Tamura
Series : 3FD-4xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.50mm L x 34.83mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
335 in stock

3FD-510 3FD-510

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 2.4A, Series 1.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
28 in stock

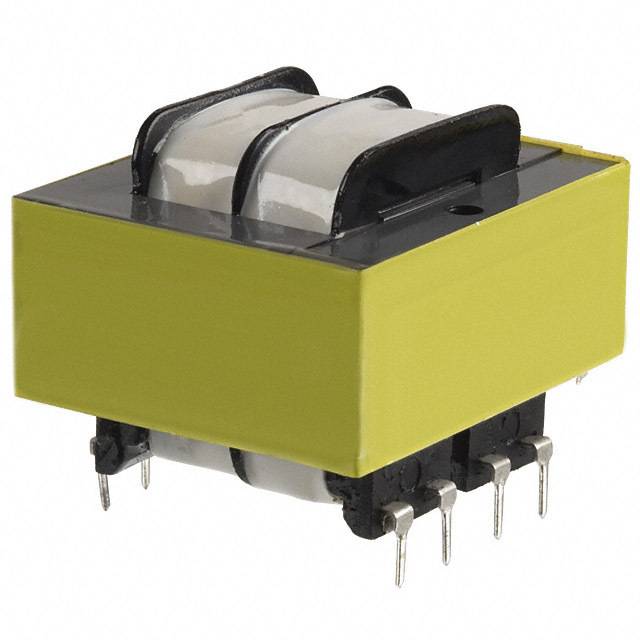

3FD-512 3FD-512

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
18 in stock

3FD-516 3FD-516

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 1.6A, Series 800mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1106 in stock

3FD-520 3FD-520

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1.2A, Series 600mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
626 in stock

3FD-524 3FD-524

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
854 in stock

3FD-528 3FD-528

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
4358 in stock

3FD-536 3FD-536

Tamura
Manufacturer : Tamura
Series : 3FD-5xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 48.50mm L x 41.52mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
112 in stock
