Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock
Tamura
Manufacturer : Tamura
Series : 318AS
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 18V
Current - Output (Max) : 200mA
Power (Watts) : 3.6W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm)
Approvals : cULus
0
100 in stock

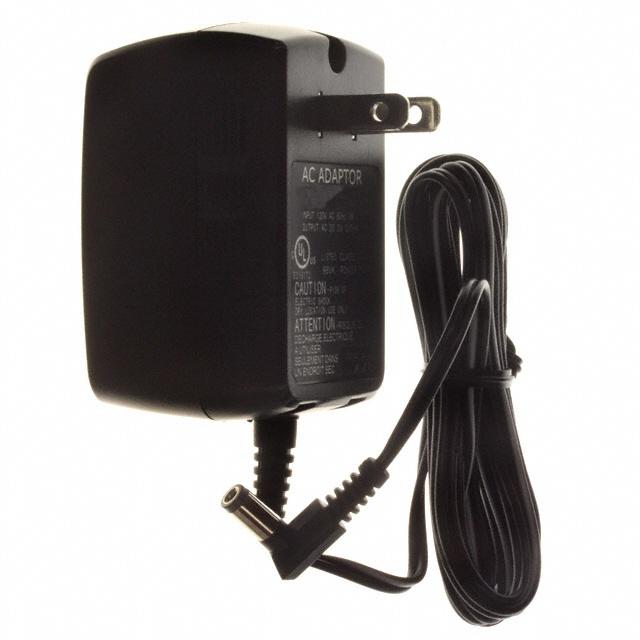

Tamura
Manufacturer : Tamura
Series : 318AS
Part Status : Obsolete
Voltage - Output : 20VAC
Current - Output (Max) : 225mA
Power (Watts) : 5W
No Load Power Consumption : -
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 1.69" L x 1.81" W x 2.76" H (43.0mm x 46.0mm x 70.0mm)
Approvals : cULus
0
100 in stock
Tamura
Manufacturer : Tamura
Series : 318AS
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 24V
Current - Output (Max) : 150mA
Power (Watts) : 3.6W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm)
Approvals : cULus
0
100 in stock

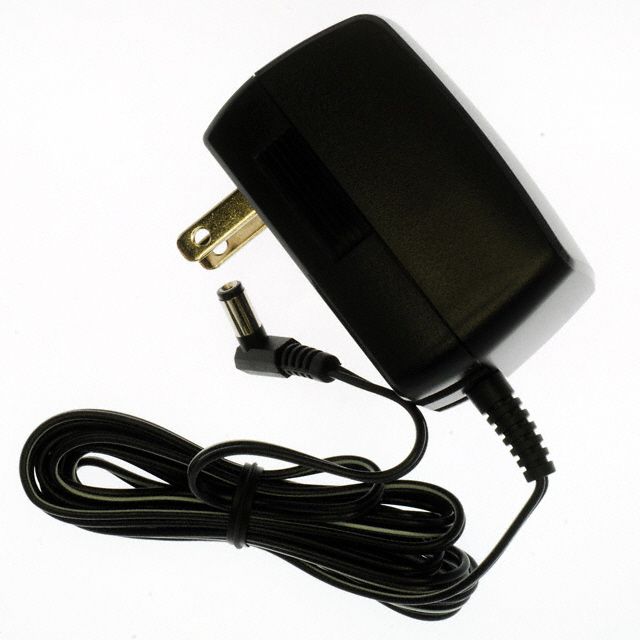

Tamura
Manufacturer : Tamura
Series : 318AS
Part Status : Obsolete
Voltage - Output : 24VAC
Current - Output (Max) : 200mA
Power (Watts) : 5W
No Load Power Consumption : -
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Size / Dimension : 1.69" L x 1.81" W x 2.76" H (43.0mm x 46.0mm x 70.0mm)
Approvals : cULus
0
100 in stock

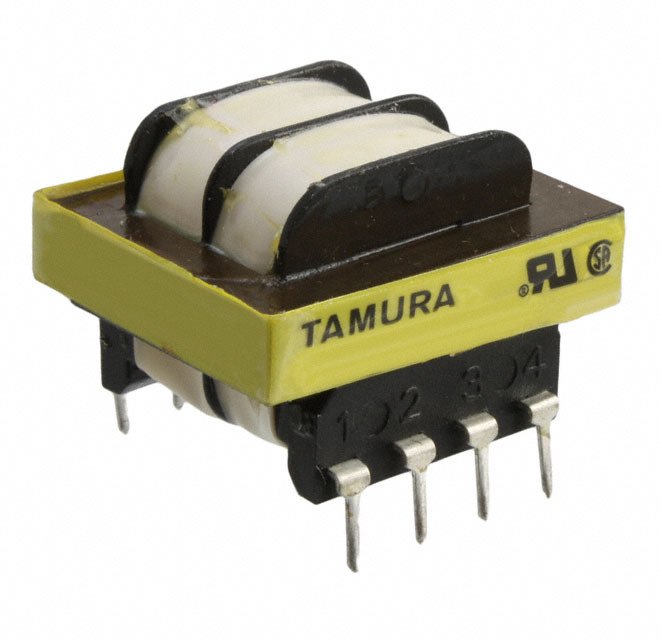

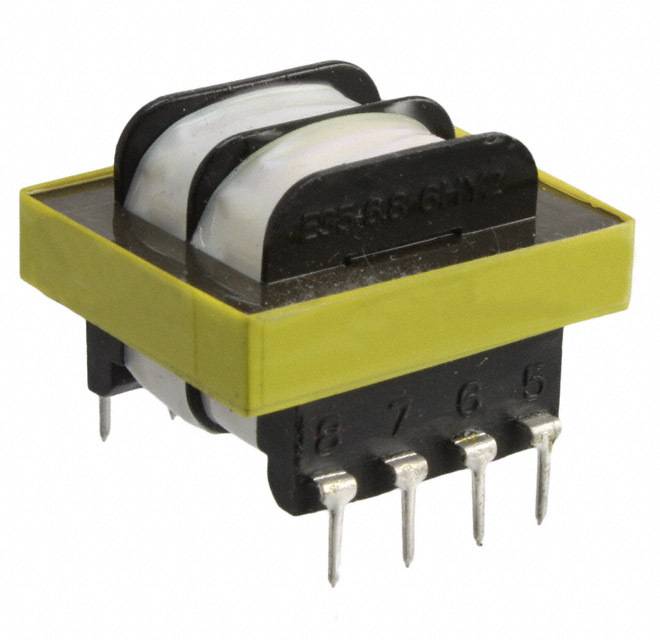

Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
210 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 180mA, Series 90mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
11610 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 140mA, Series 70mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
3288 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 110mA, Series 55mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 25.40mm
Voltage - Isolation : 2500Vrms
Weight : -
0
630 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 90mA, Series 45mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
2423 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 46mA, Series 23mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
221 in stock
Tamura
Manufacturer : Tamura
Series : 3FD-2xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 2500Vrms
Weight : -
0
224 in stock

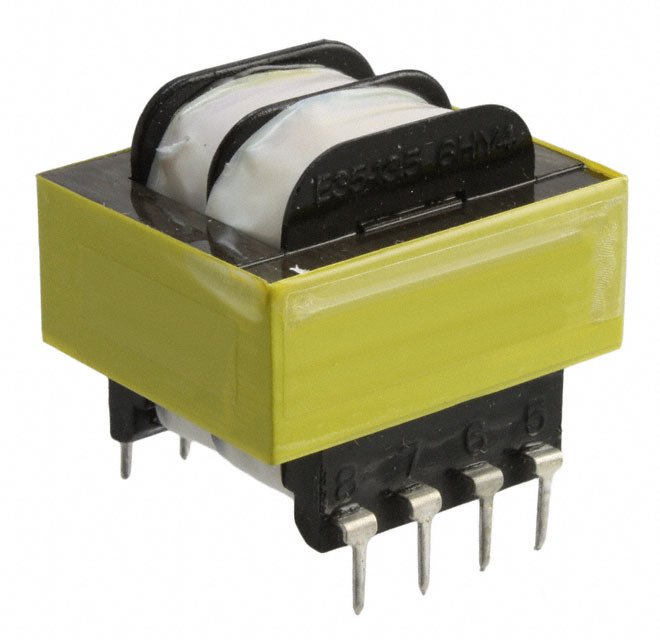

Tamura
Manufacturer : Tamura
Series : 3FD-3xx
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.56mm L x 31.00mm W
Height - Seated (Max) : 32.10mm
Voltage - Isolation : 2500Vrms
Weight : -
0
1479 in stock
