Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

MA105.C.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Hercules
Part Status : Discontinued at
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Dome
Number of Bands : 2
VSWR : 3.5
Return Loss : -14dB, -25dB
Gain : 3.3dB, 4dB
Power - Max : 10W
Features : LNA, Filter
Termination : Connector, SMA Male
Ingress Protection : IP69K
Mounting Type : Panel Mount
Height (Max) : 1.122" (28.50mm)
Applications : CDMA, GPS, GSM, UMTS

1 in stock

MA106.C.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.94GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Dome
Number of Bands : 2
VSWR : 3.5
Return Loss : -25dB
Gain : 4dBi
Power - Max : 10W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP69K
Mounting Type : Panel Mount
Height (Max) : 1.122" (28.50mm)
Applications : GLONASS, GPS

96 in stock

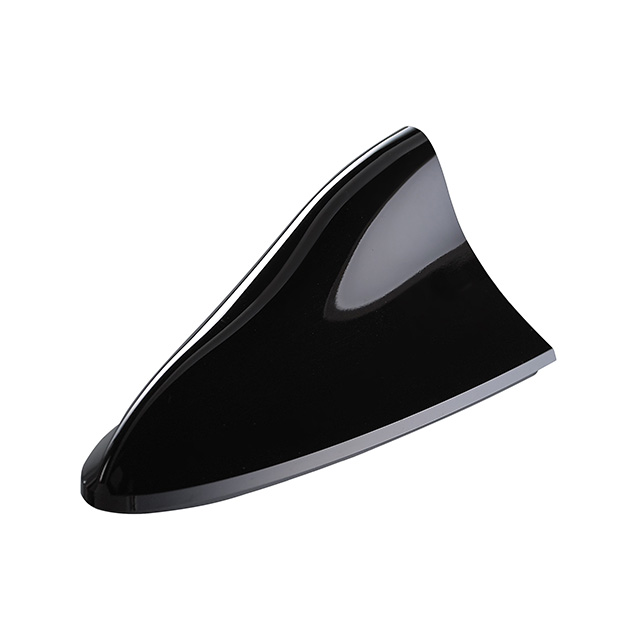

MA1060.A.LBCT.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -

9 in stock

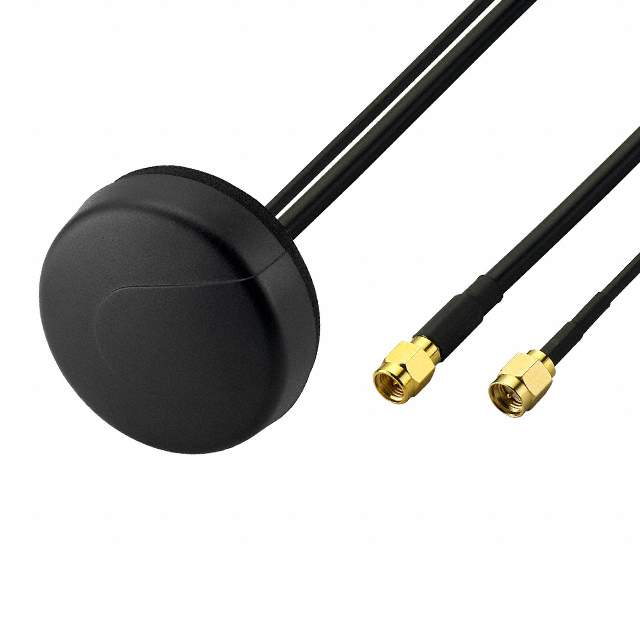

MA111.C.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Ultima
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.574GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz
Antenna Type : Dome
Number of Bands : 7
VSWR : 2.5, 2, 2, 3.5, 3, 3
Return Loss : -
Gain : 1.5dBi, 3dBi, -1.4dB, -1.3dBi, 2dBi, 4dBi, 2.5dBi
Power - Max : -
Features : LNA, Filter
Termination : Cable (3M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 0.772" (19.60mm)
Applications : CDMA, GLONASS, GPS, GSM, UMTS

199 in stock

MA1130.A.LBICGT.002

Taoglas

7 in stock

MA120.A.QP.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Hercules
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 450MHz, 868MHz
Frequency Range : -
Antenna Type : Dome
Number of Bands : 2
VSWR : -
Return Loss : -10dB
Gain : 3.91dBi, 1.11dBi
Power - Max : 5W
Features : -
Termination : Cable (1M) - SMA Male (2)
Ingress Protection : IP67, IP69K
Mounting Type : Panel Mount
Height (Max) : 1.122" (28.50mm)
Applications : -

88 in stock

MA130.A.LP.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Hercules
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 868MHz, 1.575GHz
Frequency Range : 868MHz, 1.574GHz ~ 1.606GHz
Antenna Type : Dome
Number of Bands : 2
VSWR : 2
Return Loss : -10dB
Gain : 4.51dBi
Power - Max : 5W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP69K
Mounting Type : Panel Mount
Height (Max) : 1.122" (28.50mm)
Applications : GLONASS, GPS

54 in stock

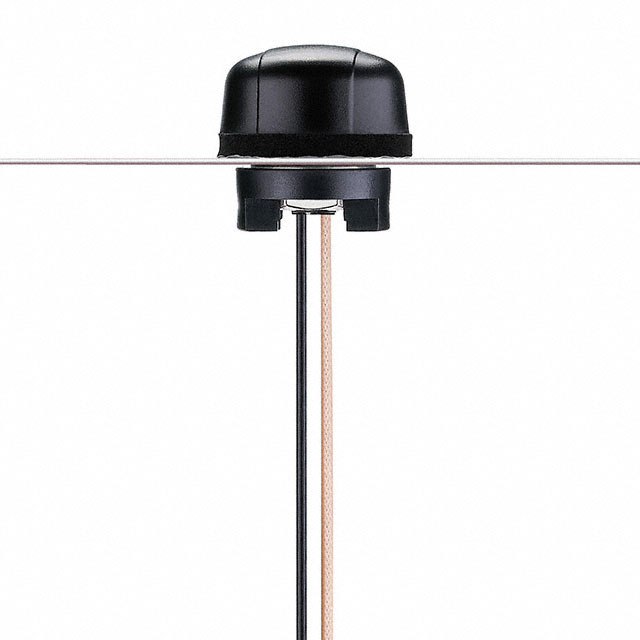

MA131.A.LK.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Hercules
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 915MHz, 1.575GHz, 1.602GHz
Frequency Range : 902MHz ~ 928MHz, 1.574GHz ~ 1.606GHz
Antenna Type : Dome
Number of Bands : 3
VSWR : 2
Return Loss : -10dB, -32.19dB, -24.77dB
Gain : 0.83dB, -1.4dBi, -1.3dBi
Power - Max : 5W
Features : LNA, Filter
Termination : Cable (200mm) - SMA Male (2)
Ingress Protection : IP67, IP69K
Mounting Type : Panel Mount
Height (Max) : 1.122" (28.50mm)
Applications : GLONASS, GPS

116 in stock

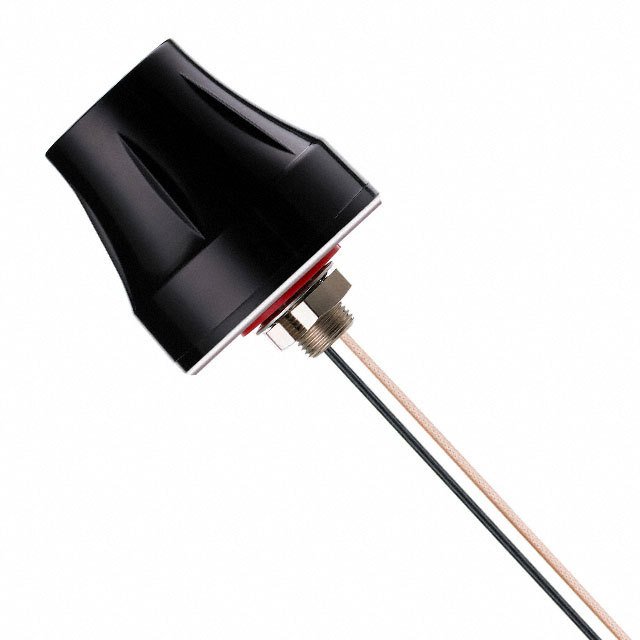

MA140.A.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Olympian
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.575GHz, 1.602GHz, 2.1GHz, 2.65GHz
Frequency Range : 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.8GHz
Antenna Type : Dome
Number of Bands : 5
VSWR : 3, 1.5, 1.5, 3, 3
Return Loss : -
Gain : 1.58dBi, 2dBic 2.7dBi, 1.11dBi
Power - Max : 5W
Features : LNA, Filter
Termination : Cable (1M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.890" (48.00mm)
Applications : 2G, 3G, 4G, GLONASS, GPS, LTE

445 in stock

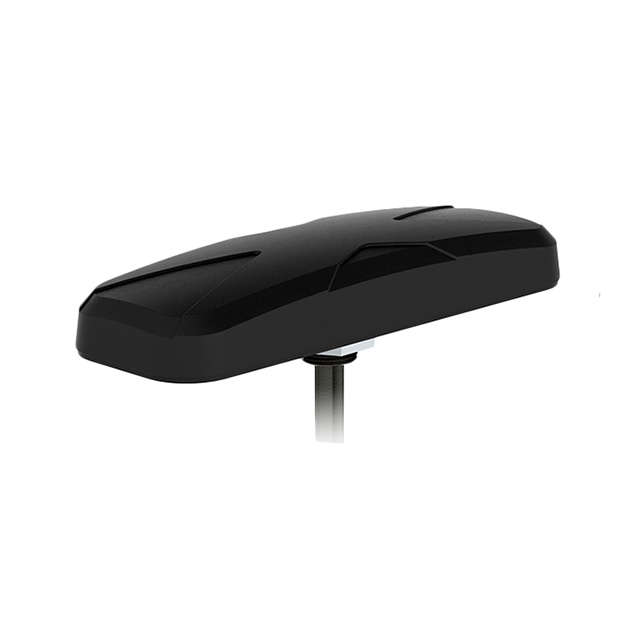

MA170.A.BI.001

Taoglas

100 in stock

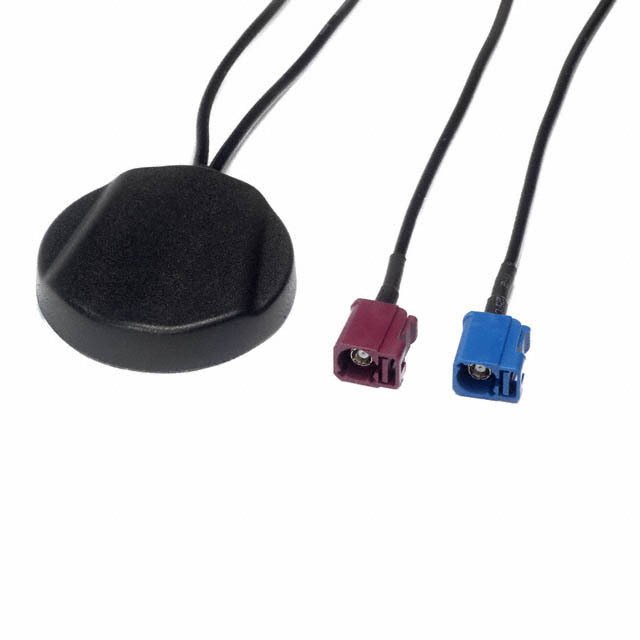

MA203.A.AB.045

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stingray
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Module
Number of Bands : 1
VSWR : 2
Return Loss : -15dB
Gain : 4dBic
Power - Max : -
Features : LNA
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.425" (10.80mm)
Applications : CDMA, GPS, GSM, UMTS

18 in stock

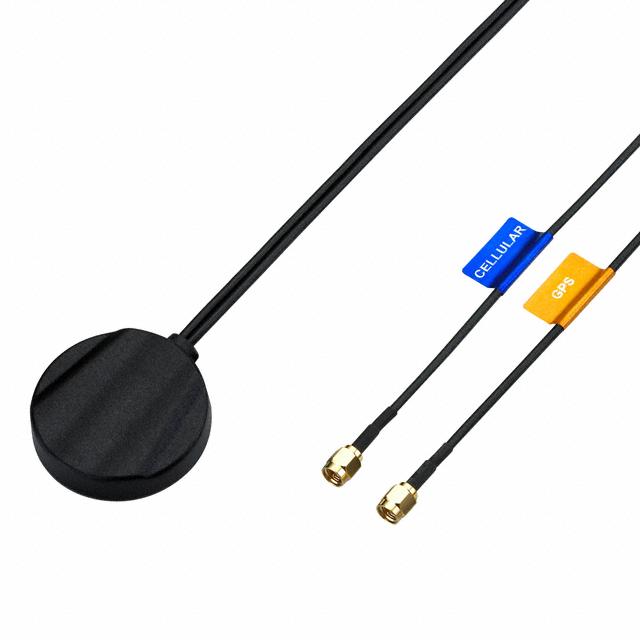

MA203W.AB.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stingray
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Module
Number of Bands : 5
VSWR : 1.92
Return Loss : -10dB
Gain : -3dB
Power - Max : -
Features : LNA
Termination : Cable (3M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.465" (11.80mm)
Applications : CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS

261 in stock
