Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

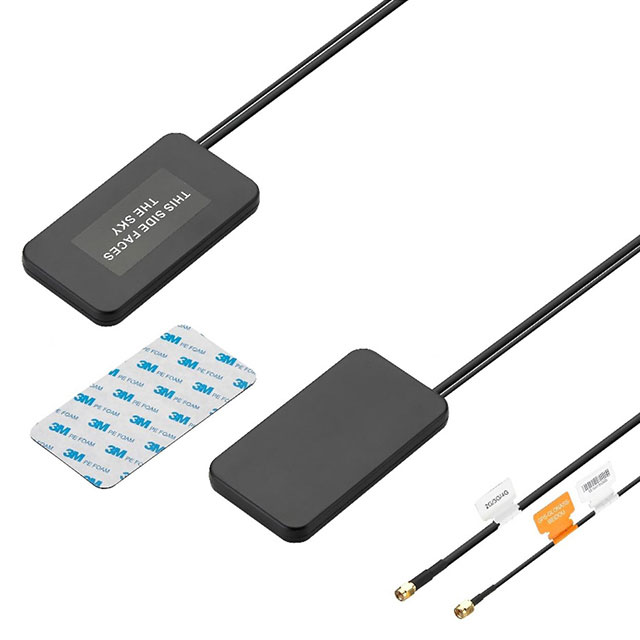

MA252.A.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz
Frequency Range : 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 5
VSWR : 3, 2
Return Loss : -10dB, -6dB
Gain : 28dBi
Power - Max : 5W
Features : LNA, Filter
Termination : Cable (2M) - SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.551" (14.00mm)
Applications : BEIDOU, GLONASS, GPS, LTE

103 in stock

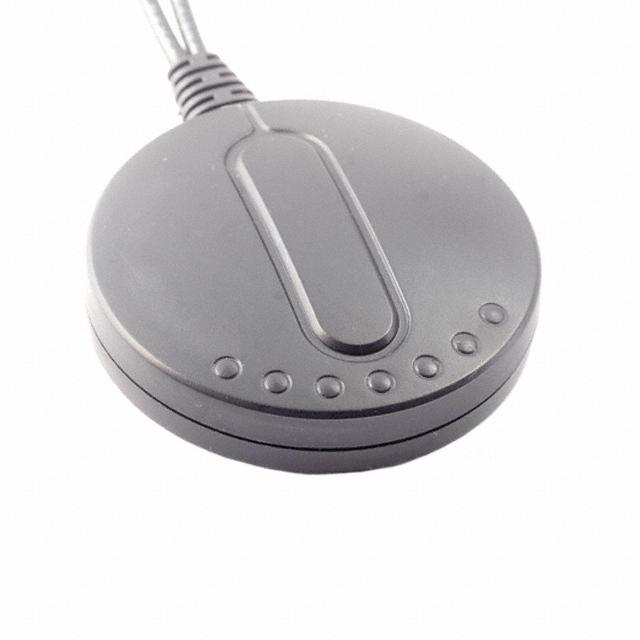

MA301.A.AB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.4GHz
Frequency Range : 824MHz ~ 1.99GHz
Antenna Type : Module
Number of Bands : 1
VSWR : 1.92
Return Loss : -
Gain : 28dBic
Power - Max : -
Features : LNA
Termination : Connector, SMA Male
Ingress Protection : IP65
Mounting Type : Adhesive
Height (Max) : 0.681" (17.30mm)
Applications : CDMA, GPS, GSM, UMTS

266 in stock

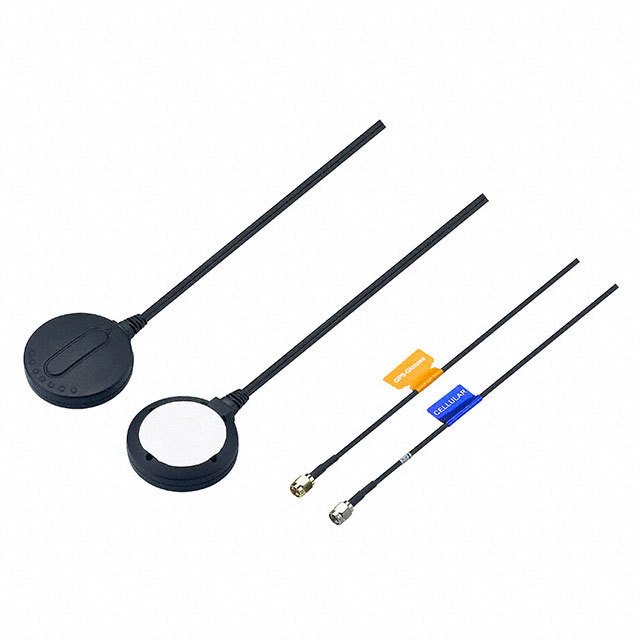

MA303.A.LB.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.85GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Puck
Number of Bands : 2
VSWR : -
Return Loss : -5dB
Gain : 1.36dBi
Power - Max : 5W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP65
Mounting Type : Magnetic
Height (Max) : 0.661" (16.80mm)
Applications : GLONASS, GPS

111 in stock

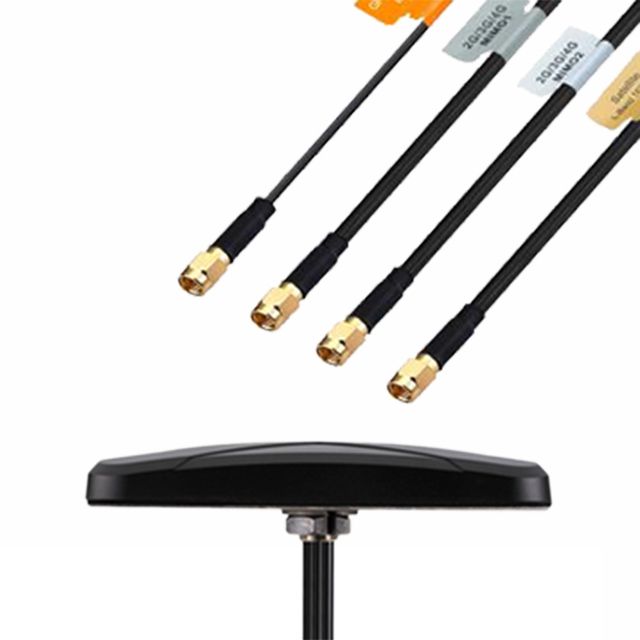

MA410.A.LBIJ.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : Storm
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz
Antenna Type : Flat Bar
Number of Bands : 11
VSWR : 2, 3.5
Return Loss : -10dB
Gain : 3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi
Power - Max : -
Features : LNA, Filter
Termination : Cable (1M) - SMA Male (4)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.219" (30.95mm)
Applications : Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS

192 in stock

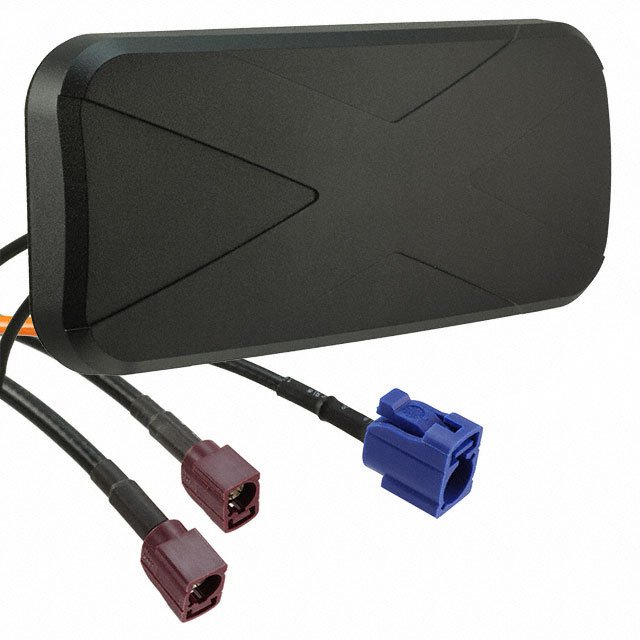

MA411.A.LBI.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.575GHz, 1.94GHz, 2.59GHz, 3.45GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz
Antenna Type : Module
Number of Bands : 4
VSWR : 2
Return Loss : -10dB
Gain : 4dBi
Power - Max : -
Features : -
Termination : Connector, Fakra
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.219" (30.95mm)
Applications : BEIDOU, GLONASS, GPS, LTE

78 in stock

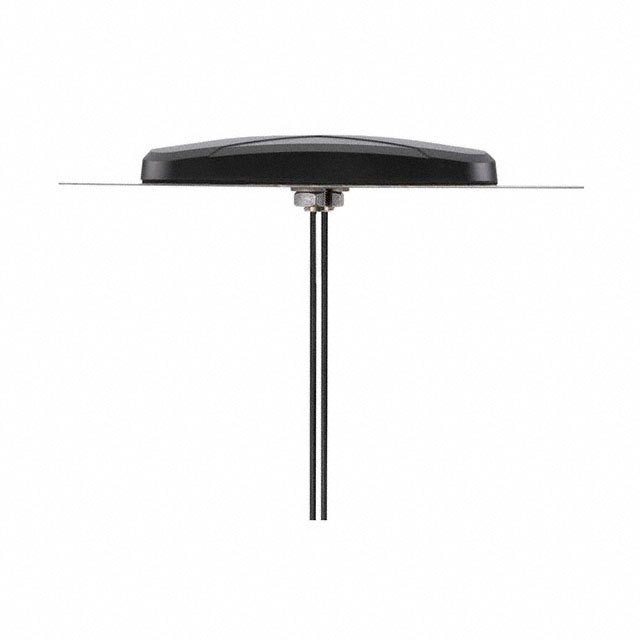

MA412.A.BI.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.9GHz, 2.6GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz
Antenna Type : Dome
Number of Bands : 3
VSWR : 3.5
Return Loss : -
Gain : 8.1dBi
Power - Max : -
Features : -
Termination : Connector, Fakra
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.220" (31.00mm)
Applications : LTE

25 in stock

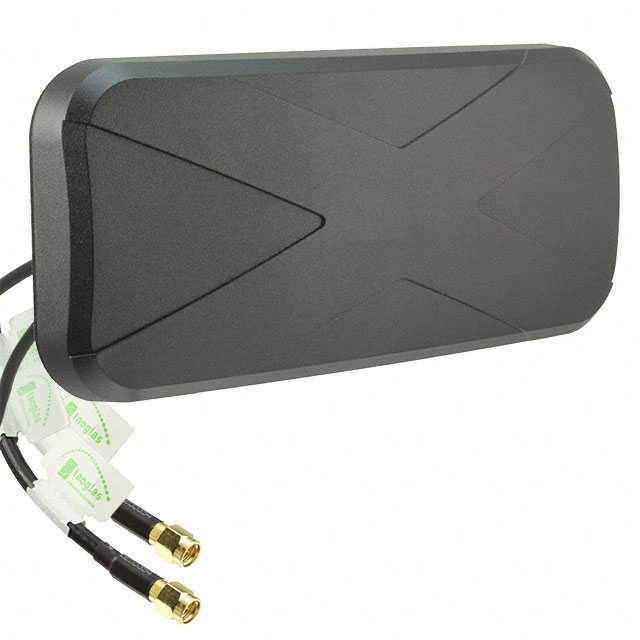

MA412.A.BI.003

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.94GHz, 2.5GHz, 3.5GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz
Antenna Type : Dome
Number of Bands : 4
VSWR : 3.5
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.220" (31.00mm)
Applications : LTE

331 in stock

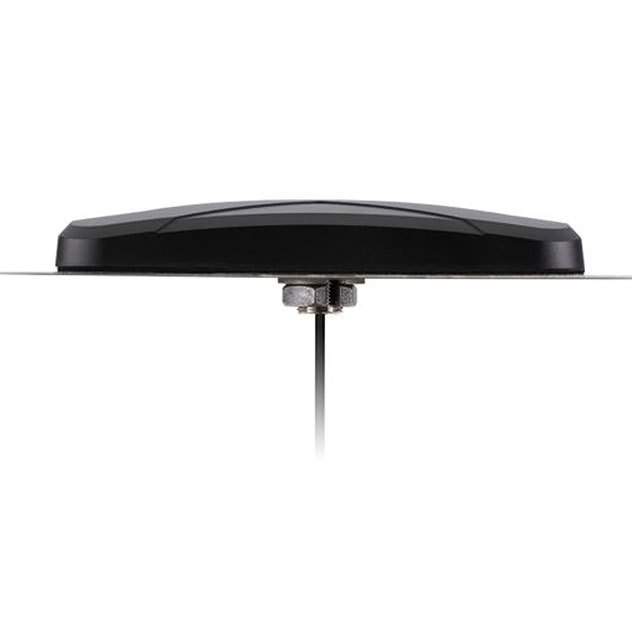

MA413.A.B.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.94GHz, 2.5GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type : Dome
Number of Bands : 3
VSWR : 3
Return Loss : -
Gain : 8dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.219" (30.95mm)
Applications : LTE

17 in stock

MA413.A.B.003

Taoglas

63 in stock

MA413.A.B.004

Taoglas

115 in stock

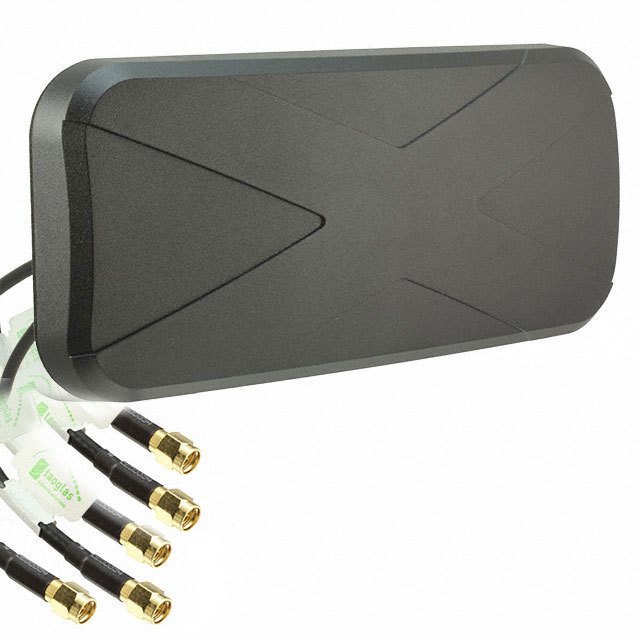

MA450.K.LBICG.003

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Storm
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz
Antenna Type : Flat Bar
Number of Bands : 7
VSWR : 2
Return Loss : -10dB
Gain : 4.4dBi
Power - Max : -
Features : -
Termination : Connector, RP-SMA Male, SMA Male
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.219" (30.95mm)
Applications : BEIDOU, GLONASS, GPS, LTE, WLAN

12 in stock

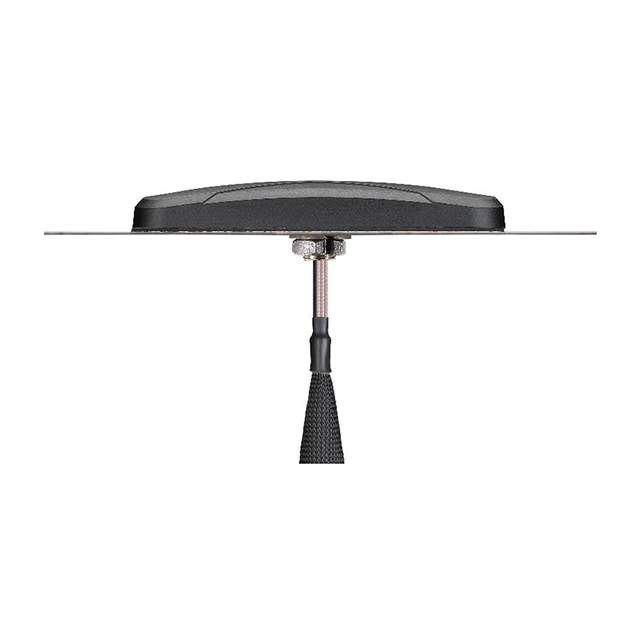

MA450.K.LBICG.004

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Storm
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz
Antenna Type : Flat Bar
Number of Bands : 6
VSWR : 2
Return Loss : -
Gain : 6.8dBi
Power - Max : -
Features : LNA, Filter
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.220" (31.00mm)
Applications : BEIDOU, GLONASS, GPS, LTE, WLAN

22 in stock
